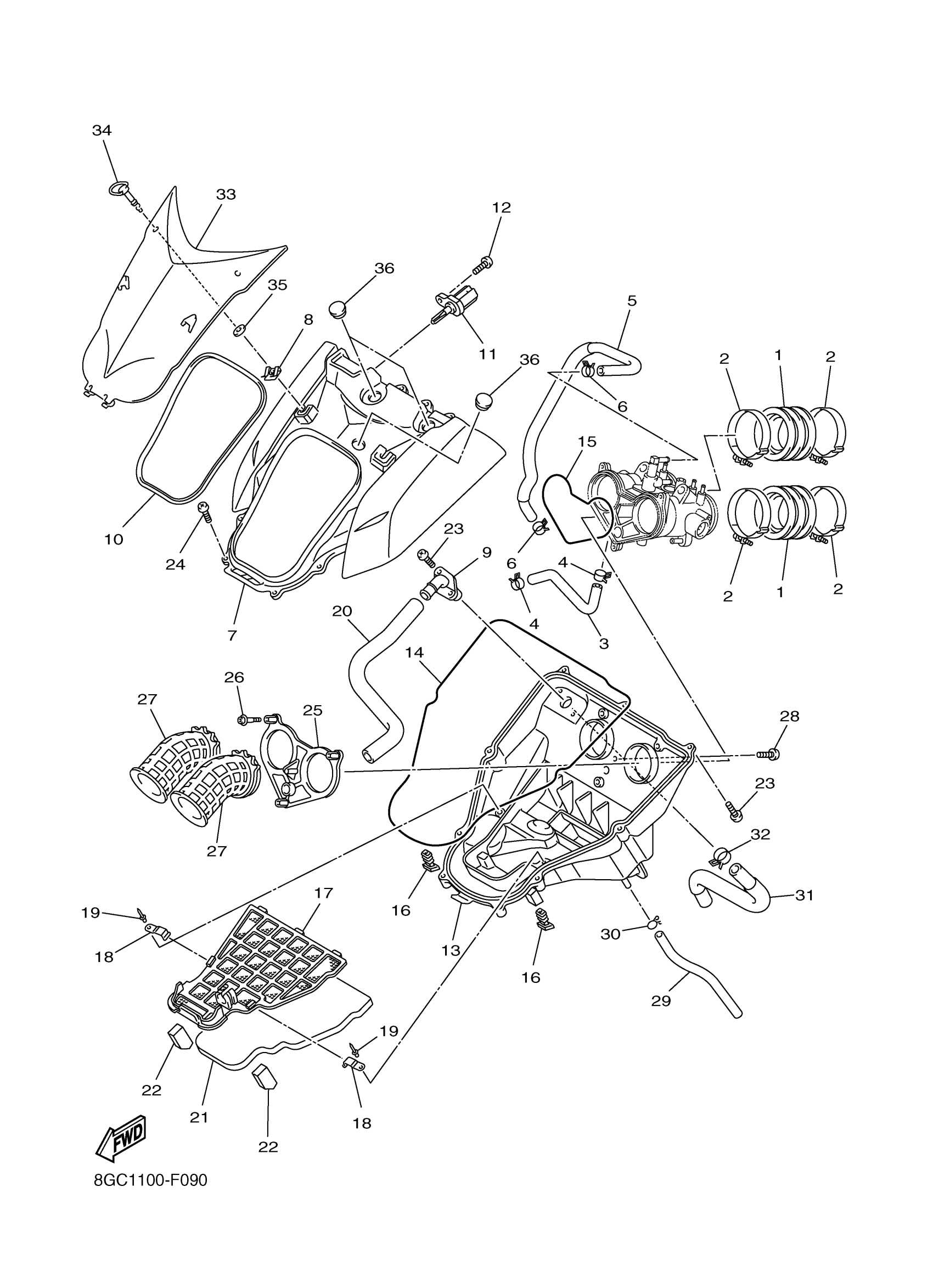

Yamaha PZ50FXW (PHAZER FX) 8GN1 2007 INTAKE Diagram
#
1
JOINT
8GC-13595-00-00
Unavailable
2
HOSE CLAMP ASSY
90450-60004-00
$16.99
3
HOSE 1
8GC-1243A-00-00
Unavailable
4
CLIP
90467-110A2-00
Unavailable
5
HOSE 3
8GC-12578-00-00
Unavailable
6
CLIP
90467-110A2-00
Unavailable
7
SILENCER, INTAKE 1
8GC-14431-00-00
Unavailable
8
PLATE, SPRING
4XV-2177L-01-00
$6.99
9
PIPE, JOINT
8GC-14485-00-00
Unavailable
10
SEAL
8GC-14457-00-00
Unavailable
11
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
$60.99
12
SCREW, PANHEAD TAPPING
97702-50520-00
$0.43
13
SILENCER, INTAKE 2
8GC-W1444-10-00
Unavailable
14
SEAL
8GC-14452-00-00
Unavailable
15
SEAL
51Y-14462-00-00
$18.49
16
GROMMET
8GC-14435-00-00
Unavailable
17
PLATE, ELEMENT
8GC-14472-10-00
Unavailable
18
HINGE
8GC-14406-00-00
Unavailable
19
RIVET, BLIND
90267-32192-00
Unavailable
20
PIPE
8GC-14419-00-00
Unavailable
21
ELEMENT, AIR CLEANER
8GC-14451-00-00
Unavailable
22
DAMPER 1
8GC-14425-00-00
Unavailable
23
SCREW, TRUSS TAP.
97707-50025-00
Unavailable
24
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
25
JOINT, AIR CLEANER 1
8GC-14453-00-00
Unavailable
26
BOLT
90109-05005-00
Unavailable
27
FUNNEL, AIR
8GC-14469-00-00
Unavailable
28
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
29
HOSE (L198)
90445-11293-00
Unavailable
30
CLIP
90467-100A1-00
Unavailable
31
PIPE, OIL TANK BREATHER
8GC-21745-00-00
Unavailable
32
CLIP(34X)
90467-22097-00
Unavailable
33
COVER 1
8GC-14417-00-00
Unavailable
34
HEAD
3FV-28386-00-00
Unavailable
35
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
36
GROMMET
8GC-14445-00-00
Unavailable
