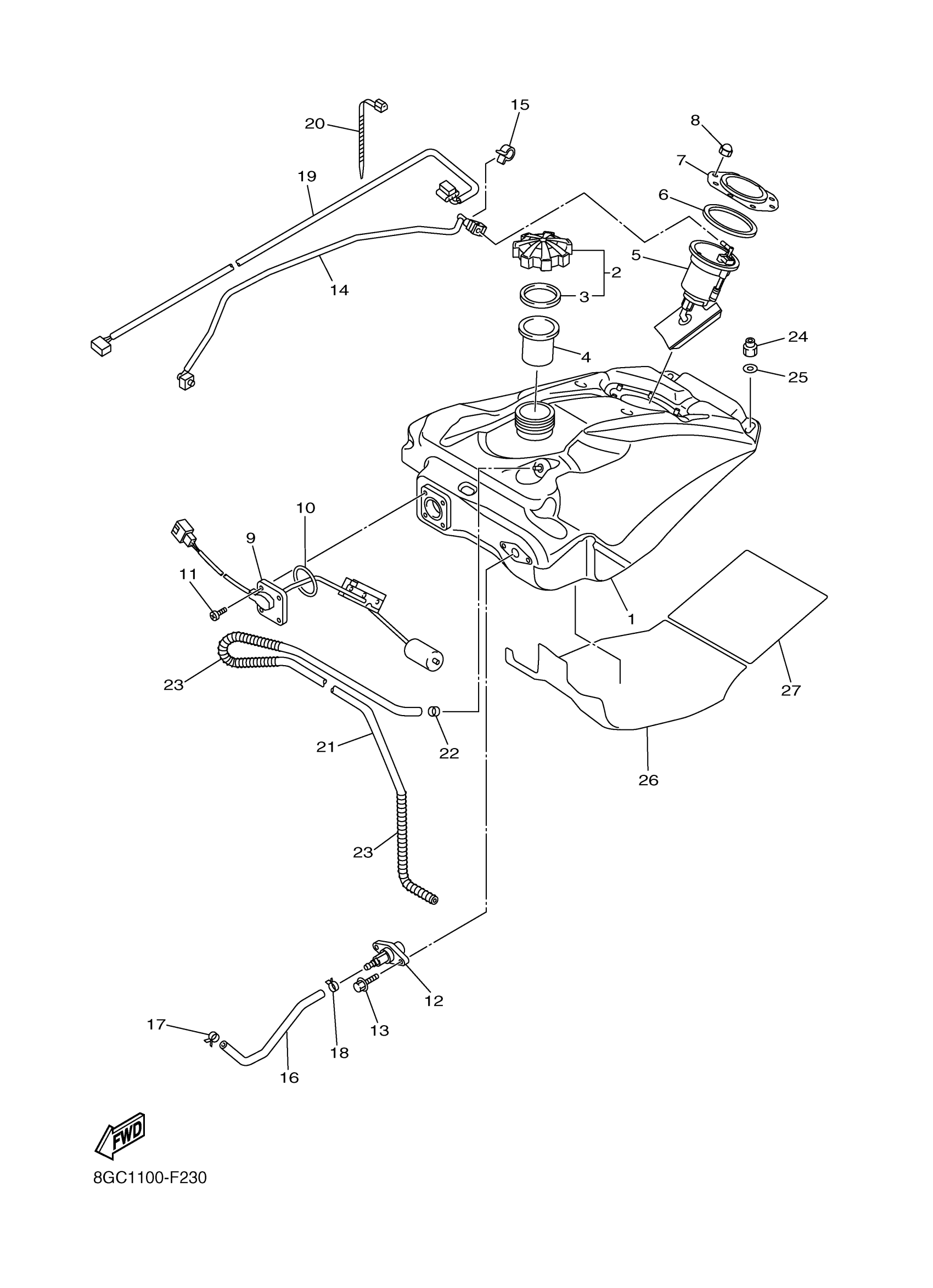

Yamaha PZ50FXW (PHAZER FX) 8GN1 2007 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

8GC-24111-00-00

Unavailable

2

CAP ASSY

8FG-24610-01-00

$34.42

3

GASKET, CAP 1

8HV-24641-00-00

Unavailable

4

TUBE, FILLER

8FG-24114-00-00

Unavailable

5

FUEL PUMP COMP.

8GC-13907-04-00

Unavailable

6

O-RING

8FP-24486-00-00

$17.00

7

BRACKET, FUEL PUMP

8FP-24491-00-00

Unavailable

8

NUT (J17)

95380-06800-00

$6.28

9

SENDER UNIT ASSY, FUEL METER

8GC-85752-01-00

Unavailable

10

O-RING (102)

93210-41041-00

$5.47

11

SCREW, BIND

98902-05008-00

$1.15

12

VALVE, CHECK 1

8FP-24362-01-00

$61.00

13

BOLT, FLANGE

95817-06012-00

$1.40

14

PIPE, FUEL 1

8GC-24311-00-00

Unavailable

15

CLAMP

90464-14004-00

$5.03

16

PIPE 2

8GC-24312-00-00

Unavailable

17

CLIP(3YX)

90467-13133-00

Unavailable

18

CLIP(3YX)

90467-13133-00

Unavailable

19

WIRE, SUB LEAD

8GC-82309-00-00

Unavailable

20

CLAMP

90464-13077-00

Unavailable

21

PIPE 3

8GC-24313-00-00

Unavailable

22

CLIP (2A6)

90468-02078-00

Unavailable

23

SPRING, COMPRESSION (10L)

90501-08668-00

Unavailable

24

NUT, NYLON

95717-08300-00

Unavailable

25

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

26

INSULATOR, FUEL TANK 1

8GC-2416F-00-00

Unavailable

27

INSULATOR, FUEL TANK 2

8GC-2416G-01-00

Unavailable
