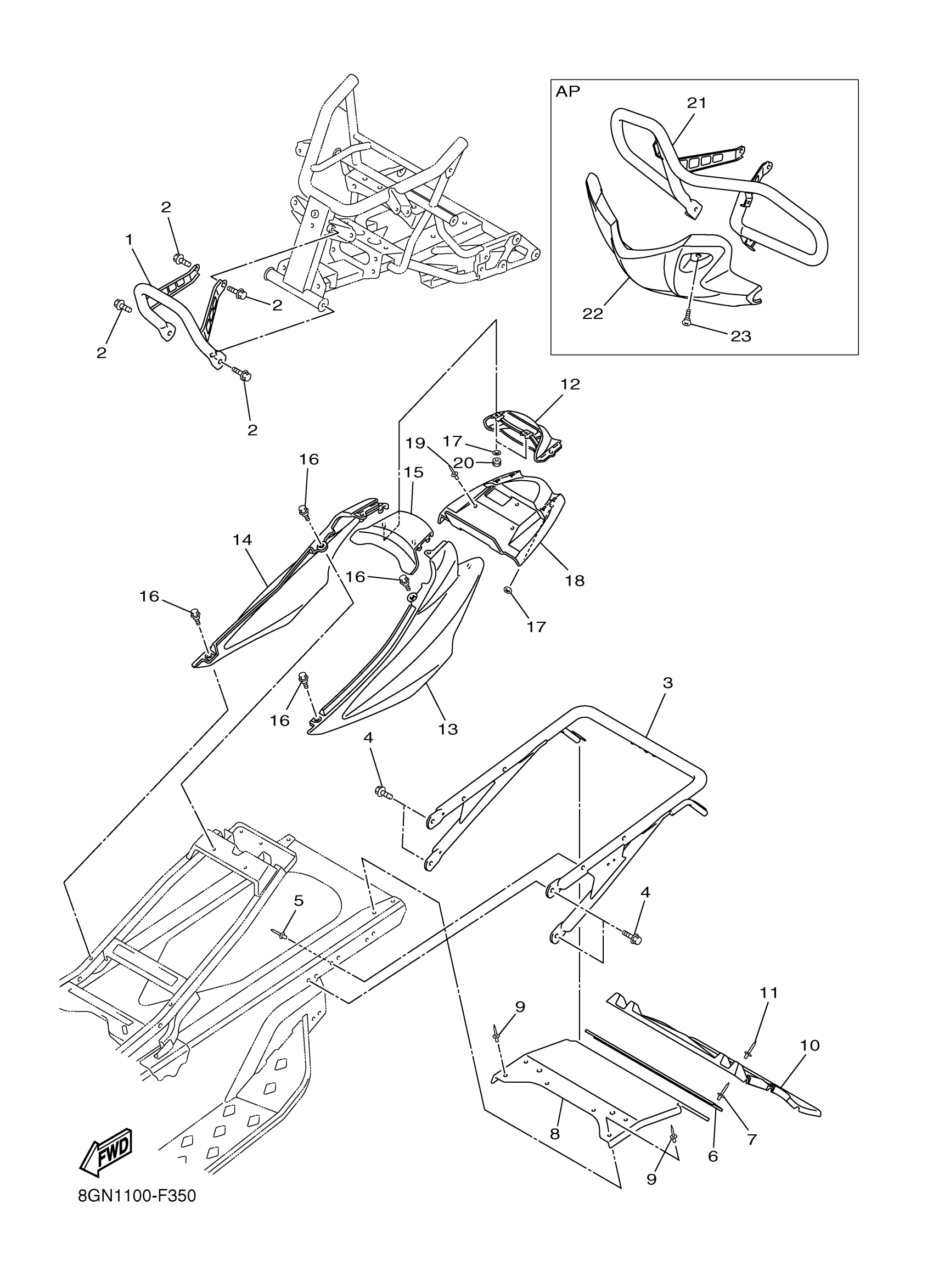

Yamaha PZ50FXW (PHAZER FX) 8GN1 2007 BUMPER Diagram
#
Description
Price
1
BUMPER, FRONT 1
8GC-77511-00-00
$126.99
2
BOLT, FLANGE
95814-08016-00
$9.49
3
BUMPER, REAR 1
8GC-77541-09-00
Unavailable
4
BOLT, FLANGE
95822-08014-00
$8.49
5
RIVET, BLIND
90267-47195-00
$3.88
6
STOPPER, FLAP
8GC-77596-00-00
Unavailable
7
RIVET, BLIND
90267-47195-00
$3.88
8
PANEL, SUB FRAME 5
8GC-21916-00-00
$89.99
9
RIVET, BLIND
90267-47195-00
$3.88
10
FLAP
8GT-K7595-00-00
Unavailable
11
RIVET, BLIND(8CH)
90267-47187-00
$2.34
12
COVER, TAILLIGHT
8GC-84516-00-00
$26.99
13
PROTECTOR 1
8GC-77551-00-00
Unavailable
13
PROTECTOR 1
8GC-77551-20-00
Unavailable
14
PROTECTOR 2
8GC-77552-00-00
Unavailable
14
PROTECTOR 2
8GC-77552-20-00
Unavailable
15
PROTECTOR 3
8GC-77553-00-00
Unavailable
15
PROTECTOR 3
8GC-77553-20-00
Unavailable
16
BOLT
90109-06220-00
Unavailable
17
NUT, SPRING
90183-06071-00
Unavailable
18
BRACKET, TAILLIGHT
8GC-2117E-01-00
Unavailable
19
RIVET, BLIND(8CH)
90267-47187-00
$2.34
20
GROMMET(1WG)
90480-11454-00
Unavailable
21
BUMPER, FRONT 1
8GR-77511-00-00
Unavailable
22
PROTECTOR 5
8GR-77555-00-00
Unavailable
23
SCREW(2XF)
90149-06263-00
Unavailable
