- PZ500F (PHAZER 500) 8DJ3 2001
SECONDARY SHEAVE

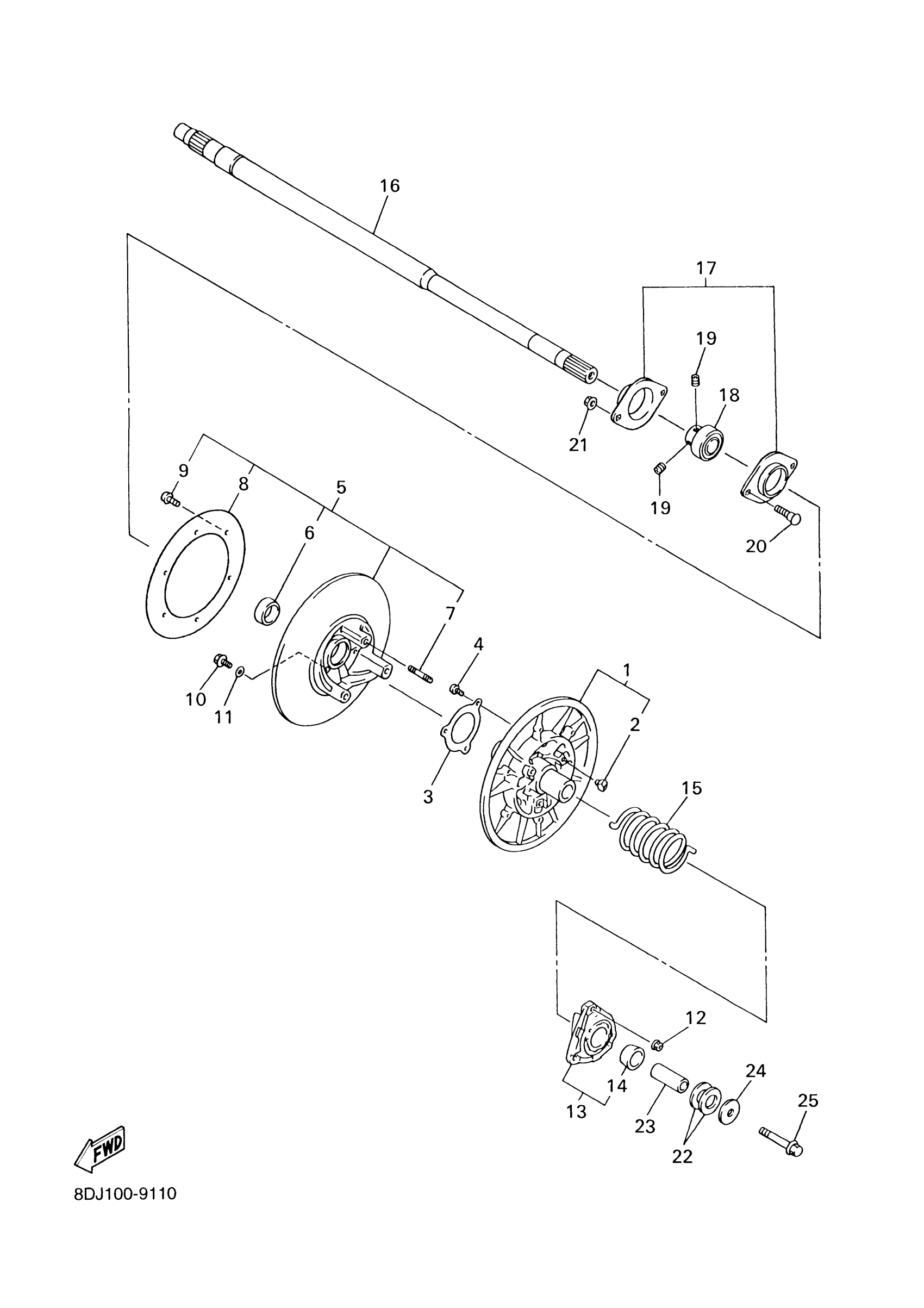

Yamaha PZ500F (PHAZER 500) 8DJ3 2001 SECONDARY SHEAVE Diagram
#
Description
Price
1
SECONDARY FIXED SHEAVE COMP.
8CR-17660-20-00
Unavailable
2
SHOE, RAMP
8AV-17688-10-00
$32.99
3
STOPPER, HOLDER
8BV-17656-00-00
$22.99
4
SCREW, BINDING
98907-06016-00
$9.49
5
SECONDARY SLIDING SHEAVE
8BU-17670-10-00
Unavailable
6
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
7
BOLT, STUD 3
95617-08630-00
$4.99
8
PLATE 2
8CM-17675-00-00
Unavailable
9
GASKET, EXHAUST
98507-05008-00
$3.55
10
BOLT, WASHER BASED(8BN)
90105-06734-00
$3.50
11
WASHER, PLATE (371)
90201-06431-00
$5.60
11
WASHER, PLATE (22K)
90201-061H1-00
$4.72
12
NUT(8BN)
90179-08655-00
$10.49
13
SEAT SPRING SET
8BV-17604-31-00
$159.99
14
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
15
SPRING, TORSION(8AB)
90508-536A9-00
Unavailable
16
SHAFT, SECONDARY
8CR-17681-10-00
Unavailable
17
HOUSING, BEARING
8CR-47631-01-00
Unavailable
18
BEARING(8CJ)
93399-99943-00
Unavailable
19
BOLT, SET
90113-06006-00
Unavailable
20
BOLT(8CJ)
90109-083G2-00
Unavailable
21
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
22
WASHER, PLATE (T=0.5)
90201-222F0-00
Unavailable
22
WASHER, PLATE (8L8)
90201-225A4-00
Unavailable
23
COLLAR
90387-14019-00
Unavailable
24
WASHER, PLATE
90201-14022-00
Unavailable
25
BOLT, WASHER BASED(8CJ)
90105-14766-00
Unavailable
