Description

Price

1

TANK, FUEL

8DJ-24111-00-00

Unavailable

2

CAP ASSY

8CR-24610-00-00

Unavailable

3

GASKET, CAP

8CW-24612-00-00

$17.49

4

SUCTION PIPE COMP. 1

8CR-24301-01-00

Unavailable

5

CLIP

90468-04092-00

Unavailable

6

FILTER ASSY

8H5-24560-00-00

Unavailable

7

PIPE, SUCTION 1

8CR-24335-01-00

$6.99

8

CLIP (7K7)

90467-11044-00

$8.49

9

BOLT, FLANGE

95817-06016-00

$2.75

10

BREATHER COMP.

8CR-2418A-00-00

Unavailable

11

SCREW

90149-06021-00

$8.49

12

PIPE, FUEL 1

8CR-24311-10-00

Unavailable

13

SPRING, COMPRESSION (10L)

90501-08668-00

$11.49

14

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$29.99

15

SPRING, COMPRESSION(7MX)

90501-084J0-00

$7.49

16

CLIP (2A6)

90468-02078-00

Unavailable

17

CLIP (8A1)

90467-09026-00

Unavailable

18

NUT, NYLON

95717-08300-00

Unavailable

19

WASHER, PLATE (3L7)

90201-08784-00

Unavailable

20

CLAMP(4FM)

90464-15195-00

Unavailable

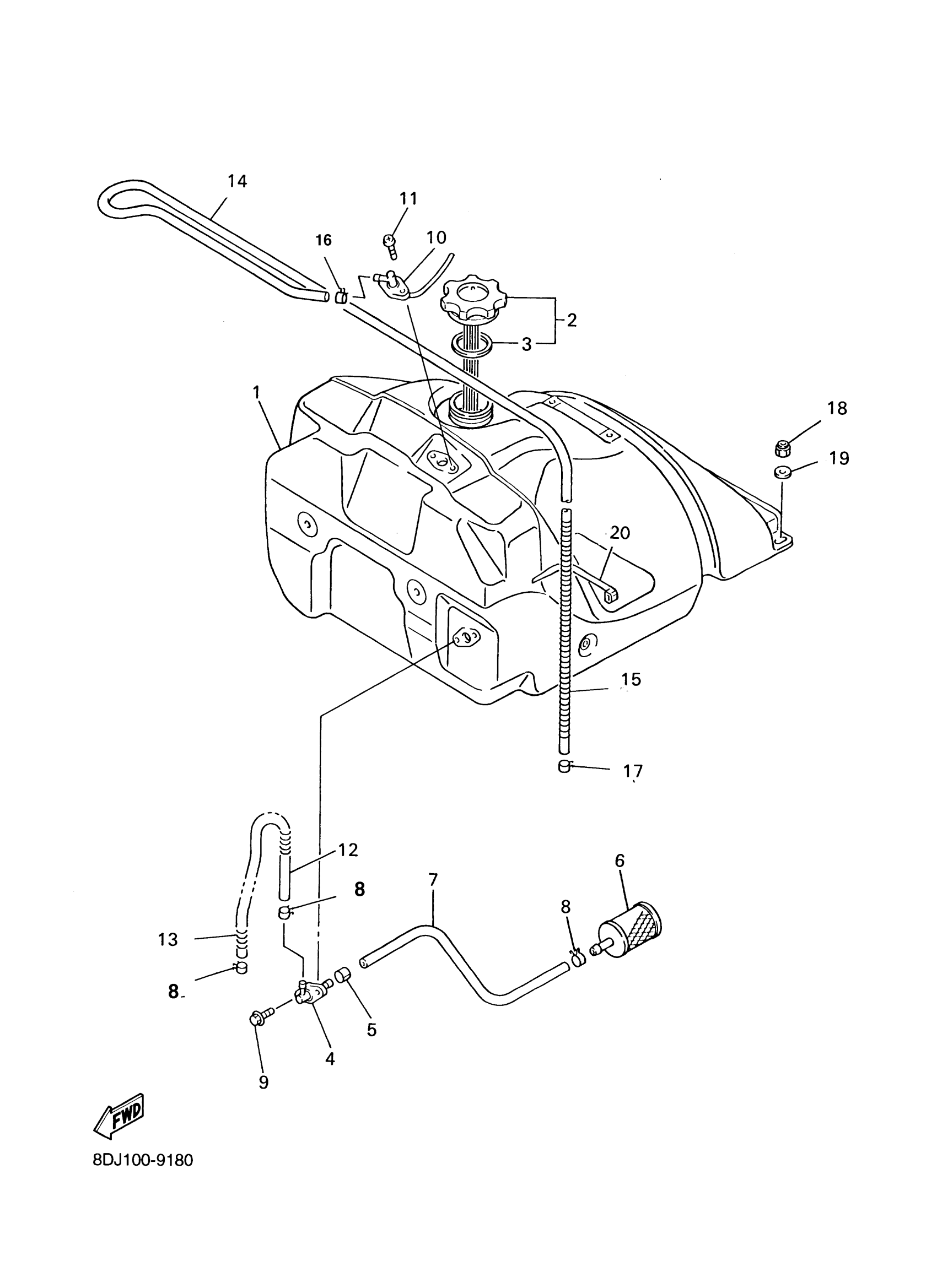

Yamaha PZ500F (PHAZER 500) 8DJ3 2001 FUEL TANK Diagram

TANK, FUEL

CAP ASSY

GASKET, CAP

SUCTION PIPE COMP. 1

CLIP

FILTER ASSY

PIPE, SUCTION 1

CLIP (7K7)

BOLT, FLANGE

BREATHER COMP.

SCREW

PIPE, FUEL 1

SPRING, COMPRESSION (10L)

TUBE, FLEXIBLE VINYL(8AT)

SPRING, COMPRESSION(7MX)

CLIP (2A6)

CLIP (8A1)

NUT, NYLON

WASHER, PLATE (3L7)

CLAMP(4FM)
