Description

Price

1

BRACKET, FRONT UPPER 1

8DJ-21415-00-00

$24.99

2

BRACKET, FRONT LOWER 1

8DJ-21417-00-00

Unavailable

3

DAMPER 2

8DJ-21486-00-00

$37.99

4

NUT, FLANGE(8AB)

95707-10500-00

$3.18

5

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

6

BRACKET, REAR UPPER 1

8DJ-21425-00-00

Unavailable

7

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

8

BRACKET, REAR LOWER 1

8DJ-21427-00-00

Unavailable

9

DAMPER

8DJ-21488-00-00

Unavailable

10

NUT, FLANGE(8AB)

95707-10500-00

$3.18

11

NUT, FLANGE(8AB)

95707-10500-00

$3.18

12

BOLT, FLANGE

95817-06016-00

$2.75

13

BRACKET, FRONT UPPER 2

8DJ-21416-00-00

$49.99

14

BRACKET, FRONT LOWER 1

8DJ-21417-00-00

Unavailable

15

DAMPER 2

8DJ-21486-00-00

$37.99

16

NUT, FLANGE(8AB)

95707-10500-00

$3.18

17

BOLT, FLANGE(JN5)

95817-12030-00

Unavailable

18

WASHER, PLATE

90201-120U9-00

Unavailable

19

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

20

WASHER, PLATE (856)

90201-10321-00

Unavailable

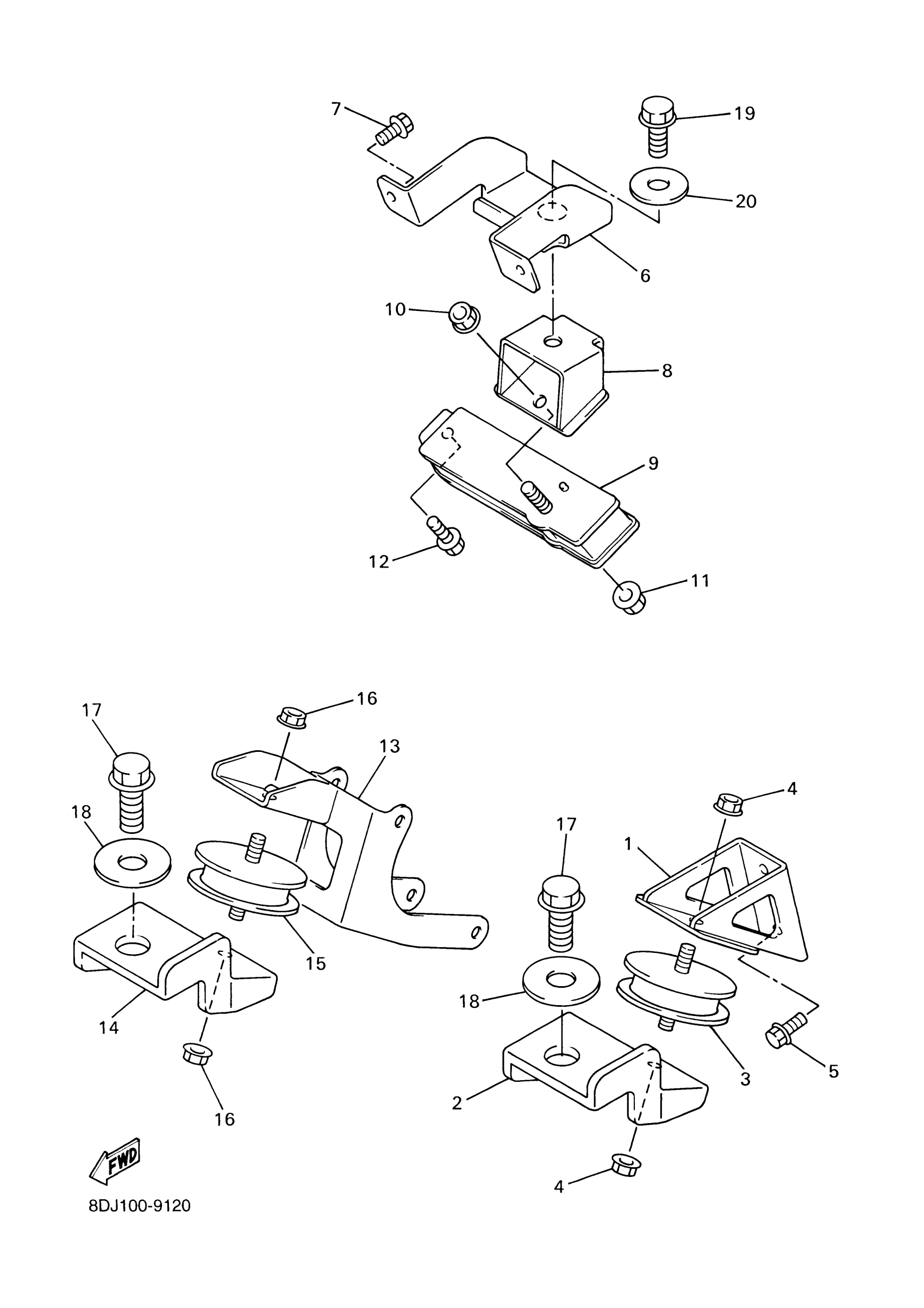

Yamaha PZ500F (PHAZER 500) 8DJ3 2001 ENGINE BRACKET Diagram

BRACKET, FRONT UPPER 1

BRACKET, FRONT LOWER 1

DAMPER 2

NUT, FLANGE(8AB)

BOLT, FLANGE(8AB)

BRACKET, REAR UPPER 1

BOLT, FLANGE(8AB)

BRACKET, REAR LOWER 1

DAMPER

NUT, FLANGE(8AB)

NUT, FLANGE(8AB)

BOLT, FLANGE

BRACKET, FRONT UPPER 2

BRACKET, FRONT LOWER 1

DAMPER 2

NUT, FLANGE(8AB)

BOLT, FLANGE(JN5)

WASHER, PLATE

BOLT, FLANGE(3GD)

WASHER, PLATE (856)
