- PZ500F (PHAZER 500) 8DJ3 2001
ELECTRICAL 1

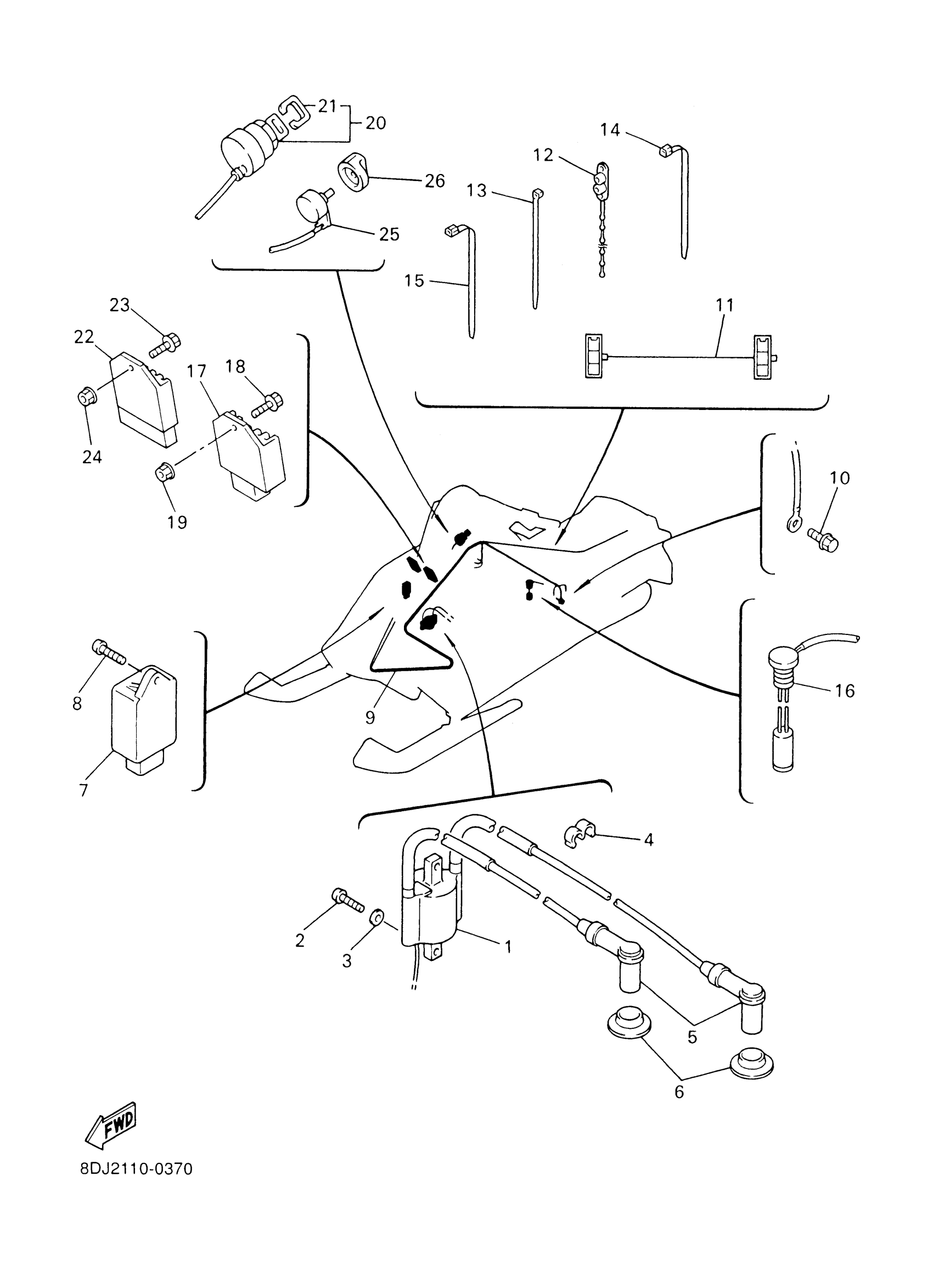

Yamaha PZ500F (PHAZER 500) 8DJ3 2001 ELECTRICAL 1 Diagram
#
Description
Price
1
IGNITION COIL ASSY
8DJ-82310-09-00
$111.99
2
SCREW PAN HEAD
98580-06020-00
$8.49
3
WASHER, PLAIN (646)
92990-06600-00
$2.80
4
CLAMP(6M7)
90464-09M31-00
$8.49
5
PLUG CAP ASSY
85G-82370-20-00
$34.99
6
SEAL, PLUG CAP
8V0-82372-00-00
$4.82
7
C.D.I. UNIT ASSY
8DJ-85540-00-00
Unavailable
8
SCREW, TAPPING(65J)
97780-60625-00
Unavailable
9
WIRE HARNESS ASSY
8DJ-82590-10-00
Unavailable
10
BOLT, FLANGE
95817-06010-00
$4.73
11
WIRE, LEAD
8CR-8471G-00-00
Unavailable
12
CLAMP
90464-20031-00
Unavailable
13
CLAMP(4FM)
90464-15195-00
$4.41
14
CLAMP(4FM)
90464-15195-00
$4.41
15
CLAMP
90464-13077-00
$8.49
16
OIL LEVEL GAUGE ASSY
8CR-85720-02-00
Unavailable
17
RECTIFIER & REGULATOR ASSY
8DX-81960-00-00
Unavailable
18
BOLT, FLANGE
95817-06016-00
Unavailable
19
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
20
MAIN SWITCH ASSY
8AB-82510-01-00
Unavailable
21
CAP, KEY
526-82579-00-00
Unavailable
22
VOLTAGE REGULATOR ASSY
8AB-81910-00-00
Unavailable
23
BOLT, FLANGE
95817-06016-00
Unavailable
24
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
25
RESISTOR, VARIABLE
8CR-87283-00-00
Unavailable
26
KNOB, VARIABLE RESISTOR
8AB-87284-00-00
Unavailable
