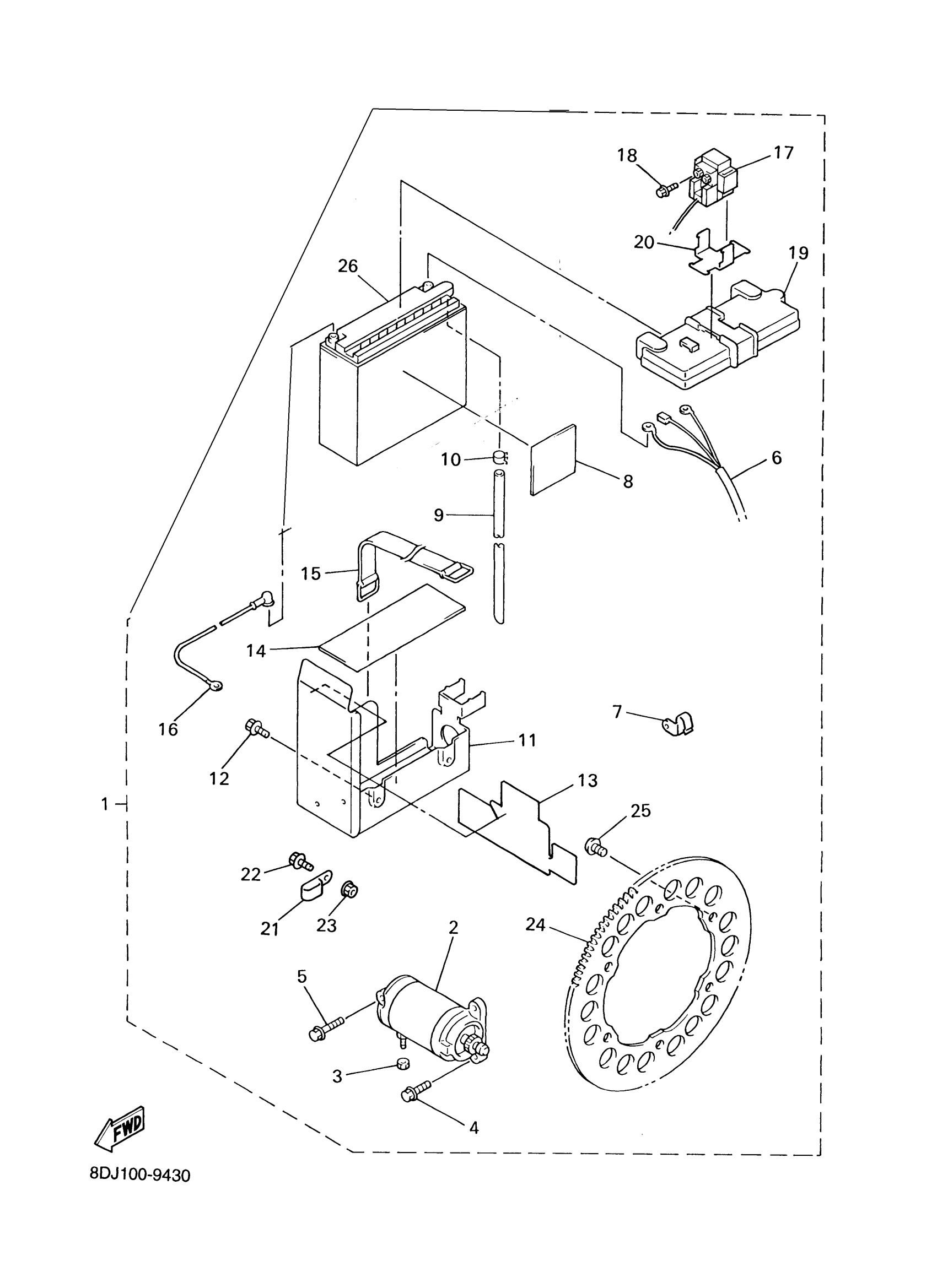

Yamaha PZ500F (PHAZER 500) 8DJ3 2001 ALTERNATE STARTER KIT Diagram

#

Description
Price

1

ELECTRIC STARTER KIT

8DJ-W8180-00-KT

Unavailable

2

STARTING MOTOR ASSY

8CW-81800-01-00

Unavailable

3

NUT(6TA)

95317-06600-00

$3.55

4

BOLT, SMALL FLANGE

95027-08030-00

$3.76

5

BOLT, FLANGE(4ES)

95027-08080-00

Unavailable

6

HARNESS, WIRE

8DX-82105-00-00

Unavailable

7

CLAMP

90462-10242-00

Unavailable

8

DAMPER

8CW-82176-00-00

Unavailable

9

PIPE (L320)

8CW-8235W-01-00

Unavailable

10

CLIP(41W)

90467-08092-00

$9.49

11

BRACKET, BATTERY

8DX-2199G-00-00

$75.99

12

BOLT (796)

90109-06513-00

$3.55

13

SHIELD, HEAT

8DX-2199H-00-00

Unavailable

14

SEAT, BATTERY

84N-82122-00-00

$6.99

15

BAND, BATTERY

8CY-82131-00-00

$12.99

16

WIRE, PLUS LEAD

8DY-82115-00-00

Unavailable

17

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

Unavailable

18

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

19

COVER, BATTERY

8DX-82129-01-00

Unavailable

20

. HOLDER, RELAY

8CY-81952-00-00

Unavailable

21

CLAMP(83R)

90461-08113-00

Unavailable

22

BOLT, FLANGE

95817-06014-00

Unavailable

23

NUT,SELF-LOCKING

95607-06200-00

Unavailable

24

GEAR 1

8DM-1760A-18-00

Unavailable

25

SCREW, CROSSRECESSED ROUND

90150-08008-00

Unavailable

26

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable
