- PZ500DXF (PHAZER 500 DELUXE (ELEC START)) 8EM1 2001
TRACK SUSPENSION 1

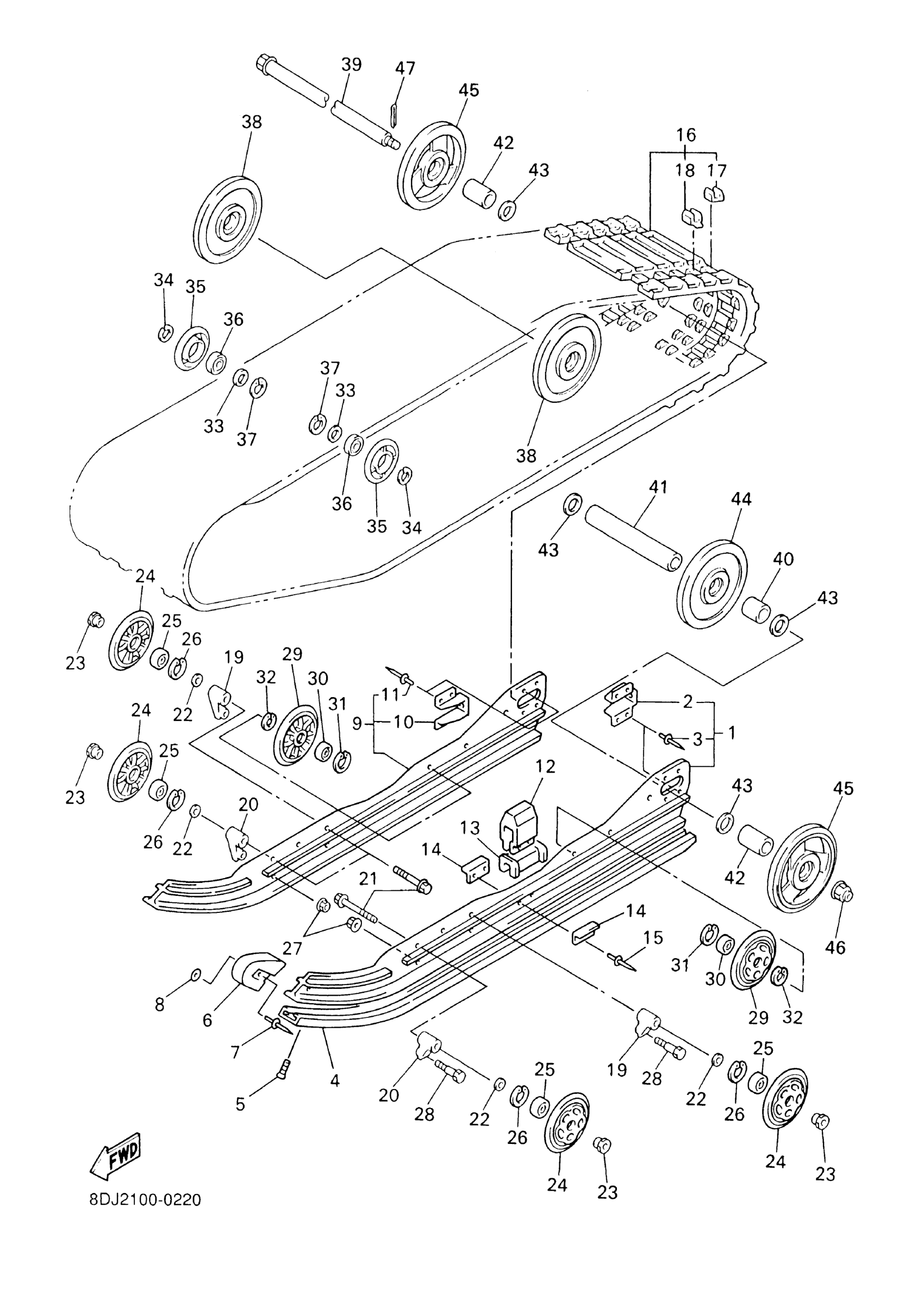

Yamaha PZ500DXF (PHAZER 500 DELUXE (ELEC START)) 8EM1 2001 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING 1
8EA-47411-00-00
Unavailable
2
BRACKET
8V0-4741B-00-00
Unavailable
3
RIVET
8V0-47468-00-00
$10.49
4
136 (DZ) RED HYFAX
SMA-8CW92-70-DZ
Unavailable
5
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
6
RUNNER, SLIDING 2
8ED-47422-00-00
$46.99
7
RIVET BLIND
90267-48194-00
$3.28
8
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
9
FRAME, SLIDING 2
8EA-47412-00-00
Unavailable
10
BRACKET
8V0-4741B-00-00
Unavailable
11
RIVET
8V0-47468-00-00
$10.49
12
DAMPER 2
8CM-47457-00-00
$16.49
13
SPACER
8CM-47341-00-00
$16.49
14
PLATE, DAMPER
8AX-47458-00-00
$10.99
15
RIVET, BLIND
90267-48199-00
$3.76
16
TRACK ASSY
8EA-47110-10-00
Unavailable
17
PLATE, REINFORCEMENT
8EA-47113-00-00
Unavailable
18
METAL, SLIDE
8EA-47115-00-00
Unavailable
19
BRACKET 7
8CM-47419-10-00
Unavailable
20
BRACKET 7
8CM-47419-20-00
Unavailable
21
BOLT, FLANGE
90105-10029-00
Unavailable
22
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
23
NUT(8CM)
90179-10670-00
Unavailable
24
SUSPENTION WHEEL COMP
87M-47320-00-00
Unavailable
25
BEARING(8AB)
93306-00444-00
Unavailable
26
CIRCLIP(5U8)
99009-42500-00
Unavailable
27
NUT, SELF-LOCKING
90185-08169-00
Unavailable
28
BOLT(8CM)
90101-08774-00
Unavailable
29
SUSPENTION WHEEL COMP
87M-47320-00-00
Unavailable
30
BEARING(8AB)
93306-00444-00
Unavailable
31
CIRCLIP(5U8)
99009-42500-00
Unavailable
32
CIRCLIP(1AR)
99009-20400-00
Unavailable
33
COLLAR(8AB)
90387-2004V-00
Unavailable
34
CIRCLIP(1AR)
99009-20400-00
Unavailable
35
SUSPENSION WHEEL COMP.
8H8-47320-00-00
Unavailable
36
BEARING(8AB)
93306-00444-00
Unavailable
37
CIRCLIP(5U8)
99009-42500-00
Unavailable
38
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
39
REAR AXLE COMP.
8L8-47520-02-00
Unavailable
40
COLLAR
90387-2012E-00
Unavailable
41
COLLAR
90387-2012C-00
Unavailable
42
COLLAR
90387-2012D-00
Unavailable
43
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
44
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
45
WHEEL RED PLASTIC ASSY
8CR-47550-21-RD
Unavailable
46
NUT, SELF-LOCKING (8BF)
95607-14200-00
Unavailable
47
PIN, COTTER
91401-30025-00
Unavailable
