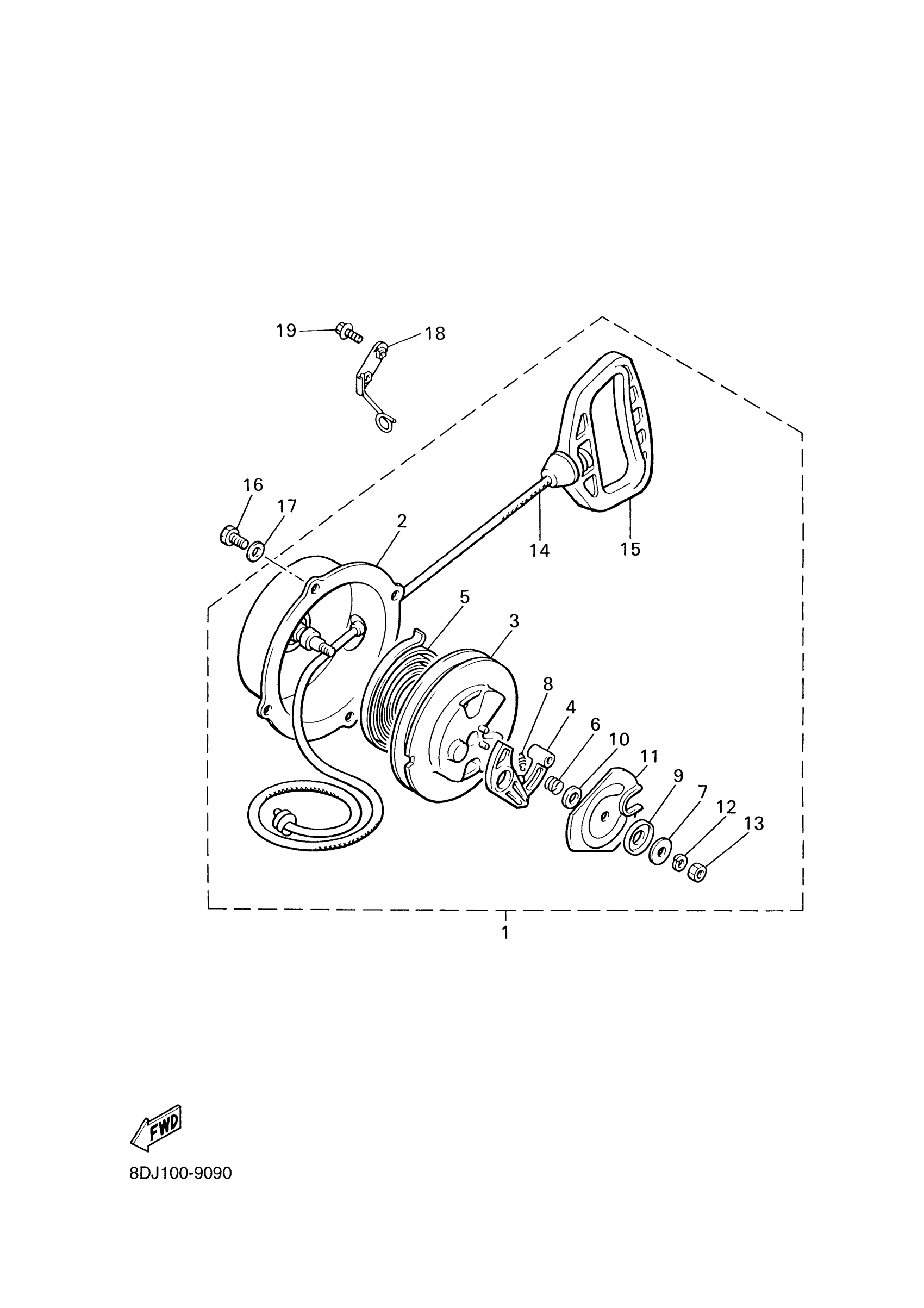

Yamaha PZ500DXF (PHAZER 500 DELUXE (ELEC START)) 8EM1 2001 STARTER Diagram

#

Description
Price

1

STARTER ASSY

8V0-15710-00-00

Unavailable

2

. CASE, STARTER

8V0-15711-00-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$44.27

4

PAWL, DRIVE

8F3-15741-01-00

$20.42

5

SPRING, STARTER

8F3-15713-01-00

$39.64

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$8.88

7

WASHER, THRUST

8F3-15739-01-00

$10.70

8

SPRING, RETURN

8F3-15734-00-00

$4.97

9

WASHER, THRUST

8G5-15739-00-00

$6.73

10

COLLOR

82M-15779-00-00

$6.67

11

PLATE, DRIVE

8F3-15716-03-00

$22.31

12

WASHER, SPRING

92995-06100-00

$3.04

13

NUT(650)

95380-06700-00

$5.75

14

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$26.39

15

HANDLE, STARTER

8F3-15755-00-00

$21.46

16

BOLT(8CP)

97017-06014-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

18

GUIDE, ROPE

8CR-15758-00-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

Unavailable
