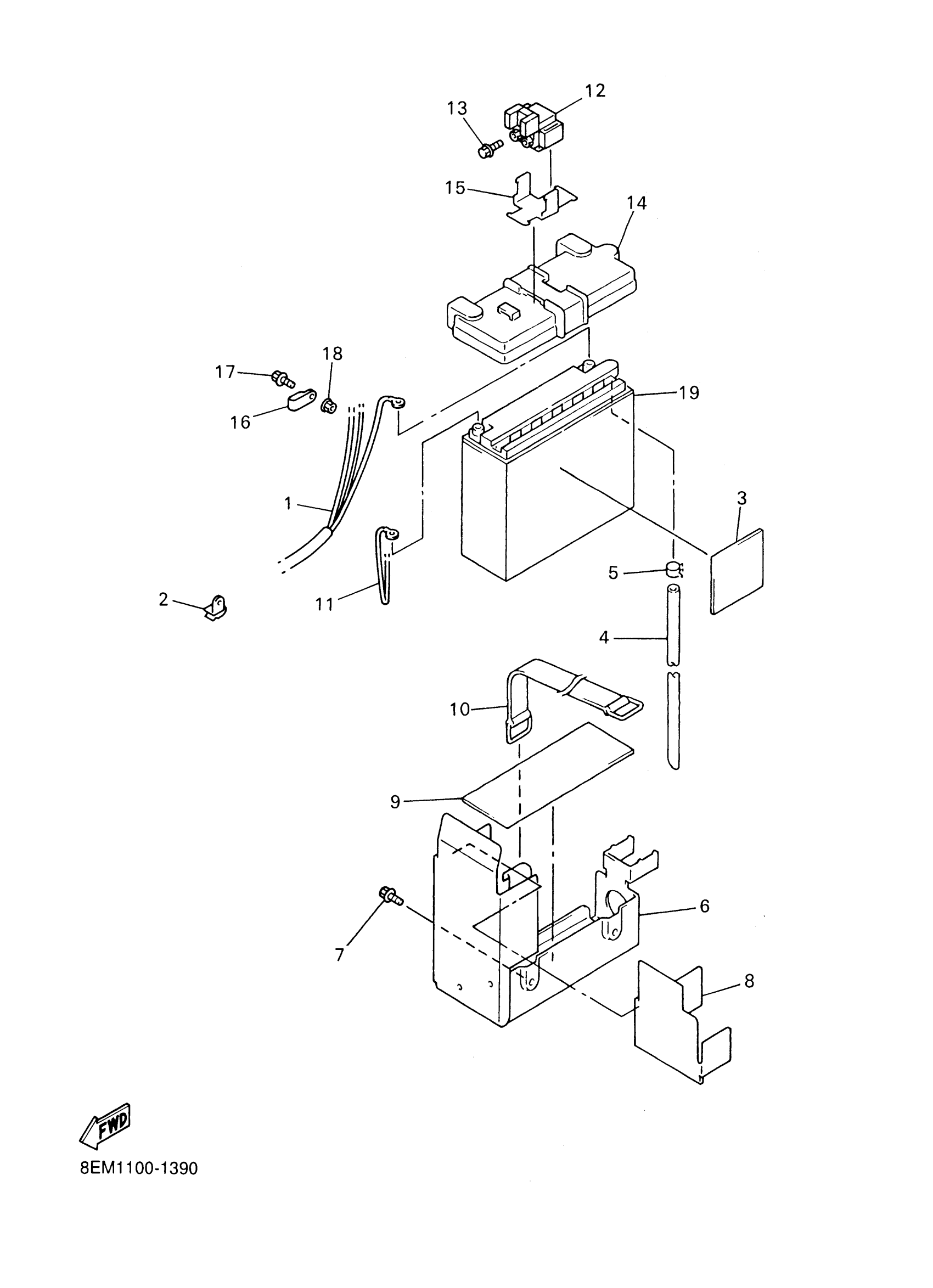

Yamaha PZ500DXF (PHAZER 500 DELUXE (ELEC START)) 8EM1 2001 ELECTRICAL 2 Diagram

HARNESS, WIRE

8DX-82105-00-00

Unavailable

CLAMP

90462-10242-00

Unavailable

DAMPER

8CW-82176-00-00

Unavailable

PIPE (L320)

8CW-8235W-01-00

Unavailable

CLIP(41W)

90467-08092-00

$9.49

BRACKET, BATTERY

8DX-2199G-00-00

$75.99

BOLT, FLANGE

95817-06014-00

Unavailable

SHIELD, HEAT

8DX-2199H-00-00

Unavailable

SEAT, BATTERY

84N-82122-00-00

$6.99

BAND, BATTERY

8CY-82131-00-00

$12.99

WIRE, PLUS LEAD

8DY-82115-00-00

Unavailable

STARTER RELAY ASSY (RC19-016)

3EL-81940-02-00

$28.99

BOLT, SMALL FLANGE

95027-06008-00

$7.99

COVER, BATTERY

8DX-82129-01-00

Unavailable

. HOLDER, RELAY

8CY-81952-00-00

Unavailable

CLAMP(83R)

90461-08113-00

Unavailable

BOLT, FLANGE

95817-06014-00

Unavailable

NUT,SELF-LOCKING

95607-06200-00

Unavailable

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable
