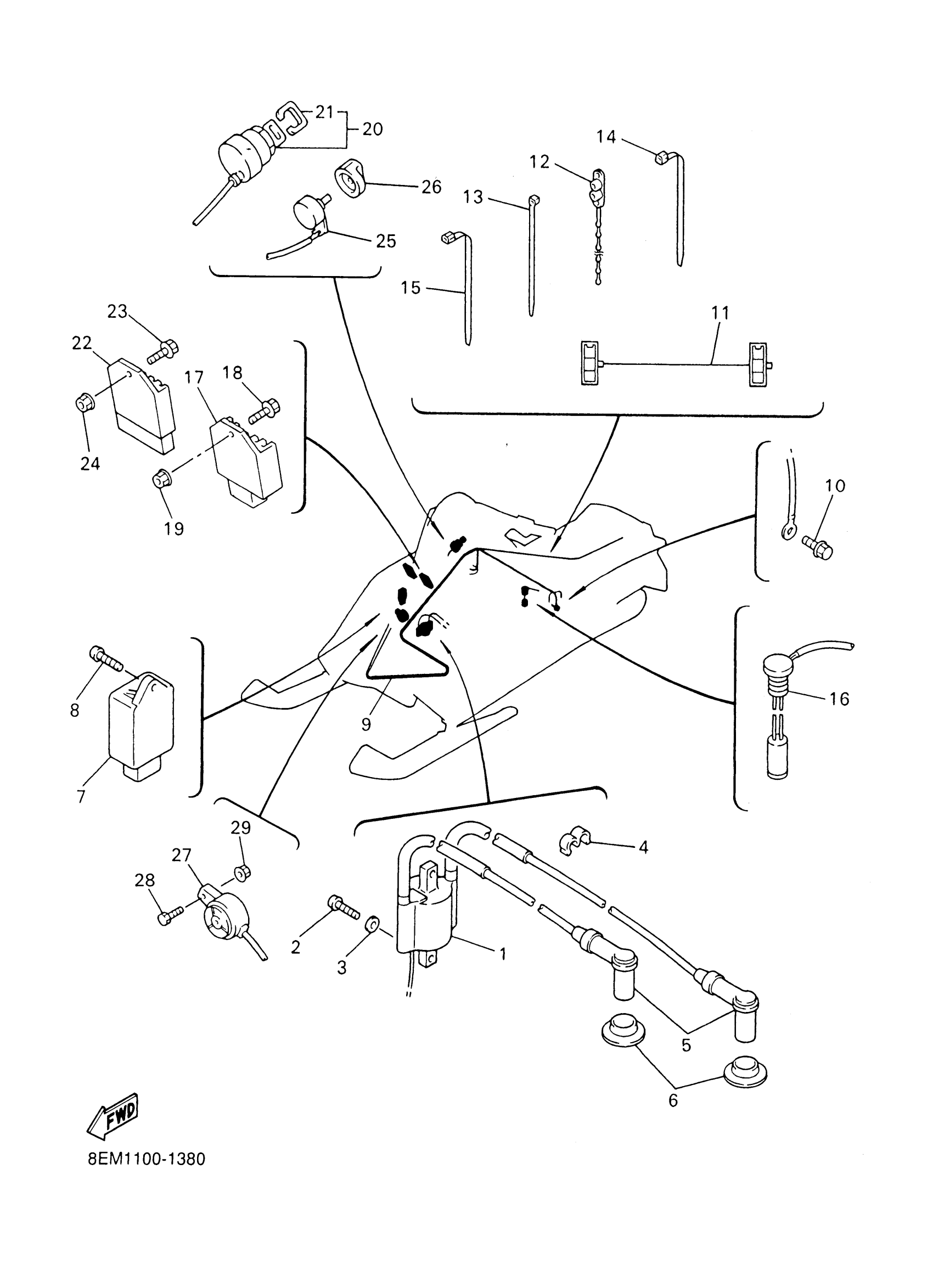

Yamaha PZ500DXF (PHAZER 500 DELUXE (ELEC START)) 8EM1 2001 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

8DJ-82310-09-00

$102.80

2

SCREW PAN HEAD

98580-06020-00

$4.89

3

WASHER, PLAIN (646)

92990-06600-00

$1.84

4

CLAMP(6M7)

90464-09M31-00

$5.79

5

PLUG CAP ASSY

85G-82370-20-00

$26.95

6

SEAL, PLUG CAP

8V0-82372-00-00

$3.59

7

C.D.I. UNIT ASSY

8DJ-85540-00-00

Unavailable

8

SCREW, TAPPING(65J)

97780-60625-00

$2.64

9

WIRE HARNESS ASSY

8DX-82590-00-00

Unavailable

10

BOLT, FLANGE

95817-06010-00

$3.65

11

WIRE, LEAD

8CR-8471G-00-00

Unavailable

12

CLAMP

90464-20031-00

$2.43

13

CLAMP(4FM)

90464-15195-00

$2.57

14

CLAMP(4FM)

90464-15195-00

$2.57

15

CLAMP

90464-13077-00

$6.22

16

OIL LEVEL GAUGE ASSY

8CR-85720-02-00

$42.81

17

RECTIFIER & REGULATOR ASSY

8DX-81960-00-00

Unavailable

18

BOLT, FLANGE

95817-06016-00

Unavailable

19

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

20

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

21

CAP, KEY

526-82579-00-00

Unavailable

22

VOLTAGE REGULATOR ASSY

8AB-81910-00-00

Unavailable

23

BOLT, FLANGE

95817-06016-00

Unavailable

24

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

25

RESISTOR, VARIABLE

8CR-87283-00-00

Unavailable

26

KNOB, VARIABLE RESISTOR

8AB-87284-00-00

Unavailable

27

BUZZER

8CW-83383-00-00

Unavailable

28

BOLT(3JK)

97027-05020-00

Unavailable

29

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
