- PZ500DXF (PHAZER 500 DELUXE (ELEC START)) 8EM1 2001
CRANKSHAFT. PISTON

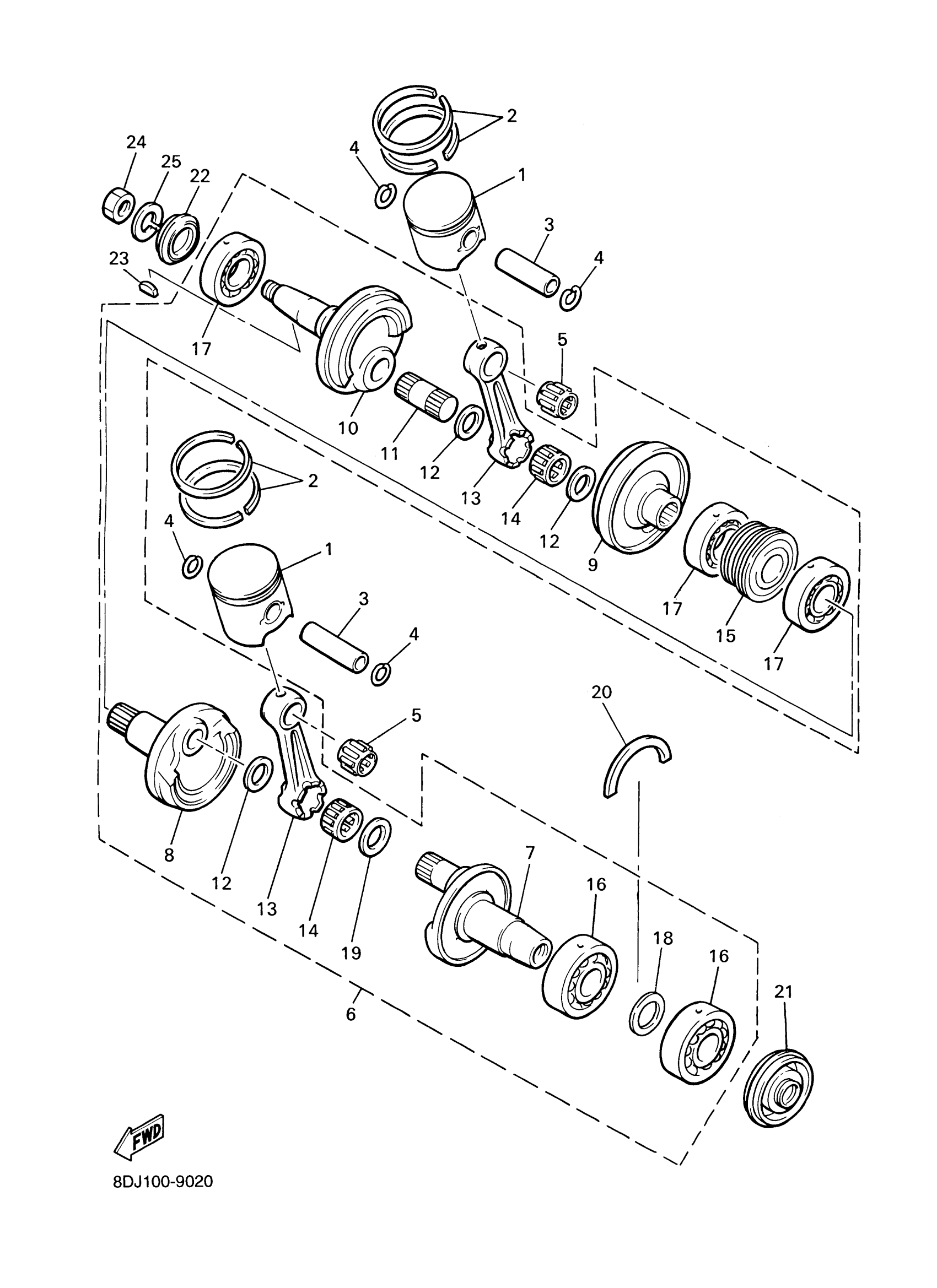

Yamaha PZ500DXF (PHAZER 500 DELUXE (ELEC START)) 8EM1 2001 CRANKSHAFT. PISTON Diagram
#
1
PISTON (STD)
8DJ-11631-00-A0
$112.99
1
PISTON (0.25MM O/S)
8DJ-11635-00-00
$68.99
1
PISTON (0.50MM O/S)
8DJ-11636-00-00
Unavailable
2
PISTON RING SET (STD)
8DJ-11603-00-00
$70.99
2
PISTON RING SET (0.25MM O/S)
8DJ-11603-10-00
Unavailable
2
PISTON RING SET (0.50MM O/S)
8DJ-11603-20-00
Unavailable
3
PIN, PISTON
818-11633-00-00
$31.99
4
CIRCLIP (2F1)
93450-19052-00
$7.49
5
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
$38.99
6
CRANKSHAFT ASSY
8DJ-11400-00-00
Unavailable
7
CRANK 1
89F-11412-01-00
Unavailable
8
CRANK 2
8DJ-11422-00-00
Unavailable
9
CRANK 3
8DJ-11432-00-00
Unavailable
10
. CRANK 4
8V0-11442-00-00
Unavailable
11
. PIN, CRANK 1
857-11681-00-00
Unavailable
12
WASHER (152-11685-00)
90209-24073-00
Unavailable
13
. ROD, CONNECTING
8V0-11651-00-00
Unavailable
14
BEARING, CYLINDRICAL(8BT)
93310-524P8-00
Unavailable
15
SEAL, LABYRINTH 1
8DJ-11515-00-00
Unavailable
16
BEARING
93306-38201-00
Unavailable
17
BEARING
93306-28203-00
Unavailable
18
. WASHER, PLATE
90201-327F7-00
Unavailable
19
WASHER, CRANK PIN
8A7-11685-00-00
Unavailable
20
CIRCLIP
93450-78091-00
Unavailable
21
OIL SEAL (8V0)
93103-32151-00
Unavailable
22
OIL SEAL(83V)
93103-32155-00
Unavailable
23
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
24
NUT
90170-16425-00
Unavailable
25
WASHER(6TD)
92907-16600-00
Unavailable
