- PZ500DXF (PHAZER 500 DELUXE (ELEC START)) 8EM1 2001
CARBURETOR

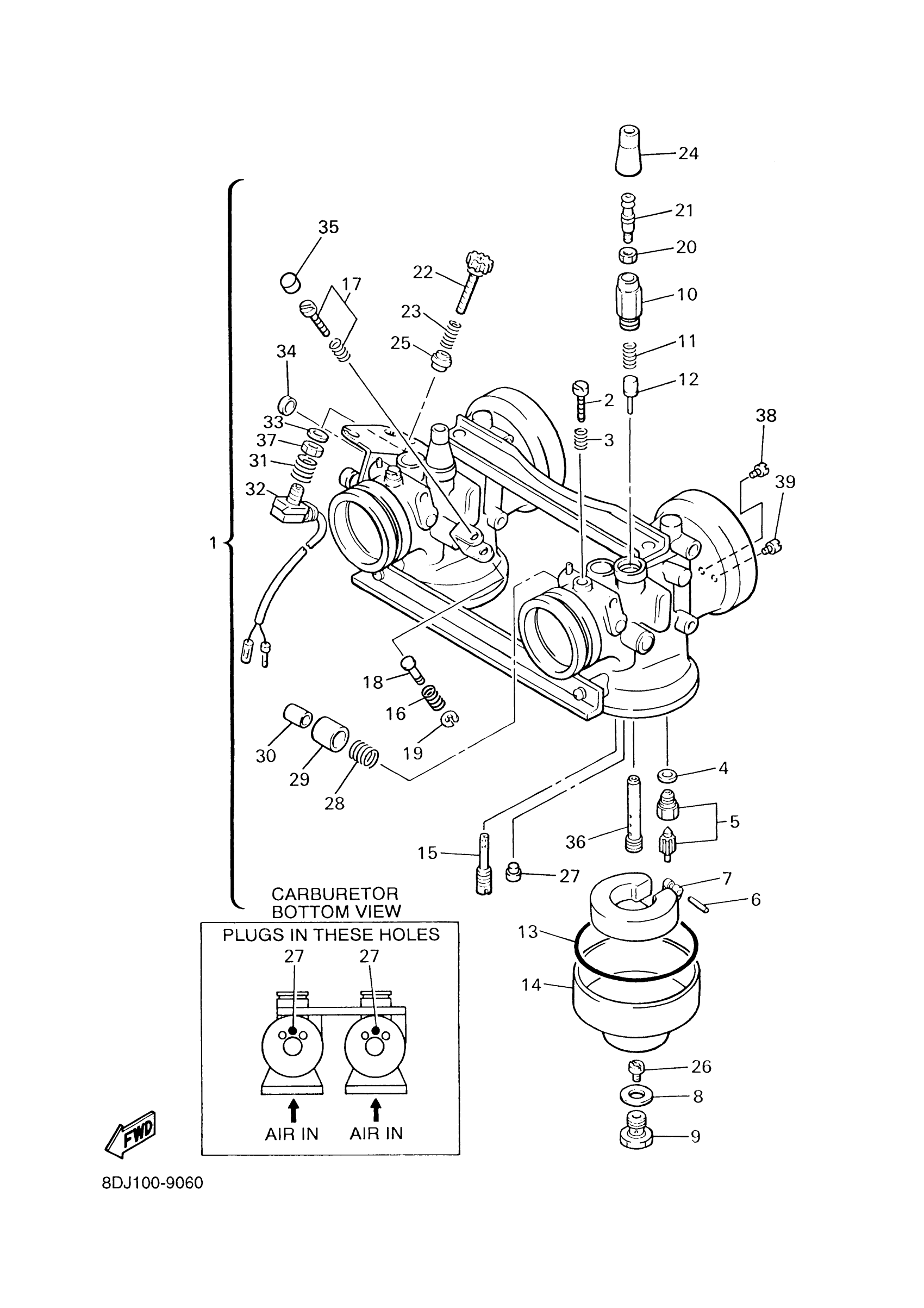

Yamaha PZ500DXF (PHAZER 500 DELUXE (ELEC START)) 8EM1 2001 CARBURETOR Diagram
#
1
CARBURETOR ASSY
8DJ-14100-01-00
Unavailable
2
SCREW, PILOT ADJUSTING
620-14211-00-00
$19.99
3
SPRING, AIR ADJUSTING
82A-14134-00-00
$8.99
4
WASHER, VALVE SEAT
214-14195-00-00
$7.99
5
NEEDLE VALVE ASSY
8DJ-14190-15-00
$49.99
6
PIN,FLOAT
8M6-14186-00-00
$9.49
7
FLOAT ASSY
8M6-14185-00-00
$91.99
8
GASKET
286-14198-00-00
$9.99
9
HOLDER
8M6-14261-00-00
$46.99
10
CAP, PLUNGER
8G8-14174-00-00
$30.99
11
SPRING, PLUNGER
127-14135-00-00
$7.99
12
PLUNGER, STARTER
8G8-14171-00-00
$34.99
13
GASKET, FLOAT CHAMBER
8M6-14126-00-00
$18.99
14
BODY, FLOAT CHAMBER
8M6-14181-00-00
Unavailable
15
JET, PILOT (# 70)
193-14142-70-00
$10.99
15
. JET, PILOT (#75)
193-14142-75-00
Unavailable
15
JET, PILOT (# 80)
193-14142-80-00
Unavailable
16
. SPRING, THROTTLE STOP
3F7-14133-00-00
Unavailable
17
. STOP SCREW SET
12R-1490K-00-00
Unavailable
18
. ROD, PUSH
584-14992-00-00
Unavailable
19
. CLIP
256-14937-00-00
Unavailable
20
NUT, WIRE ADJUSTING
802-14161-00-00
Unavailable
21
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
22
SCREW,THROTTLE
80L-14122-00-00
Unavailable
23
SPRING
8X0-14500-00-00
Unavailable
24
CAP
8A7-14169-00-00
Unavailable
25
RING
8X0-14184-00-00
Unavailable
26
JET, MAIN (#125)
3G2-14231-25-00
Unavailable
26
JET, MAIN (#130)
3G2-14231-26-A0
Unavailable
26
JET, MAIN (#135)
3G2-14231-27-00
Unavailable
26
JET, MAIN (#145)
3G2-14231-29-00
Unavailable
26
JET,MAIN #122.5
3G2-1423A-75-A1
Unavailable
26
JET,MAIN #132.5
3G2-1423A-77-00
Unavailable
26
JET,MAIN #137.5
3G2-1423A-78-00
Unavailable
26
JET,MAIN #142.5
3G2-1423A-79-00
Unavailable
26
. JET, MAIN (#1213)
3G2-1423E-48-00
Unavailable
26
JET, MAIN (#126.3)
3G2-1423E-50-00
Unavailable
26
JET, MAIN (#128.8)
3G2-1423E-51-00
Unavailable
26
JET, MAIN (#131.3)
3G2-1423E-52-00
Unavailable
26
JET, MAIN(#133.8)
3G2-1423E-53-00
Unavailable
26
JET, MAIN (#136.3)
3G2-1423E-54-00
Unavailable
26
JET, MAIN (#138.8)
3G2-1423E-55-00
Unavailable
26
JET, MAIN (#141.3)
3G2-1423E-56-00
Unavailable
26
JET MAIN (#143.8)
3G2-1423E-57-00
Unavailable
26
JET, MAIN #148.8
3G2-1423E-59-00
Unavailable
27
CAP
8V0-14118-00-00
Unavailable
28
. SPRING, THROTTLE 2
80L-14932-00-00
Unavailable
29
COLLAR
80L-14534-00-00
Unavailable
30
COLLAR
80L-14535-00-00
Unavailable
31
SPRING, THROTTLE STOP
8X0-14133-00-00
Unavailable
32
SWITCH, CARBURETOR
87S-8259A-01-00
Unavailable
33
WASHER, PLUG SCREW
22F-14117-00-00
Unavailable
34
COLLAR
80L-14264-00-00
Unavailable
35
. CAP
620-14225-00-00
Unavailable
36
NOZZLE, MAIN
8Y2-14941-3D-00
Unavailable
37
NUT
8X0-14358-00-00
Unavailable
38
. PILOT JET, AIR (08)
239-14172-08-00
Unavailable
39
. PILOT JET, AIR (08)
239-14172-08-00
Unavailable
