- PZ500DXF (PHAZER 500 DELUXE (ELEC START)) 8EM1 2001
AIR SHROUD. FAN

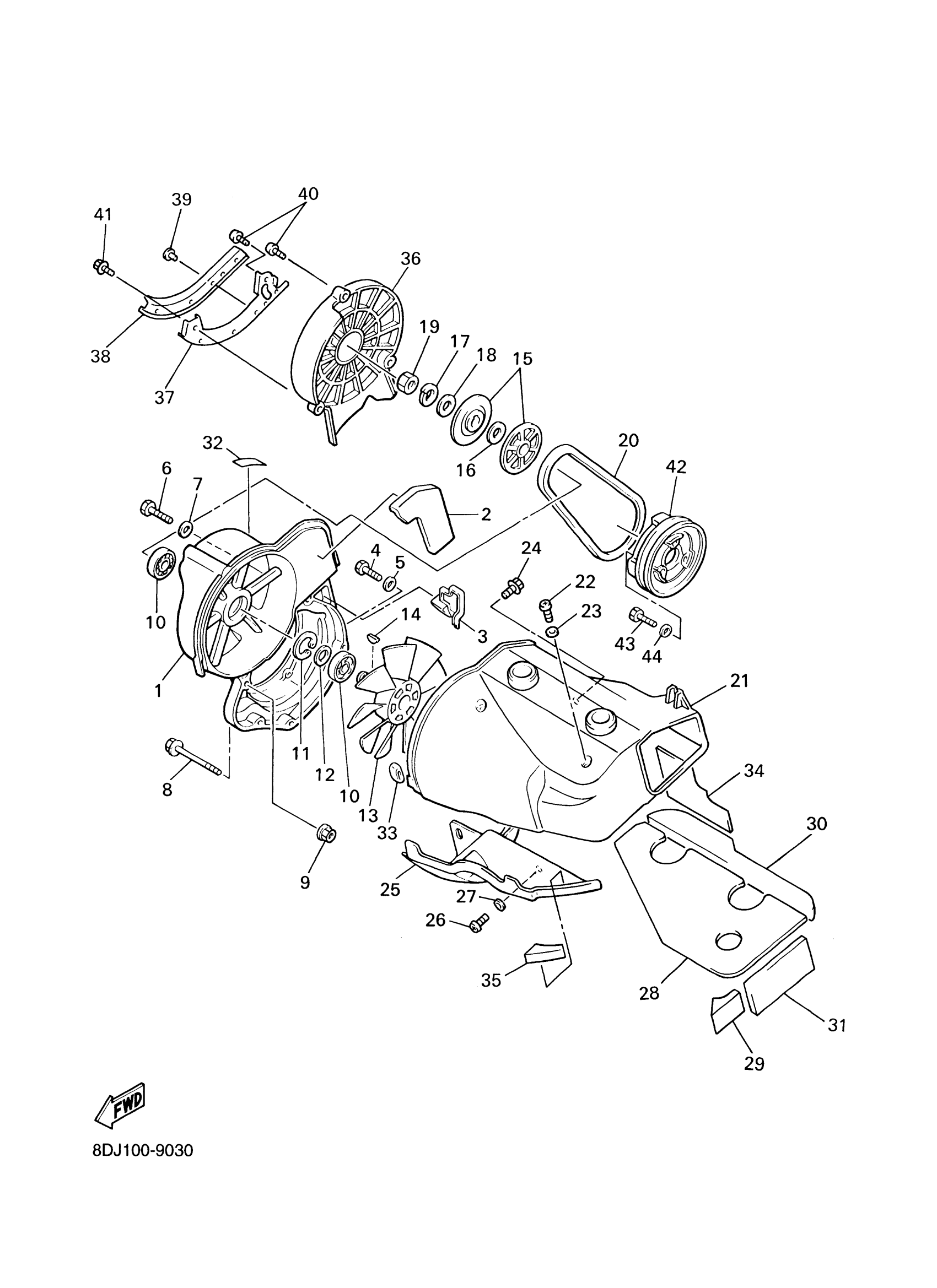

Yamaha PZ500DXF (PHAZER 500 DELUXE (ELEC START)) 8EM1 2001 AIR SHROUD. FAN Diagram
#
1
CASE, FAN
88T-12621-01-00
Unavailable
2
DAMPER, SHROUD 6
8Y0-12679-00-00
Unavailable
3
DAMPER, AIR SHROUD 1
80L-12658-01-00
Unavailable
4
BOLT (8K4)
90101-08499-00
Unavailable
5
WASHER(6TA)
92907-08600-00
$3.03
6
BOLT, HEXAGON
97017-08055-00
$9.49
7
WASHER(6TA)
92907-08600-00
$3.03
8
BOLT, WASHER BASED
90105-084A1-00
$10.49
9
NUT, FLANGE(JN5)
95707-08500-00
$3.13
10
BEARING
93306-20348-00
$40.99
11
CIR-CLIP (70R)
93420-40064-00
Unavailable
12
WASHER, PLATE (8H8)
90201-17713-00
$7.49
13
FAN
8H8-12611-01-00
$89.99
14
KEY, WOOD RUFF (324)
90280-05014-00
$9.49
15
PULLEY 2
8H8-12619-01-00
$37.99
16
WASHER, CLAW (8H8)
90214-17017-00
Unavailable
16
WASHER, CLAW (1.0T)
90214-17018-00
Unavailable
17
WASHER(JN5)
92907-16100-00
Unavailable
18
WASHER, PLATE (8H8)
90201-17713-00
$7.49
19
NUT
90170-16425-00
Unavailable
20
BELT
8DJ-12612-00-00
Unavailable
21
AIR SHROUD, CYLINDER 1
8DJ-12651-00-00
Unavailable
22
SCREW, PAN
98507-06014-00
Unavailable
23
WASHER(6TA)
92907-06600-00
Unavailable
24
BOLT, FLANGE
95817-06014-00
Unavailable
25
AIR SHROUD, CYLINDER 2
8V0-12652-00-00
Unavailable
26
SCREW, PAN
98507-06014-00
Unavailable
27
WASHER(6TA)
92907-06600-00
Unavailable
28
DAMPER, AIR SHROUD 1
8DJ-12658-00-00
Unavailable
29
DAMPER, AIR SHROUD 5
8DJ-12678-00-00
Unavailable
30
DAMPER, AIR SHROUD 3
8DJ-12668-00-00
Unavailable
31
DAMPER, AIR SHROUD 4
8DJ-12669-00-00
Unavailable
32
LABEL, CAUTION
8K4-12628-00-00
Unavailable
33
DAMPER, AIR SHROUD CYLINDER
8H8-12658-00-00
Unavailable
34
DAMPER, SHROUD 7
8DJ-12688-00-00
Unavailable
35
DAMPER, SHROUD 6
8DJ-12679-00-00
Unavailable
36
COVER, FAN CASE
8L0-12616-00-00
Unavailable
37
STAY 1
8Y0-12637-02-00
Unavailable
38
DAMPER, DUCT
8Y0-12687-02-00
Unavailable
39
RIVET(8Y0)
90269-05051-00
Unavailable
40
SCREW, BINDING
98907-06025-00
Unavailable
41
BOLT, FLANGE
95817-06025-00
Unavailable
42
PULLEY, STARTER
8V0-15723-00-00
Unavailable
43
BOLT, HEXAGON
97017-08025-00
Unavailable
44
WASHER(6TA)
92907-08600-00
$3.03
