Description

Price

1

COVER, HEADLIGHT

8CR-77251-01-00

$222.99

2

SCREW, TAPPING(4MV)

97707-50016-00

$2.19

3

WINDSHIELD, VMAX

8CR-77210-00-XX

Unavailable

4

TRIM,UPPER

87K-77213-00-00

Unavailable

5

SCREW, ROUND HEAD(1UX)

90150-05024-00

$5.60

6

NUT(1KT)

90179-05523-00

$8.49

7

FASTNER

82H-77223-00-00

$9.99

8

STAY 1

8CR-77125-00-00

Unavailable

9

STAY 2

8CR-77126-00-00

Unavailable

10

WASHER, PLATE

90201-06557-00

$3.30

11

NUT(6TA)

95317-06600-00

$3.55

12

LABEL, WARNING 1

8DS-77761-00-00

Unavailable

13

EMBLEM

4XV-2341B-00-00

$28.99

14

WINDSHIELD COMP. (8CV-77210-00-00)

8CV-77210-00-XX

Unavailable

15

TRIM,UPPER

87K-77213-00-00

Unavailable

16

WINDSHIELD COMP.

8DM-77210-00-00

Unavailable

17

TRIM, UPPER

8DM-77213-00-00

Unavailable

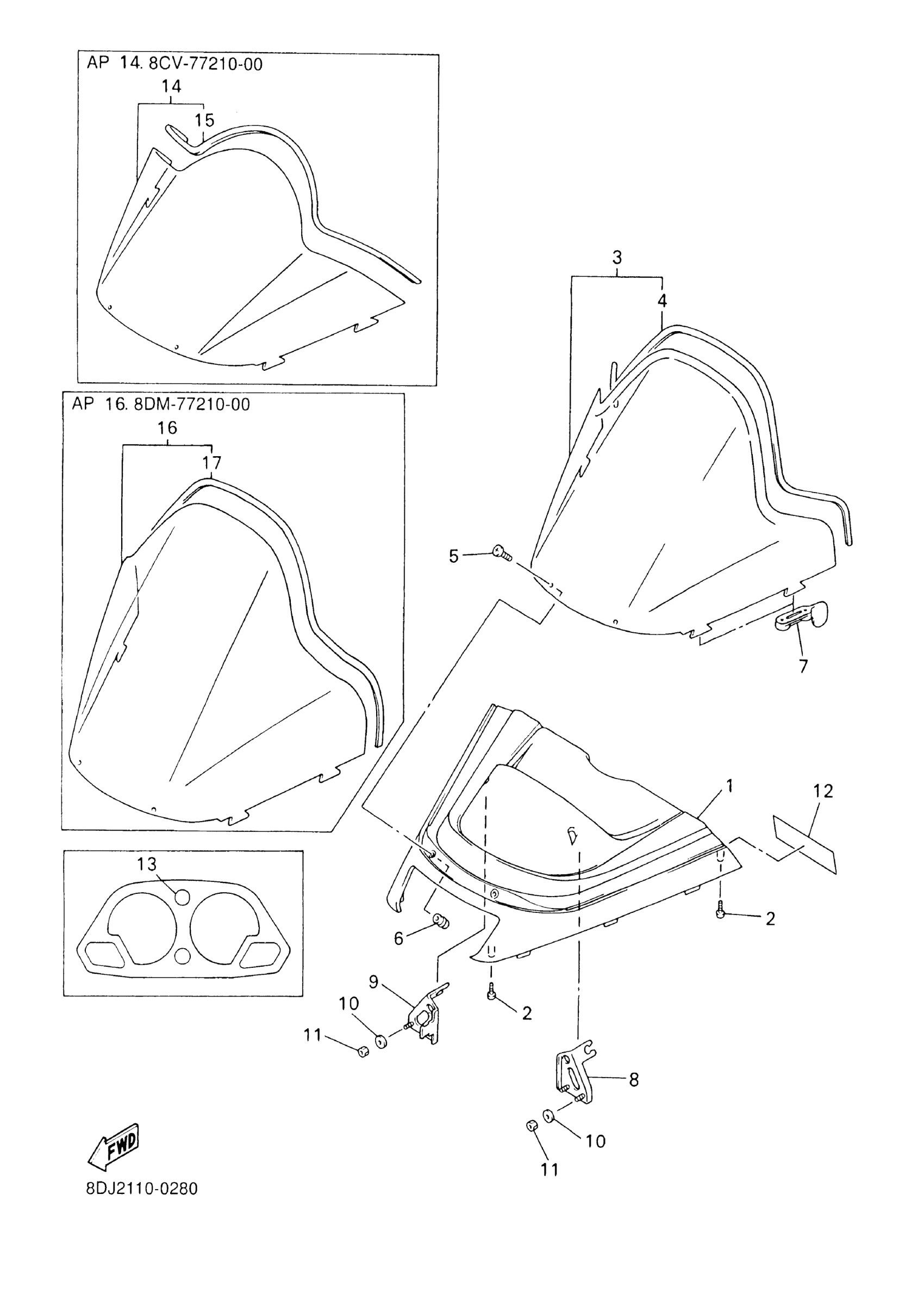

Yamaha PZ500D (PHAZER 500) 8DJ2 2000 WINDSHIELD Diagram

COVER, HEADLIGHT

SCREW, TAPPING(4MV)

WINDSHIELD, VMAX

TRIM,UPPER

SCREW, ROUND HEAD(1UX)

NUT(1KT)

FASTNER

STAY 1

STAY 2

WASHER, PLATE

NUT(6TA)

LABEL, WARNING 1

EMBLEM

WINDSHIELD COMP. (8CV-77210-00-00)

TRIM,UPPER

WINDSHIELD COMP.

TRIM, UPPER
