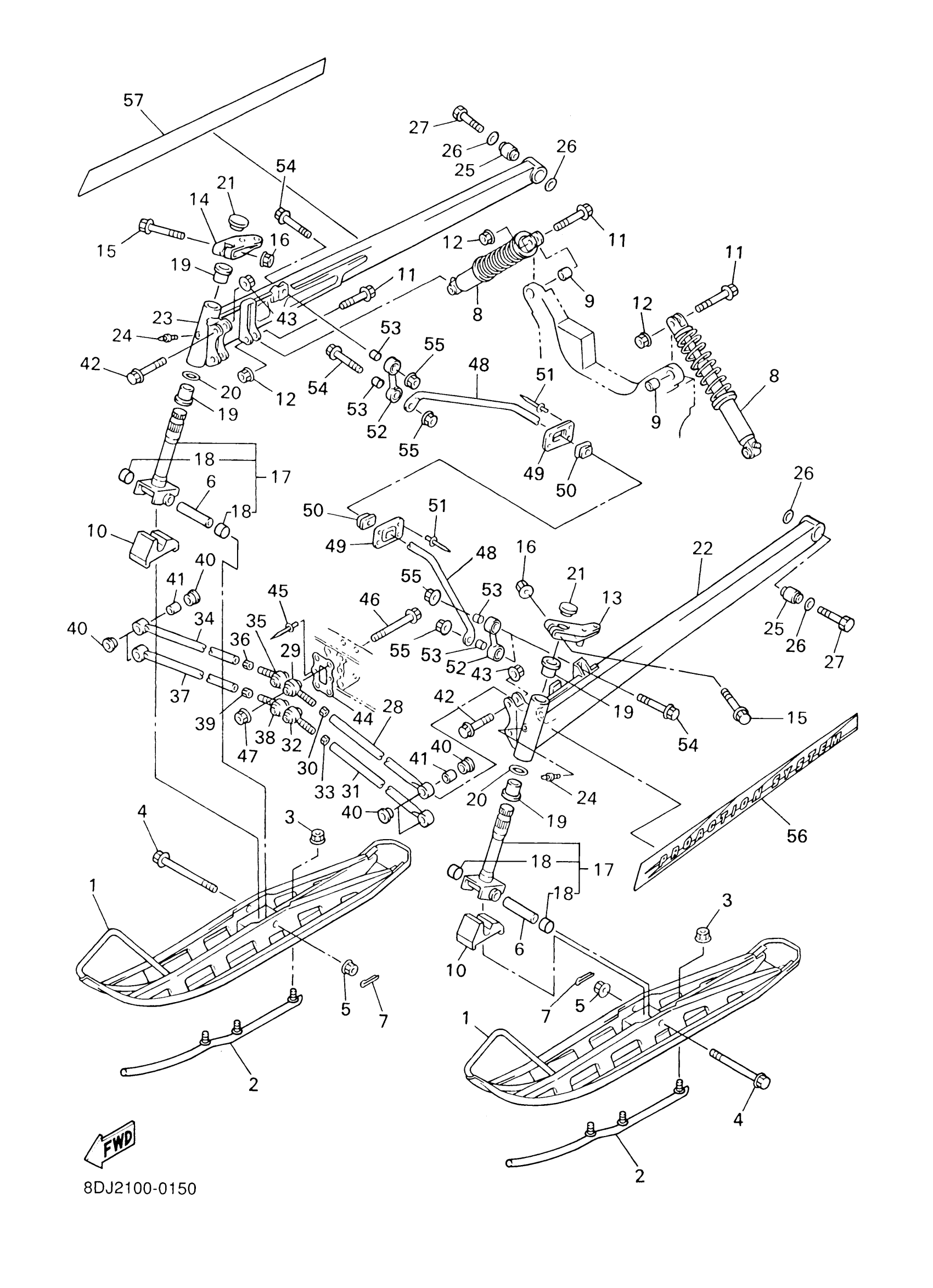

Yamaha PZ500D (PHAZER 500) 8DJ2 2000 SKI Diagram
#
1
SKI COMP. 1
8DJ-23710-00-00
Unavailable
2
RUNNER 1
8DJ-23731-00-00
$162.99
3
NUT, SELF-LOCKING
90185-08169-00
$8.49
4
BOLT, WASHER BASED(83M)
90105-10438-00
Unavailable
5
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
6
COLLAR
90387-1012H-00
$24.99
7
PIN, COTTER
91490-20025-00
$1.99
8
ABSORBER ASSEMBLY 1
8DJ-2376A-00-00
Unavailable
9
BUSH
8CR-2376B-00-00
Unavailable
10
STOPPER 1
8DJ-23743-00-00
Unavailable
11
BOLT, FLANGE
90105-10030-00
$8.49
12
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
13
ARM, OUTSIDE 1
8CR-23851-00-00
$41.99
14
ARM, OUTSIDE 2
8CR-23852-00-00
Unavailable
15
BOLT, FLANGE(87Y)
95817-10055-00
$5.60
16
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
17
COLUMN, SKI ASSY
8CR-23803-01-00
Unavailable
18
BUSH, BIMETAL FORMED(8CJ)
90384-16251-00
Unavailable
19
BUSH, SOLID
90381-25115-00
Unavailable
20
WASHER, PLATE (25G)
90201-301G3-00
Unavailable
21
CAP 1
8CR-23741-10-00
Unavailable
22
ARM, FRONT 1
8CR-2382E-03-00
Unavailable
23
ARM, FRONT 2
8CR-2382F-03-00
Unavailable
24
NIPPLE, GREASE
93700-06M03-00
Unavailable
25
DAMPER
8CR-2516A-00-00
Unavailable
26
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
27
BOLT(8CJ)
90101-12046-00
Unavailable
28
ARM, CONTROL 1
8CR-2384E-02-00
Unavailable
29
JOINT 2
8DN-23823-00-00
Unavailable
30
NUT, HEXAGON
95337-12600-00
Unavailable
31
ARM, CONTROL 2
8CR-2384F-02-00
Unavailable
32
JOINT 3
8DN-23832-00-00
Unavailable
33
NUT
95314-14600-00
Unavailable
34
ARM, CONTROL 1
8CR-2384E-02-00
Unavailable
35
JOINT 2
8DN-23823-00-00
Unavailable
36
NUT, HEXAGON
95337-12600-00
Unavailable
37
ARM, CONTROL 2
8CR-2384F-02-00
Unavailable
38
JOINT 3
8DN-23832-00-00
Unavailable
39
NUT
95314-14600-00
Unavailable
40
BUSH, SOLID(8CJ)
90381-17110-00
Unavailable
41
COLLAR(8CJ)
90387-1009K-00
Unavailable
42
BOLT, FLANGE
90105-10030-00
$8.49
43
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
44
WASHER
8DF-23779-00-00
Unavailable
45
RIVET, BLIND (8J5)
90267-48057-00
Unavailable
46
BOLT, FLANGE
90105-124A2-00
Unavailable
47
NUT, U FLANGE
95607-12200-00
Unavailable
48
BAR, STABILIZER FRONT
8DJ-2386E-00-00
Unavailable
49
COVER, STABILIZER FRONT
8CR-2386H-00-00
Unavailable
50
BUSH, STABILIZER FRONT
8DJ-2386G-00-00
Unavailable
51
RIVET, BLIND(8CR)
90267-47186-00
Unavailable
52
JOINT, STABILIZER 1
8CR-2385L-00-00
Unavailable
53
COLLAR(8V7)
90387-087L3-00
Unavailable
54
BOLT, FLANGE
95817-08040-00
Unavailable
55
NUT, SELF-LOCKING
90185-08169-00
$8.49
56
EMBLEM 15
8DJ-77371-10-00
Unavailable
57
EMBLEM 16
8DJ-77372-10-00
Unavailable
