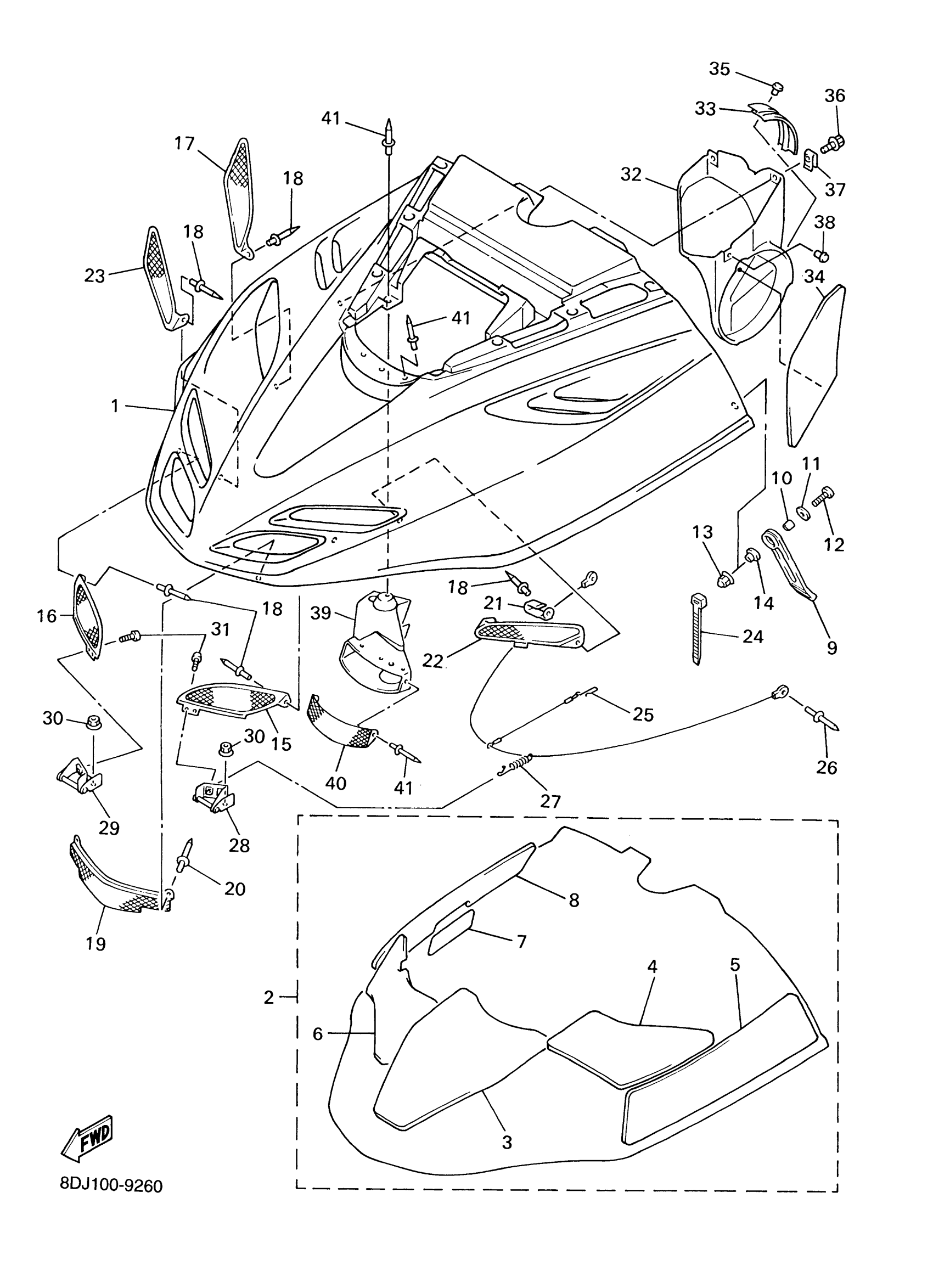

Yamaha PZ500D (PHAZER 500) 8DJ2 2000 SHROUD Diagram
#
1
SHROUD
8DJ-77111-00-00
Unavailable
2
LINING SET
8DJ-W7726-00-00
Unavailable
3
DAMPER, NOISE 12
8DJ-77272-00-00
Unavailable
4
DAMPER, NOISE 15
8DJ-77275-00-00
Unavailable
5
DAMPER, NOISE 16
8CR-77276-00-00
Unavailable
6
DAMPER, NOISE 18
8DJ-77278-00-00
Unavailable
7
TAPE 1
8DJ-7717E-00-00
Unavailable
8
. SHIELD, HEAT
8DJ-2199H-00-00
Unavailable
9
BODY, LATCH 1
8V0-77171-00-00
$21.99
10
COLLAR (420)
90387-06241-00
$8.49
11
WASHER, PLATE
90201-06557-00
$3.30
12
SCREW, BINDING
98907-06025-00
$8.49
13
NUT, CROWN(1FN)
90176-06055-00
$5.60
14
C0LLAR
90387-062M9-00
$9.49
15
LOUVER 1
8CR-77131-00-00
$29.99
16
LOUVER 2
8CR-77132-00-00
Unavailable
17
LOUVER 3
8DJ-77133-00-00
Unavailable
18
RIVET, BLIND(8CJ)
90267-48182-00
Unavailable
19
LOUVER 4
8CR-77134-00-00
Unavailable
20
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
21
CLAMP(51Y)
90465-08277-00
Unavailable
22
LOUVER 1
8DJ-77441-00-00
Unavailable
23
LOUVER 2
8DJ-77442-00-00
Unavailable
24
CLAMP
90464-13077-00
Unavailable
25
STOPPER, SHROUD
8DJ-77118-00-00
Unavailable
26
RIVET, BLIND
90267-48018-00
Unavailable
27
CLAMP, ROD
89A-77159-00-00
Unavailable
28
HINGE ASSY
8CR-77140-00-00
Unavailable
29
HINGE ASSY 2
8CR-7714A-00-00
Unavailable
30
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
31
SCREW, BINDING
98907-06014-00
Unavailable
32
DUCT
8DJ-77194-00-00
Unavailable
33
BUSH, RUBBER 1
8DJ-77515-00-00
Unavailable
34
DAMPER, NOISE 13
8DJ-77273-00-00
Unavailable
35
RIVET(81E)
90269-05055-00
Unavailable
36
BOLT, FLANGE
95817-06016-00
Unavailable
37
NUT, SPRING(4ES)
90183-06069-00
Unavailable
38
RIVET(4PH)
90269-07077-00
Unavailable
39
DUCT
8CR-77194-00-00
Unavailable
40
LOUVER 5
8CR-77109-00-00
Unavailable
41
RIVET, BLIND(8CJ)
90267-48182-00
Unavailable
