- PZ500D (PHAZER 500) 8DJ2 2000
ALTERNATE (BODY - RIG) 2

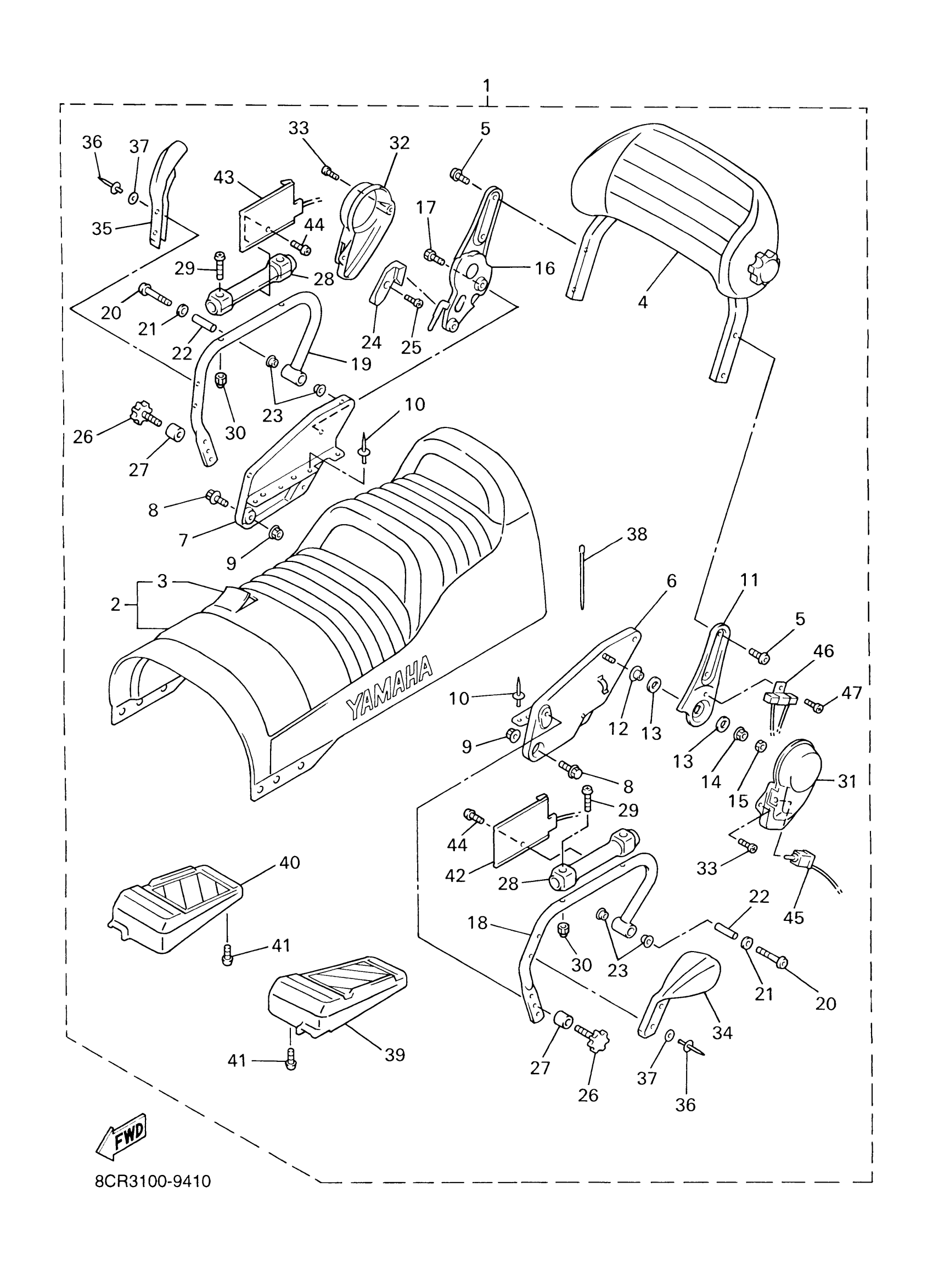

Yamaha PZ500D (PHAZER 500) 8DJ2 2000 ALTERNATE (BODY - RIG) 2 Diagram
#
1
DELUXE 2-UP SEAT ASSY
8CR-W247R-10-00
Unavailable
2
. DOUBLE SEAT ASSY
8CW-24730-20-00
Unavailable
3
.. COVER, SEAT
8CW-2470F-20-00
Unavailable
4
SEAT BACK ASSY
8DM-24790-00-00
Unavailable
5
BOLT, BUTTON HEAD
92017-10016-00
$8.49
6
STAY, FRONT 1
8DM-2474F-00-00
Unavailable
7
STAY, FRONT 2
8DM-2474G-00-00
Unavailable
8
BOLT, FLANGE
95817-08014-00
$5.60
9
NUT, FLANGE(JN5)
95707-08500-00
$3.13
10
RIVET, BLIND(8CH)
90267-47187-00
$2.34
11
ARM 2
8DM-2477R-00-00
Unavailable
12
COLLAR(4BP)
90387-083Y8-00
$18.99
13
WASHER, PLATE
90202-12236-00
Unavailable
14
NUT, FLANGE(JN5)
95707-08500-00
$3.13
15
NUT, HEXAGON SMALL
95317-08700-00
$9.49
16
SEAT LEVER ASSY
8DM-24760-00-00
Unavailable
17
BOLT, HEXAGON
97027-10014-00
Unavailable
18
BRACKET, ASSIST GRIP 1
8DM-2474H-10-00
Unavailable
19
. BRACKET, ASSIST GRIP 2
8DM-2474J-10-00
Unavailable
20
BOLT,BUTTON
92017-10070-00
Unavailable
21
WASHER, PLATE(3BM)
90201-105R9-00
Unavailable
22
COLLAR 802473690000
90387-10090-00
Unavailable
23
COLLAR (8U7)
90387-145G7-00
Unavailable
24
LEVER, SEAT
8DM-2477F-00-00
Unavailable
25
SCREW, TAPPING(JN5)
97707-40008-00
Unavailable
26
BODY, SEAT LOCK
8CW-2479H-00-00
Unavailable
27
DAMPER, SEAT
8CW-24737-00-00
Unavailable
28
ASSIST, GRIP
8DM-2474A-00-00
Unavailable
29
SCREW, BINDING
98907-06035-00
Unavailable
30
NUT, CROWN(2GM)
90176-06065-00
Unavailable
31
COVER
8DM-24796-00-00
Unavailable
32
COVER,2
8DM-2475X-01-00
Unavailable
33
SCREW, TRUSS TAP.
97707-40012-00
Unavailable
34
PROTECTOR,1
8DM-2476U-00-00
Unavailable
35
PROTECTOR,2
8DM-2476V-00-00
Unavailable
36
RIVET, BLIND (8M6)
90267-48051-00
Unavailable
37
WASHER, PLAIN (3GDF)
90201-051K1-00
Unavailable
38
CLAMP(4FM)
90464-15195-00
Unavailable
39
FOOTREST, REAR 1
8DM-27431-03-00
Unavailable
40
FOOTREST, REAR 2
8DM-27441-03-00
Unavailable
41
SCREW, TAPPING(4TV)
90167-05078-00
Unavailable
42
ASSIST GRIP WARMER ASSY, 1
8DM-2474B-00-00
Unavailable
43
ASSIST GRIP WARMER ASSY, 2
8DM-2474C-00-00
Unavailable
44
SCREW, TRUSS TAP.
97707-40016-00
Unavailable
45
SWITCH
8DM-82917-01-00
Unavailable
46
RESISTOR ASSY
8DM-85370-00-00
Unavailable
47
SCREW, BINDING
98907-06012-00
Unavailable
