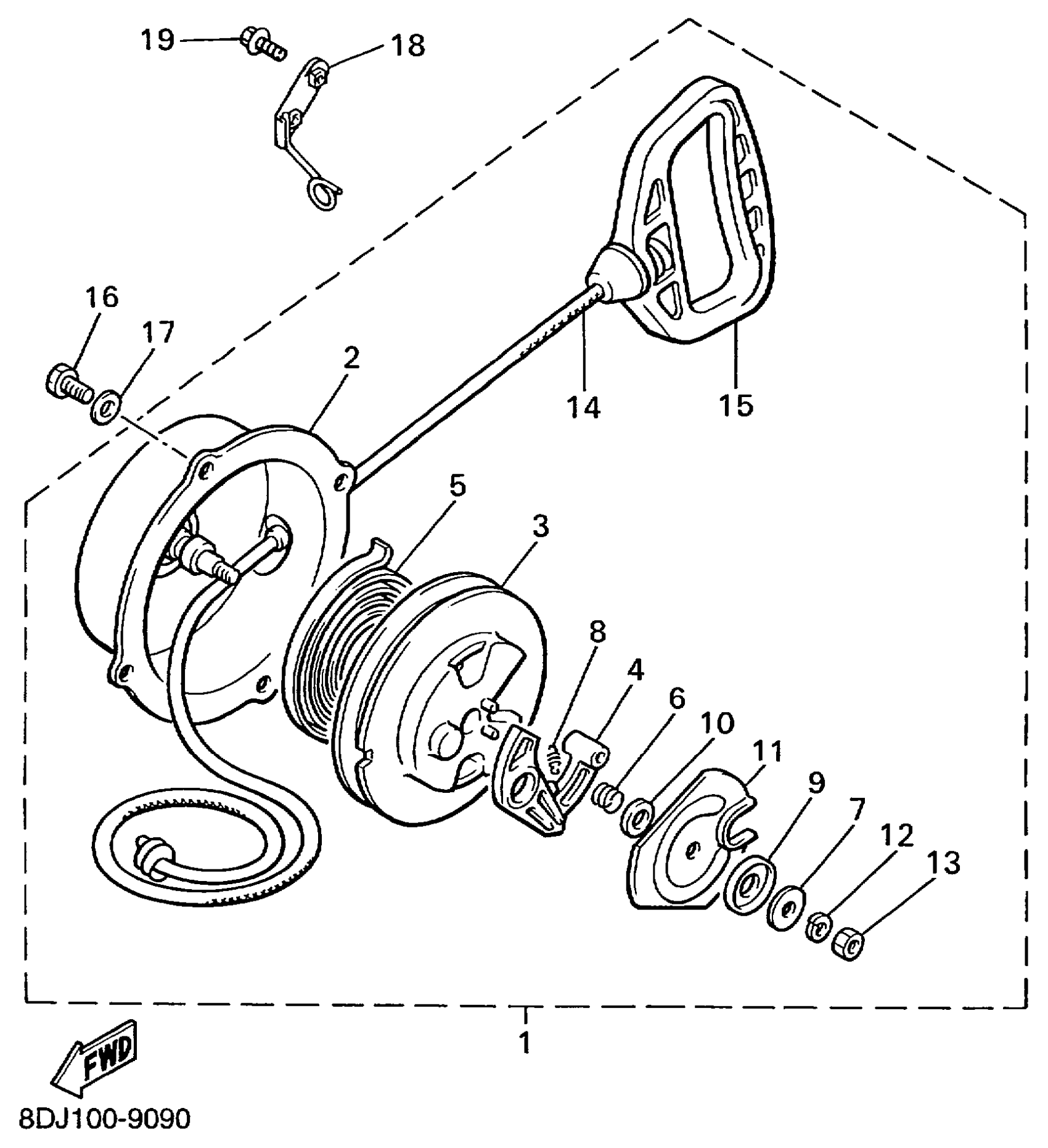

Yamaha PZ500C (PHAZER 500) 8DJ1 1999 STARTER Diagram

#

Description
Price

1

STARTER ASSY

8V0-15710-00-00

Unavailable

2

. CASE, STARTER

8V0-15711-00-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$45.63

4

PAWL, DRIVE

8F3-15741-01-00

$21.05

5

SPRING, STARTER

8F3-15713-01-00

$41.31

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.15

7

WASHER, THRUST

8F3-15739-01-00

$11.03

8

SPRING, RETURN

8F3-15734-00-00

$5.12

9

WASHER, THRUST

8G5-15739-00-00

$6.94

10

COLLOR

82M-15779-00-00

$6.88

11

PLATE, DRIVE

8F3-15716-03-00

$23.00

12

WASHER, SPRING

92995-06100-00

$2.99

13

NUT(650)

95380-06700-00

$6.17

14

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$27.50

15

HANDLE, STARTER

8F3-15755-00-00

$23.00

16

BOLT(8CP)

97017-06014-00

$5.12

17

WASHER(6TA)

92907-06600-00

$0.78

18

GUIDE, ROPE

8CR-15758-00-00

Unavailable

19

BOLT, FLANGE

95817-06012-00

$1.49
