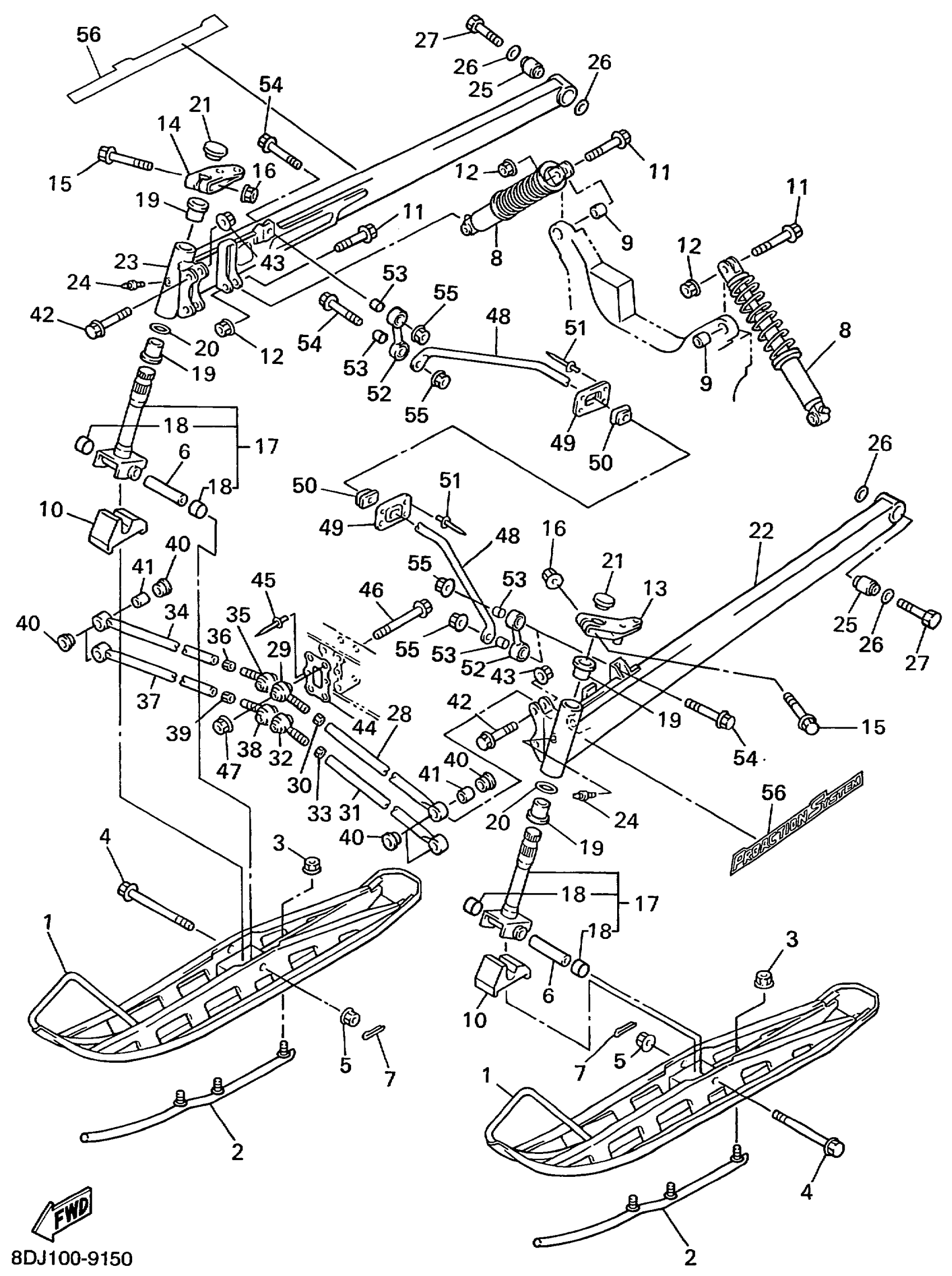

Yamaha PZ500C (PHAZER 500) 8DJ1 1999 SKI Diagram

#

Description
Price

1

SKI COMP. 1

8DJ-23710-00-00

Unavailable

2

RUNNER 1

8DJ-23731-00-00

Unavailable

3

NUT, SELF-LOCKING

90185-08169-00

$7.09

4

BOLT, WASHER BASED(83M)

90105-10438-00

$7.57

5

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

6

COLLAR

90387-1012H-00

$20.68

7

PIN, COTTER

91490-20025-00

$1.31

8

ABSORBER ASSEMBLY 1

8DJ-2376A-00-00

Unavailable

9

BUSH

8CR-2376B-00-00

Unavailable

10

STOPPER 1

8DJ-23743-00-00

Unavailable

11

BOLT, FLANGE

90105-10030-00

$7.54

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

13

ARM, OUTSIDE 1

8CR-23851-00-00

$38.43

14

ARM, OUTSIDE 2

8CR-23852-00-00

Unavailable

15

BOLT, FLANGE(87Y)

95817-10055-00

$4.54

16

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

17

COLUMN, SKI ASSY

8CR-23803-01-00

$124.84

18

BUSH, BIMETAL FORMED(8CJ)

90384-16251-00

$6.17

19

BUSH, SOLID

90381-25115-00

$8.09

20

WASHER, PLATE (25G)

90201-301G3-00

$7.25

21

CAP 1

8CR-23741-10-00

$5.75

22

ARM, FRONT 1

8CR-2382E-03-00

Unavailable

23

ARM, FRONT 2

8CR-2382F-03-00

$442.62

24

NIPPLE, GREASE

93700-06M03-00

$7.15

25

DAMPER

8CR-2516A-00-00

$22.92

26

WASHER, PLATE(8CJ)

90201-120T5-00

$4.91

27

BOLT(8CJ)

90101-12046-00

$7.57

28

ARM, CONTROL 1

8CR-2384E-02-00

$59.52

29

JOINT 2

8DN-23823-00-00

$101.48

30

NUT, HEXAGON

95337-12600-00

$6.00

31

ARM, CONTROL 2

8CR-2384F-02-00

Unavailable

32

JOINT 3

8DN-23832-00-00

Unavailable

33

NUT

95314-14600-00

Unavailable

34

ARM, CONTROL 1

8CR-2384E-02-00

$59.52

35

JOINT 2

8DN-23823-00-00

$101.48

36

NUT, HEXAGON

95337-12600-00

$6.00

37

ARM, CONTROL 2

8CR-2384F-02-00

Unavailable

38

JOINT 3

8DN-23832-00-00

Unavailable

39

NUT

95314-14600-00

Unavailable

40

BUSH, SOLID(8CJ)

90381-17110-00

$8.08

41

COLLAR(8CJ)

90387-1009K-00

$22.03

42

BOLT, FLANGE

90105-10030-00

$7.54

43

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.32

44

WASHER

8DF-23779-00-00

$20.51

45

RIVET, BLIND (8J5)

90267-48057-00

Unavailable

46

BOLT, FLANGE

90105-124A2-00

Unavailable

47

NUT, U FLANGE

95607-12200-00

$5.43

48

BAR, STABILIZER FRONT

8DJ-2386E-00-00

Unavailable

49

COVER, STABILIZER FRONT

8CR-2386H-00-00

Unavailable

50

BUSH, STABILIZER FRONT

8DJ-2386G-00-00

Unavailable

51

RIVET, BLIND(8CR)

90267-47186-00

$2.31

52

JOINT, STABILIZER 1

8CR-2385L-00-00

$112.95

53

COLLAR(8V7)

90387-087L3-00

$7.92

54

BOLT, FLANGE

95817-08040-00

$5.43

55

NUT, SELF-LOCKING

90185-08169-00

$7.09

56

EMBLEM 15

8DJ-77371-00-00

Unavailable
