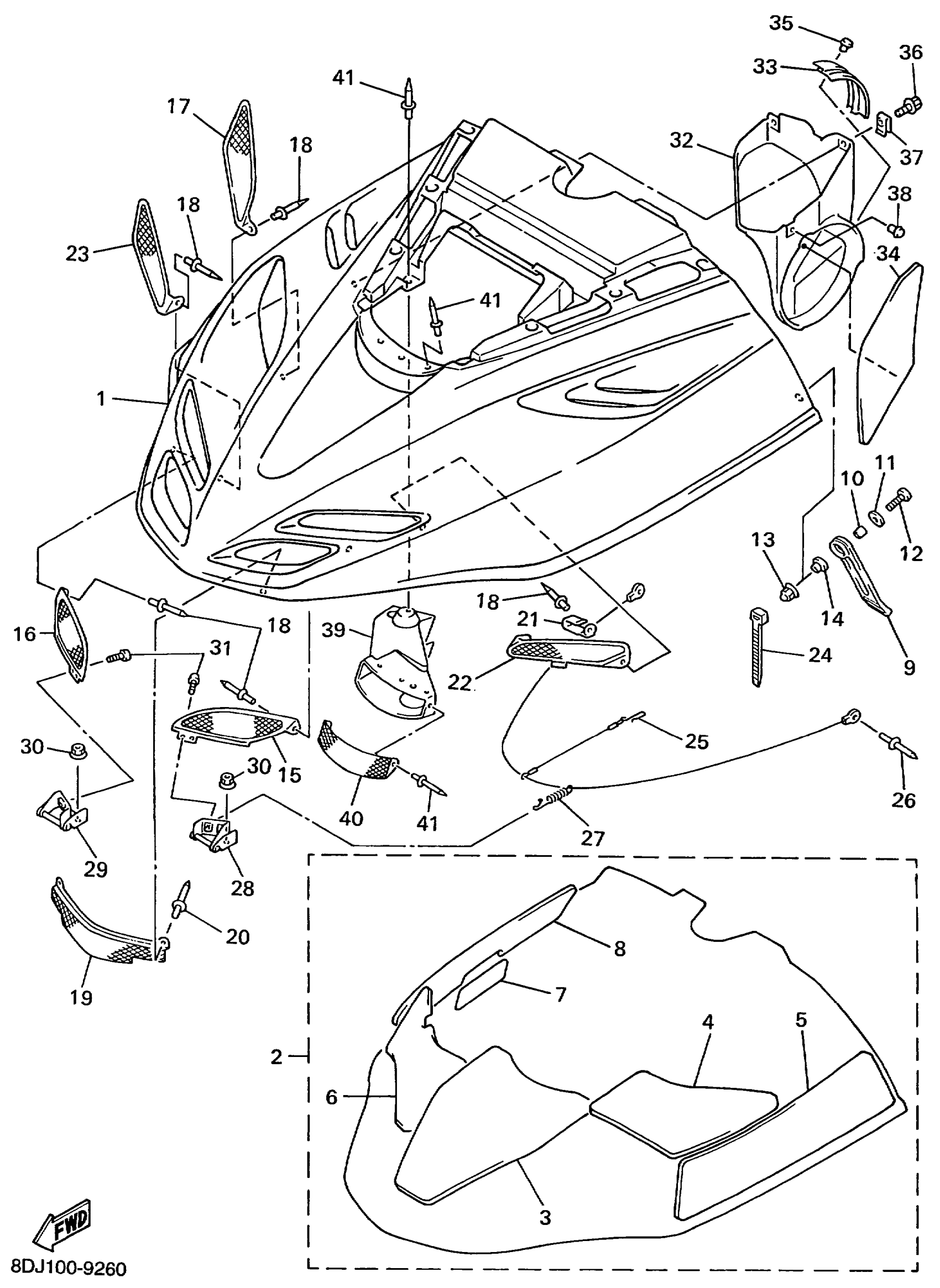

Yamaha PZ500C (PHAZER 500) 8DJ1 1999 SHROUD Diagram

#

Description
Price

1

SHROUD

8DJ-77111-00-00

Unavailable

2

LINING SET

8DJ-W7726-00-00

Unavailable

3

DAMPER, NOISE 12

8DJ-77272-00-00

$30.26

4

DAMPER, NOISE 15

8DJ-77275-00-00

$9.66

5

DAMPER, NOISE 16

8CR-77276-00-00

$14.71

6

DAMPER, NOISE 18

8DJ-77278-00-00

$37.03

7

TAPE 1

8DJ-7717E-00-00

$5.20

8

. SHIELD, HEAT

8DJ-2199H-00-00

Unavailable

9

BODY, LATCH 1

8V0-77171-00-00

$18.37

10

COLLAR (420)

90387-06241-00

$6.18

11

WASHER, PLATE

90201-06557-00

$2.75

12

SCREW, BINDING

98907-06025-00

$6.18

13

NUT, CROWN(1FN)

90176-06055-00

$3.89

14

C0LLAR

90387-062M9-00

$6.60

15

LOUVER 1

8CR-77131-00-00

Unavailable

16

LOUVER 2

8CR-77132-00-00

Unavailable

17

LOUVER 3

8DJ-77133-00-00

$29.80

18

RIVET, BLIND(8CJ)

90267-48182-00

$1.78

19

LOUVER 4

8CR-77134-00-00

Unavailable

20

RIVET, BLIND (8L0)

90267-48059-00

$2.46

21

CLAMP(51Y)

90465-08277-00

$9.43

22

LOUVER 1

8DJ-77441-00-00

Unavailable

23

LOUVER 2

8DJ-77442-00-00

$26.85

24

CLAMP

90464-13077-00

$6.68

25

STOPPER, SHROUD

8DJ-77118-00-00

Unavailable

26

RIVET, BLIND

90267-48018-00

Unavailable

27

CLAMP, ROD

89A-77159-00-00

$9.75

28

HINGE ASSY

8CR-77140-00-00

Unavailable

29

HINGE ASSY 2

8CR-7714A-00-00

$21.11

30

NUT, FLANGE(4MV)

95707-06500-00

$0.78

31

SCREW, BINDING

98907-06014-00

$5.60

32

DUCT

8DJ-77194-00-00

Unavailable

33

BUSH, RUBBER 1

8DJ-77515-00-00

Unavailable

34

DAMPER, NOISE 13

8DJ-77273-00-00

Unavailable

35

RIVET(81E)

90269-05055-00

$7.02

36

BOLT, FLANGE

95817-06016-00

$1.49

37

NUT, SPRING(4ES)

90183-06069-00

$5.93

38

RIVET(4PH)

90269-07077-00

$6.92

39

DUCT

8CR-77194-00-00

$49.51

40

LOUVER 5

8CR-77109-00-00

Unavailable

41

RIVET, BLIND(8CJ)

90267-48182-00

$1.78
