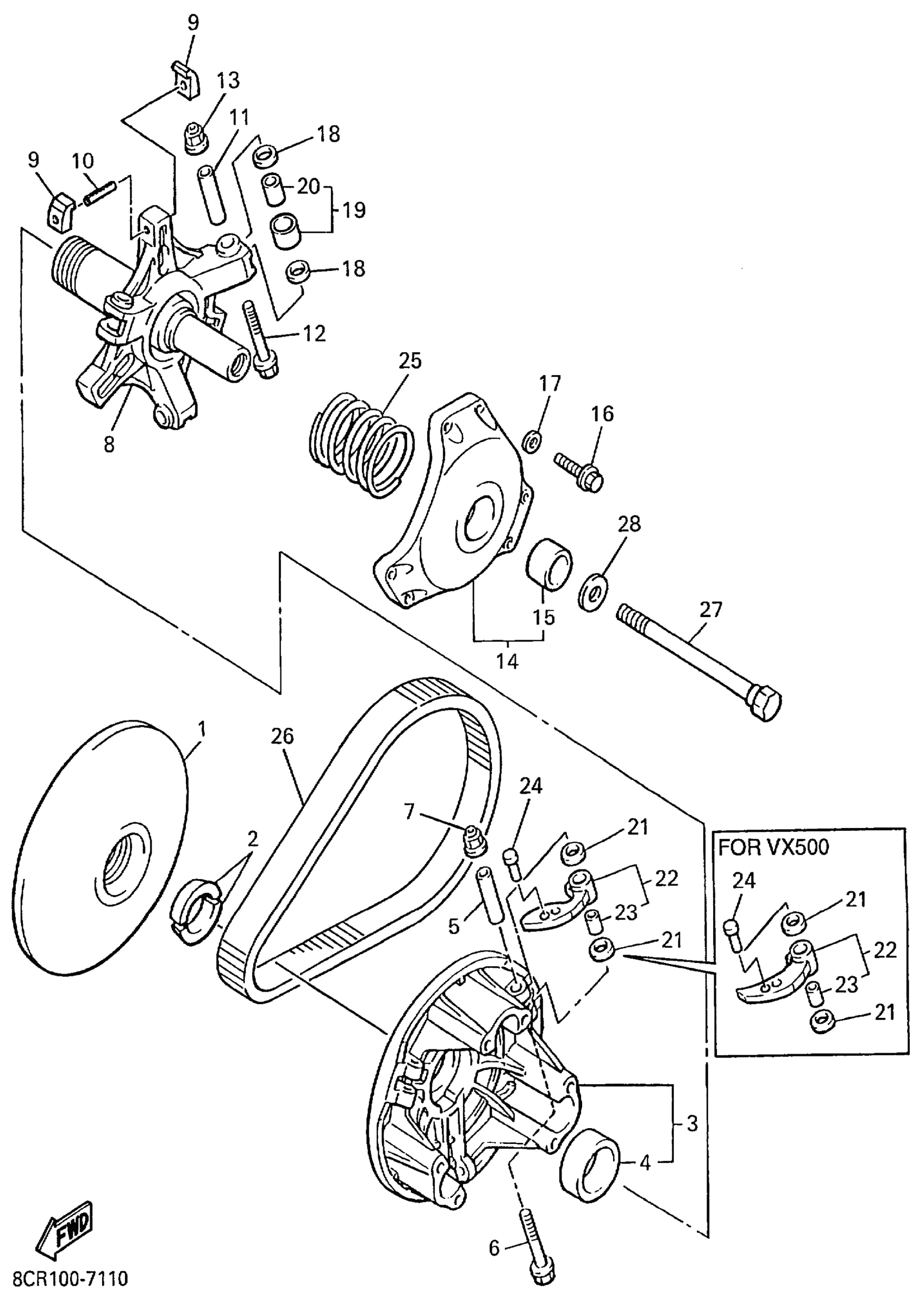

Yamaha PZ500C (PHAZER 500) 8DJ1 1999 PRIMARY SHEAVE Diagram

#

Description
Price

1

SHEAVE, PRIMARY FIXED

8CR-17611-02-00

$210.78

2

STOPPER

8V0-17639-00-00

$10.52

3

PRIMARY SLIDING SHEAVE COMP.

8BV-17620-11-00

$430.68

4

BUSH, BIMETAL FORMED(8AS)

90384-41242-00

$50.08

5

COLLAR

90387-0514T-00

$14.86

6

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

7

NUT, S/L FLANGE

95607-05200-00

$6.86

8

SPIDER COMP.

8CA-17640-12-00

Unavailable

9

SLIDER

8BW-17653-00-00

$13.86

10

PIN, SPRING (7F7)

91609-50032-00

$3.66

11

COLLAR

90387-0514U-00

$15.86

12

BOLT, WASHER BASED(88R)

90105-05644-00

$1.94

13

NUT, S/L FLANGE

95607-05200-00

$6.86

14

PRIMARY SHEAVE CAP COMP.

8BV-17630-12-00

$90.97

15

BUSH, SOLID(8CP)

90380-28237-00

$31.34

16

BOLT, HEXAGON

97017-06030-00

$3.00

17

WASHER(6TA)

92907-06600-00

$0.78

18

WASHER, PLATE(8BV)

90202-09227-00

$7.48

19

ROLLER, COMP

8CR-17624-30-00

$63.88

20

. BUSH, SOLID

90380-09245-00

$31.67

21

WASHER, PLATE(88R)

90202-08204-00

$5.72

22

WEIGHT COMP

8DJ-17605-00-00

$113.05

23

. BUSH, SOLID

90380-08244-00

Unavailable

24

RIVET, COUNTERSUNK (8AB1)

90261-06033-00

$6.78

24

RIVET, COUNTERSUNK HEAD(8AB)

90261-06034-00

$5.62

25

SPRING, COMPRESSION(8CG)

90501-585J3-00

$28.94

26

V-BELT

89L-17641-02-00

Unavailable

27

BOLT (L=156.5MM)

8V0-17647-10-00

$21.45

28

WASHER(JN5)

92907-16100-00

$12.08
