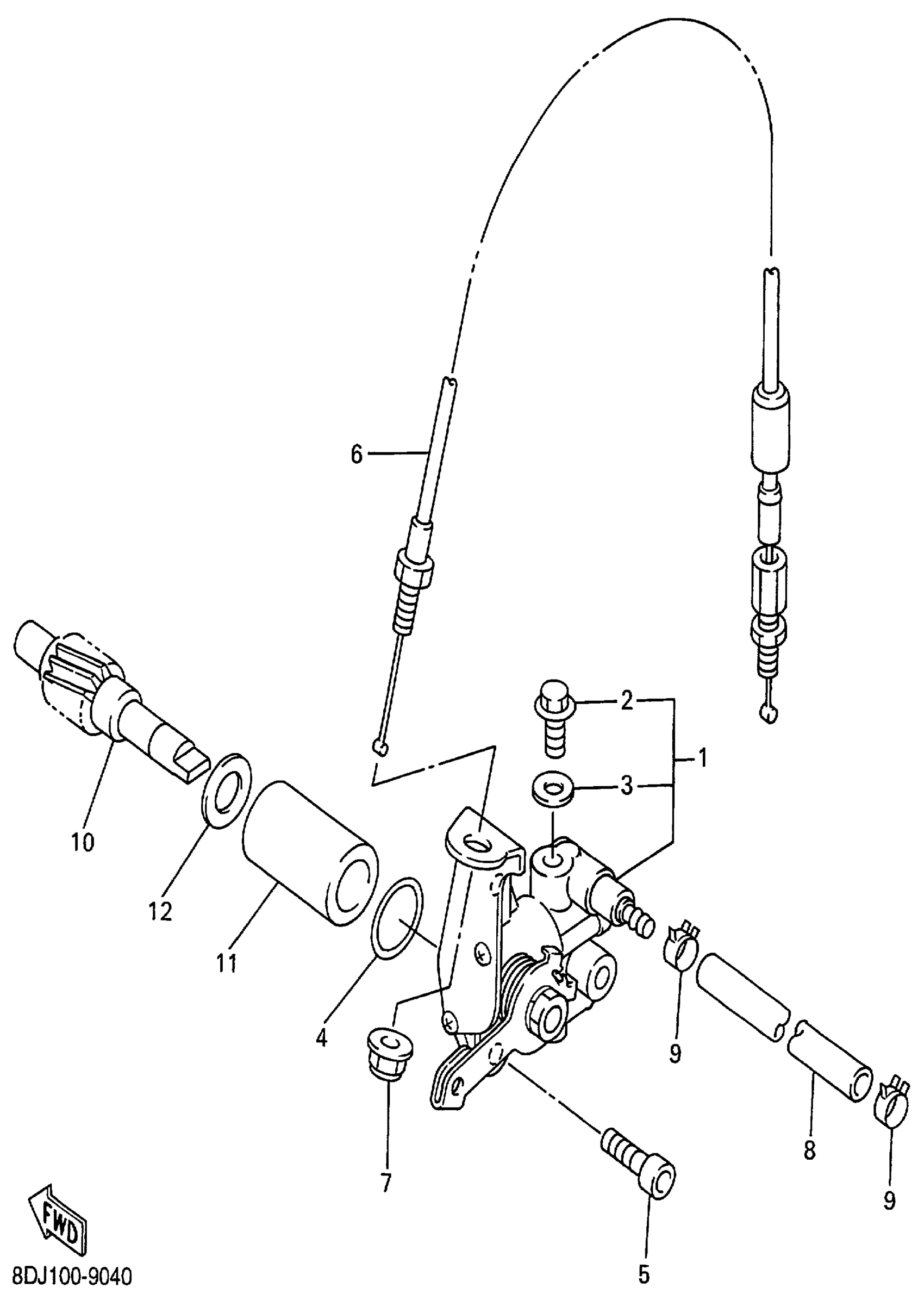

Yamaha PZ500C (PHAZER 500) 8DJ1 1999 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

8DJ-13100-00-00

Unavailable

2

BOLT, BREATHER

89A-13185-00-00

Unavailable

3

. GASKET, BREATHER BOLT

89A-13187-00-00

Unavailable

4

O-RING(3SB)

93210-20712-00

$3.72

5

BOLT,SOCKET

91317-05014-00

$6.36

6

PUMP CABLE ASSY

8DJ-26320-01-00

Unavailable

7

NUT, NYLON

95717-08300-00

$2.36

8

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$8.73

9

CLIP (2A6)

90468-02025-00

$6.67

10

GEAR, WORM WHEEL

8DJ-13124-00-00

Unavailable

11

METAL, WORM SHAFT OUTER

8DJ-13176-00-00

Unavailable

12

WASHER PLATE (3L6)

90201-08759-00

$2.39
