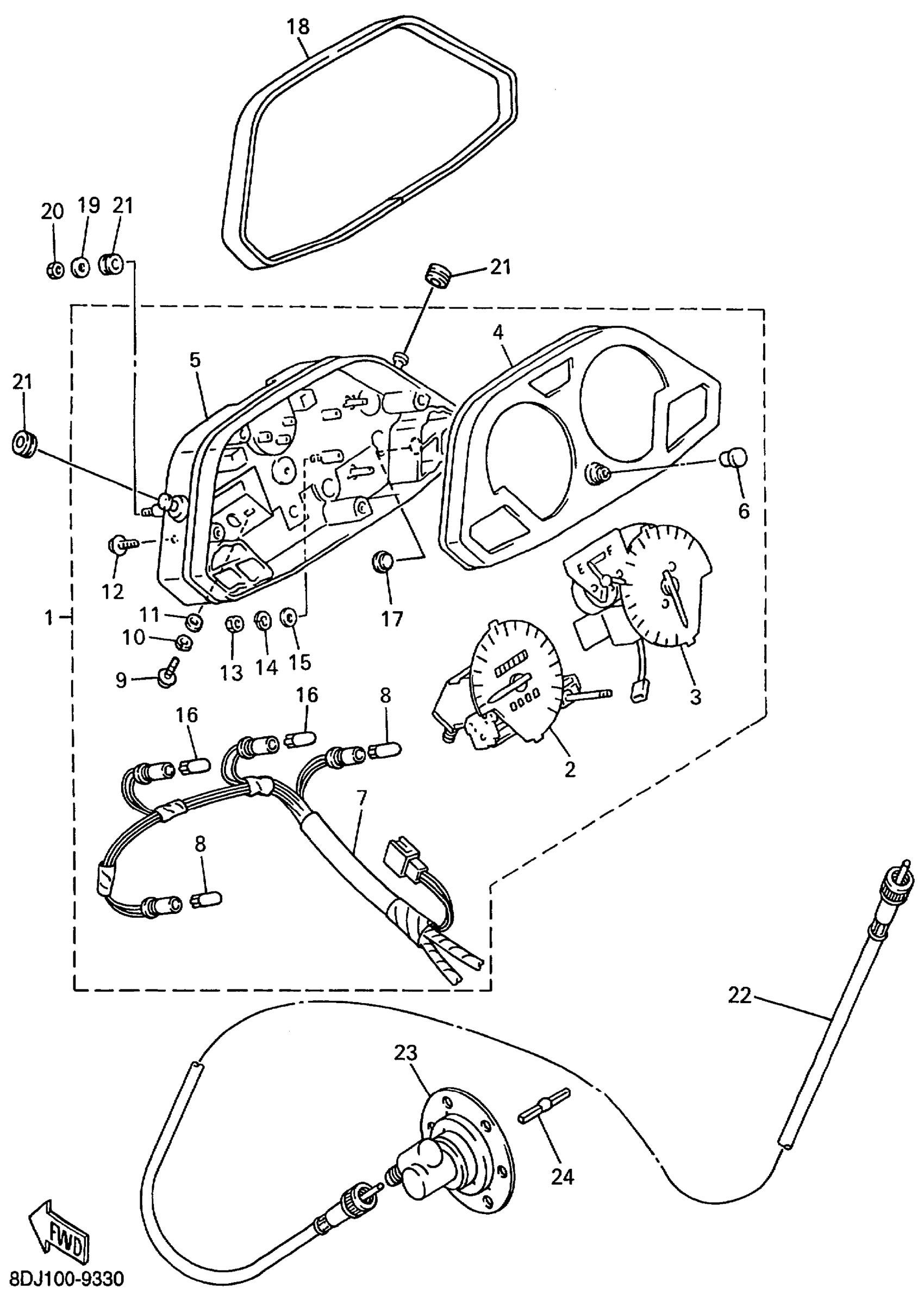

Yamaha PZ500C (PHAZER 500) 8DJ1 1999 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

8DJ-83500-40-00

Unavailable

2

SPEEDOMETER ASSY

8CR-83580-40-00

Unavailable

3

TACHOMETER ASSY

8CR-83540-40-00

$295.83

4

. COVER, METER

8DJ-83559-40-00

Unavailable

5

. CASE, UNDER

8DJ-8353H-40-00

Unavailable

6

KNOB, TRIP METER

29L-83578-00-00

$24.29

7

SOCKET CORD ASSY

8DJ-83509-40-00

$65.77

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.64

9

SCREW, PAN HEAD

98517-04012-00

$3.28

10

WASHER(6TA)

92907-04100-00

$5.98

11

WASHER(JF2)

92907-04600-00

$1.23

12

SCREW, TRUSS TAP.

97707-40014-00

$6.00

13

NUT(6TA)

95307-04600-00

$6.69

14

WASHER(6TA)

92907-04100-00

$5.98

15

WASHER(JF2)

92907-04600-00

$1.23

16

BULB (12V-1.7W)

3GM-83517-00-00

Unavailable

17

. PLUG, BLIND

4BE-8352K-00-00

Unavailable

18

TRIM 5

8CR-77225-00-00

Unavailable

19

WASHER, PLATE

90201-06380-00

$0.57

20

NUT(6TA)

95317-06600-00

$2.69

21

DAMPER

5J0-83513-00-00

$14.09

22

SPEEDOMETER CABLE ASSY

8CR-83550-10-00

$72.28

23

METER GEAR HOUSING COMP.

8CR-47700-00-00

$142.55

24

JOINT

8K4-47715-00-00

$4.60
