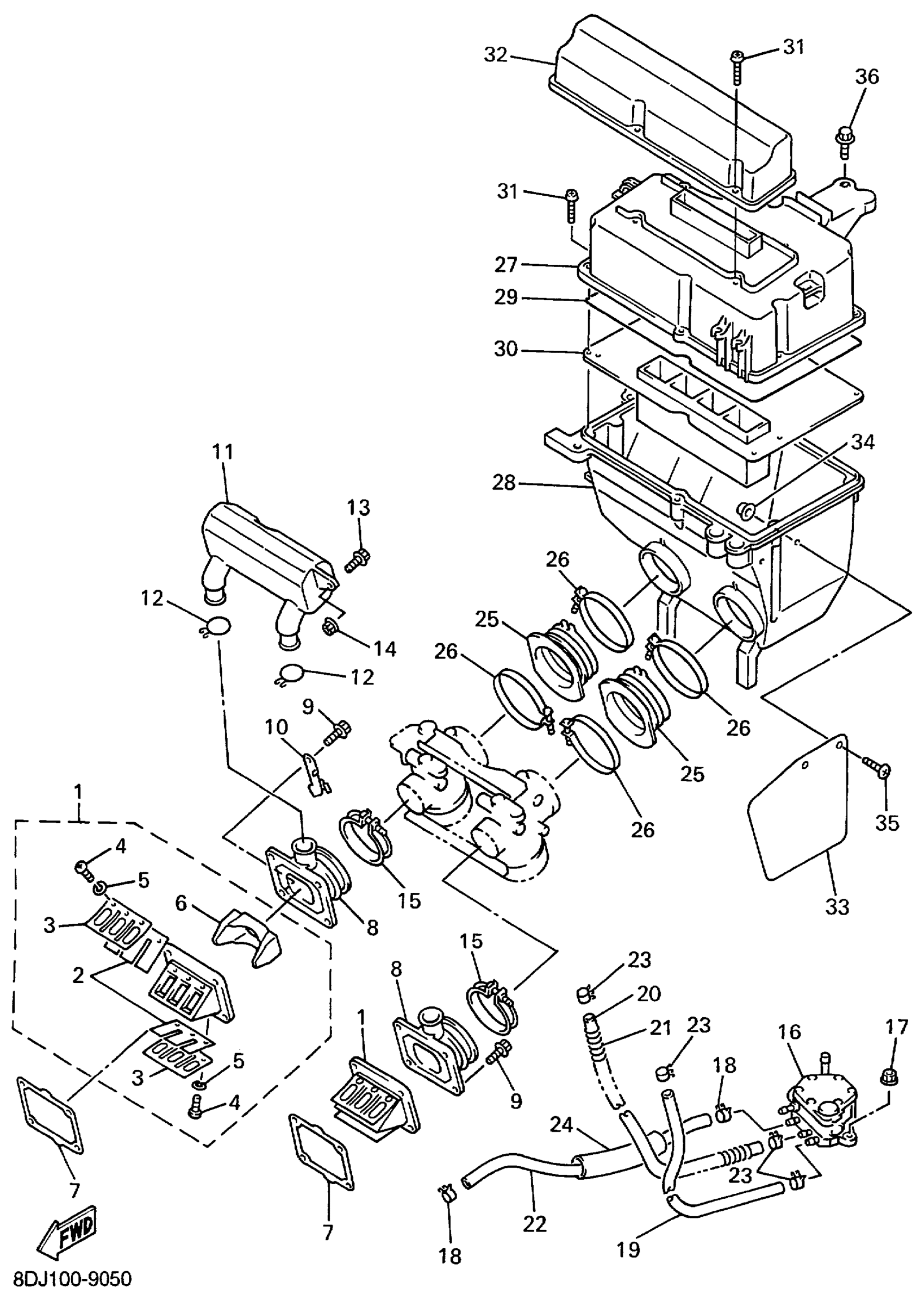

Yamaha PZ500C (PHAZER 500) 8DJ1 1999 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

8DJ-13610-01-00

$135.03

2

REED, VALVE

3SP-13613-01-00

$26.43

3

STOPPER, REED VALVE

8DJ-13616-00-00

$15.54

4

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.74

5

WASHER, SPRING

92990-03100-00

$6.17

6

. SPACER, REED VALVE

4DA-13625-00-00

Unavailable

7

GASKET, VALVE SEAT

80L-13621-01-00

$9.80

8

MANIFOLD, INTAKE

8DJ-13555-00-00

Unavailable

9

BOLT, FLANGE

95817-06020-00

$2.69

10

CLAMP

90462-10243-00

Unavailable

11

CHAMBER, AIR

8DJ-13581-00-00

$21.57

12

CLIP(8V0)

90467-24096-00

$6.38

13

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$2.69

14

NUT, NYLON

95707-05300-00

$2.74

15

BAND

86M-13575-00-00

$16.45

16

FUEL PUMP ASSY

8CR-24410-01-00

$190.38

17

NUT, FLANGE(4MV)

95707-06500-00

$0.78

18

CLIP (7K7)

90467-11044-00

$5.10

19

HOSE (L280)

90445-09004-00

$3.15

20

HOSE (L420)

90445-092K1-00

$10.63

21

SPRING, COMPRESSION (10L)

90501-08668-00

$10.02

22

HOSE (L400)

90445-116K9-00

$19.08

23

CLIP (8A1)

90467-09026-00

$2.72

24

HOSE (L150)

90445-226J7-00

Unavailable

25

JOINT, AIR CLEANER 1

8DJ-14453-01-00

Unavailable

26

CLAMP, HOSE (29L)

90460-68230-00

$12.54

27

SILENCER, INTAKE 1

8DJ-14431-00-00

$30.75

28

SILENCER, INTAKE 2

8DJ-14441-00-00

$59.74

29

SEAL

51Y-14462-00-00

$11.61

30

PLATE

8DJ-14477-00-00

$19.63

31

SCREW, TAPPING(82M)

90167-05043-00

$5.62

32

DUCT

8DJ-14437-00-00

$29.35

33

PROTECTOR, HEAT

8DJ-12682-00-00

Unavailable

34

NUT (8J2)

90179-05271-00

$5.54

35

SCREW, BINDING (8R1)

90154-05011-00

$3.74

36

BOLT, WITH WASHER(3FC)

90119-06163-00

$7.80
