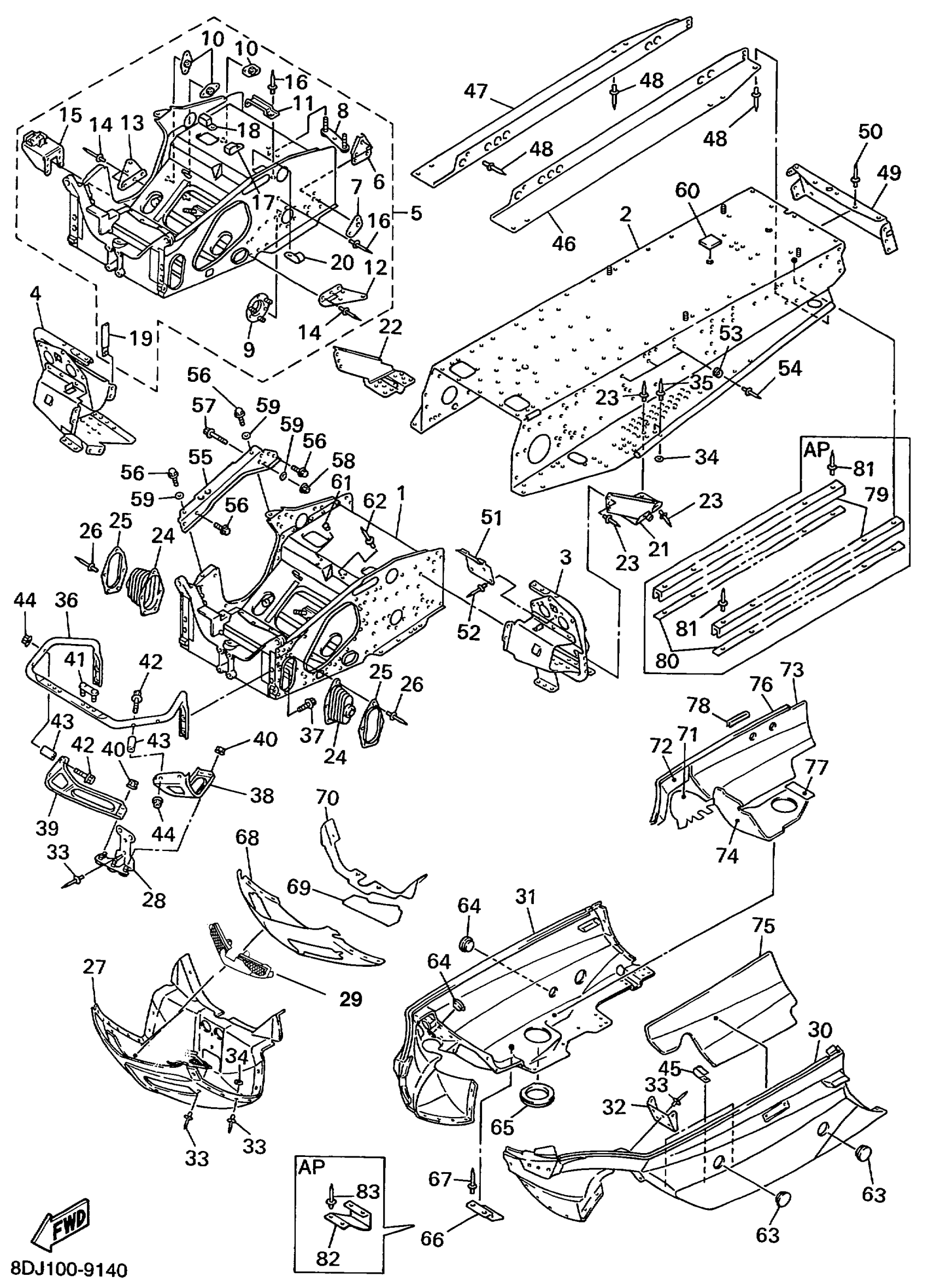

Yamaha PZ500C (PHAZER 500) 8DJ1 1999 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

8DJ-21940-07-00

Unavailable

2

REAR FRAME COMP.

8DJ-21950-09-00

Unavailable

3

FOOTREST COMP. 1

8CR-21960-08-00

Unavailable

4

FOOTREST COMP. 2

8CR-21970-08-00

Unavailable

5

FRAME CONNECTION K

8DJ-W2195-01-00

Unavailable

6

BRACKET, MAIN TRACK 1

8CR-21943-01-00

$3.54

7

BRACKET, MAIN TRACK 2

8CR-21953-00-00

$1.78

8

BRACKET 3

8CR-2196F-00-00

$5.80

9

. HOUSING, REINF SUB-ASSY (LH)

8CR-21920-00-00

Unavailable

10

BRACKET, CHAIN HOUSING

8CR-21939-01-00

$5.35

11

CLAMP, FUEL PIPE

8CR-21977-00-00

$3.29

12

PANEL, SUB FRAME 6

8CR-21917-00-00

$20.57

13

PANEL, SUB-FRAME 7

8CR-21918-00-00

$20.57

14

RIVET, BLIND

90267-48016-00

$7.85

15

STAY, MUFFER

8CR-2194J-00-00

$61.74

16

RIVET, BLIND(8CR)

90267-47186-00

$2.31

17

CLAMP(83R)

90461-08113-00

$10.48

18

CLAMP(8CR)

90461-06142-00

Unavailable

19

CLAMP

90462-10236-00

$8.97

20

CLAMP(51Y)

90465-08277-00

$9.43

21

PIPE, PIVOT 1

8DF-21941-00-00

Unavailable

22

PIPE, PIVOT 2

8DF-21951-00-00

$53.55

23

RIVET

90269-07080-00

$3.37

24

COVER 1

8CR-2198F-00-00

Unavailable

25

PLATE, STRG BRACKET 1

8CR-2195E-00-00

Unavailable

26

RIVET, BLIND

90267-47197-00

$1.56

27

PANEL, SUB FRAME 1

8CR-21912-01-00

Unavailable

28

PLATE, BACK UP

8CR-23788-11-00

Unavailable

29

STAY 4

8CR-77128-00-00

Unavailable

30

FRAME UNDER 1

8CR-2196A-03-00

Unavailable

31

FRAME, UNDER 2

8DJ-2196E-00-00

$173.85

32

BRACKET, GUARD FITTING

8CR-21972-00-00

Unavailable

33

RIVET, BLIND

90267-48018-00

Unavailable

34

WASHER PLATE 829771780000

90201-05033-00

$7.09

35

RIVET, BLIND(8CH)

90267-47187-00

$1.84

36

BUMPER, FRONT 2

8CR-77512-00-00

$89.51

37

BOLT, FLANGE(8AB)

95817-08020-00

$7.00

38

BRACKET, FRONT

8CR-21949-10-00

$20.51

39

BRACKET, FRONT BUMPER

8CR-21959-10-00

Unavailable

40

NUT, SELF-LOCKING

90185-08169-00

$7.09

41

BRACKET, 5

8CR-2196M-00-00

$4.98

42

BOLT, FLANGE

95817-08040-00

$5.43

43

COLLAR(8CR)

90387-0810F-00

Unavailable

44

NUT, FLANGE(JN5)

95707-08500-00

$1.49

45

CLAMP(4MX)

90465-06376-00

$7.08

46

REINF., PANELL FRA

8DJ-21991-01-00

Unavailable

47

FRAME REINFORCEMENT PANEL

8DJ-21992-01-00

Unavailable

48

RIVET, BLIND

90267-47195-00

$3.33

49

REINEFORCEMENT, FRAME REAR 1

8CR-21923-02-00

Unavailable

50

RIVET, BLIND

90267-47195-00

$3.33

51

HOOK

8CR-21973-00-00

Unavailable

52

RIVET, BLIND(8CR)

90267-47186-00

$2.31

53

BUTT0N

81K-2471F-00-00

Unavailable

54

RIVET, BLIND(81K)

90267-40135-00

Unavailable

55

REINEFORCEMENT, FRAME REAR 1

8CR-21921-01-00

Unavailable

56

BOLT, FLANGE

95817-10020-00

$5.10

57

BOLT,FLANGE

95817-10065-00

$4.72

58

NUT, FLANGE(8AB)

95707-10500-00

$1.66

59

WASHER, PLAIN(3BM)

92907-10200-00

$3.58

60

COVER 3

8CR-2198J-00-00

$3.11

61

PLUG (17J)

90338-10132-00

$2.63

62

RIVET, BLIND

90267-48177-00

$1.71

63

PLUG (8H8)

90338-44093-00

$13.91

64

PLUG(8CJ)

90338-30256-00

$7.15

65

SPACER

8DF-21998-10-00

$23.63

66

PROTECTOR, FRAME 3

8DJ-2197C-00-00

$15.18

67

RIVET, BLIND

90267-48018-00

Unavailable

68

LINING, SHROUD 1

8DJ-77261-00-00

Unavailable

69

LINING, SHROUD 2

8DJ-77262-00-00

$5.71

70

LINING, SHROUD 3

8CR-77263-00-00

Unavailable

71

LINING, SHROUD 5

8CR-77265-00-00

Unavailable

72

LINING, SHROUD 6

8CR-77266-00-00

Unavailable

73

LINING, SHROUD 7

8CR-77267-01-00

$27.68

74

LINING, SHROUD 9

8CR-77269-00-00

Unavailable

75

DAMPER, NOISE 11

8CR-77271-00-00

Unavailable

76

TAPE, 5

8CR-7717J-00-00

Unavailable

77

TRIM 1

8CR-77165-00-00

$2.42

78

TAPE,5

8DJ-7717J-00-00

$5.11

79

FULLGTH TUNL PRCT

SMA-8CV92-90-00

Unavailable

80

BRACKET, GUARD FITTING

8DF-21972-00-00

Unavailable

81

RIVET, BLIND

90267-47197-00

$1.56

82

PROTECTOR, FRAME 3

8CS-2197C-00-00

Unavailable

83

RIVET, BLIND

90267-48018-00

Unavailable
