Description

Price

1

IGNITION COIL ASSY

8DJ-82310-09-00

$111.99

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

WASHER, PLAIN (646)

92990-06600-00

$2.80

4

CLAMP(6M7)

90464-09M31-00

$8.49

5

PLUG CAP ASSY

85G-82370-20-00

$34.99

6

SEAL, PLUG CAP

8V0-82372-00-00

$4.82

7

C.D.I. UNIT ASSY

8DJ-85540-00-00

Unavailable

8

SCREW, TAPPING(65J)

97780-60625-00

Unavailable

9

WIRE HARNESS ASSEMBLY

8DJ-82590-00-00

Unavailable

10

BOLT, FLANGE

95817-06010-00

$4.73

11

WIRE, LEAD

8CR-8471G-00-00

Unavailable

12

CLAMP

90464-20031-00

Unavailable

13

CLAMP(4FM)

90464-15195-00

$4.41

14

CLAMP(4FM)

90464-15195-00

$4.41

15

CLAMP

90464-13077-00

$8.49

16

OIL LEVEL GAUGE ASSY

8CR-85720-02-00

Unavailable

17

RECTIFIER & REGULATOR ASSY

8DX-81960-00-00

Unavailable

18

BOLT, FLANGE

95817-06016-00

Unavailable

19

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

20

MAIN SWITCH ASSY

8AB-82510-01-00

Unavailable

21

CAP, KEY

526-82579-00-00

Unavailable

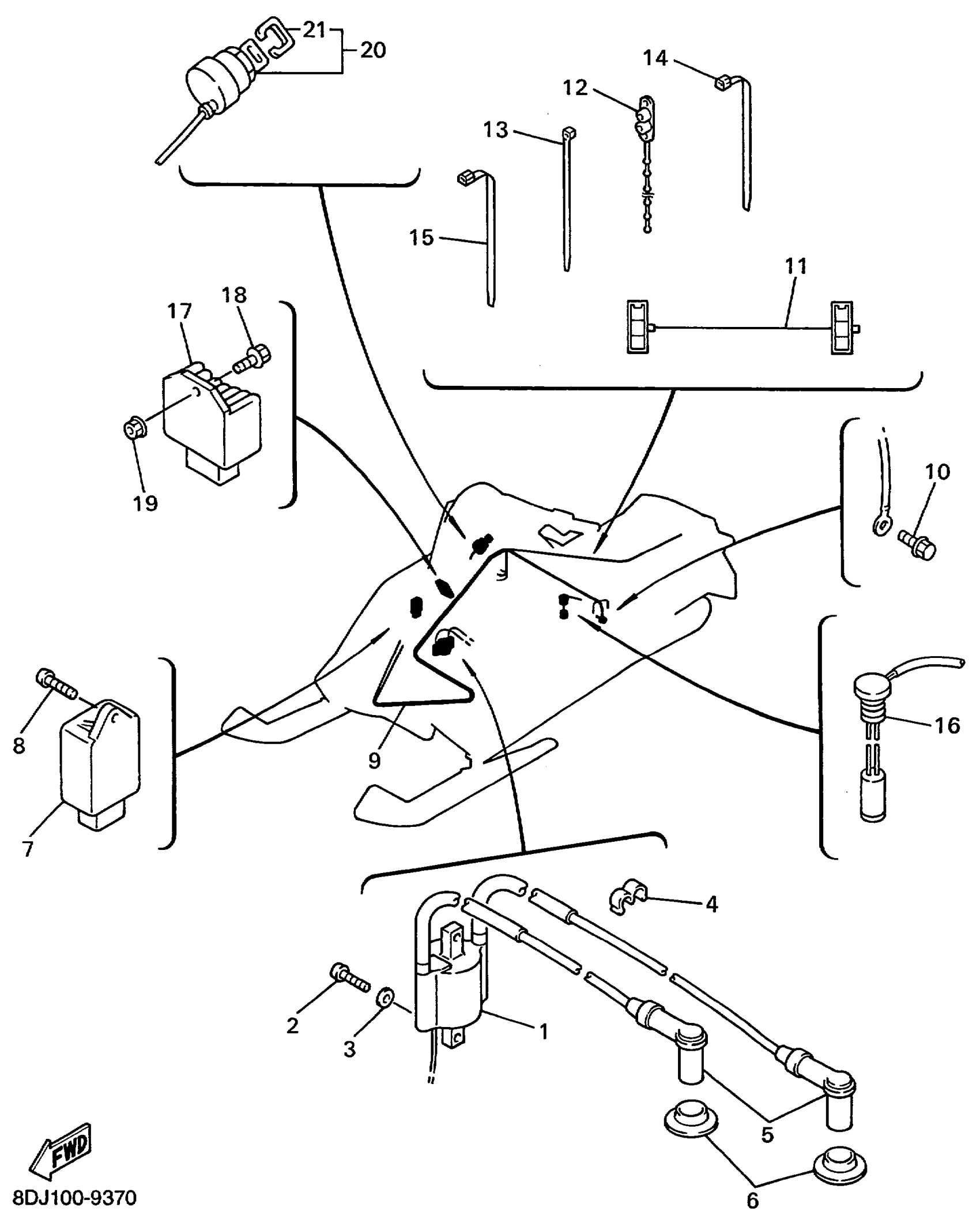

Yamaha PZ500C (PHAZER 500) 8DJ1 1999 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

SCREW PAN HEAD

WASHER, PLAIN (646)

CLAMP(6M7)

PLUG CAP ASSY

SEAL, PLUG CAP

C.D.I. UNIT ASSY

SCREW, TAPPING(65J)

WIRE HARNESS ASSEMBLY

BOLT, FLANGE

WIRE, LEAD

CLAMP

CLAMP(4FM)

CLAMP(4FM)

CLAMP

OIL LEVEL GAUGE ASSY

RECTIFIER & REGULATOR ASSY

BOLT, FLANGE

NUT, FLANGE(4MV)

MAIN SWITCH ASSY

CAP, KEY
