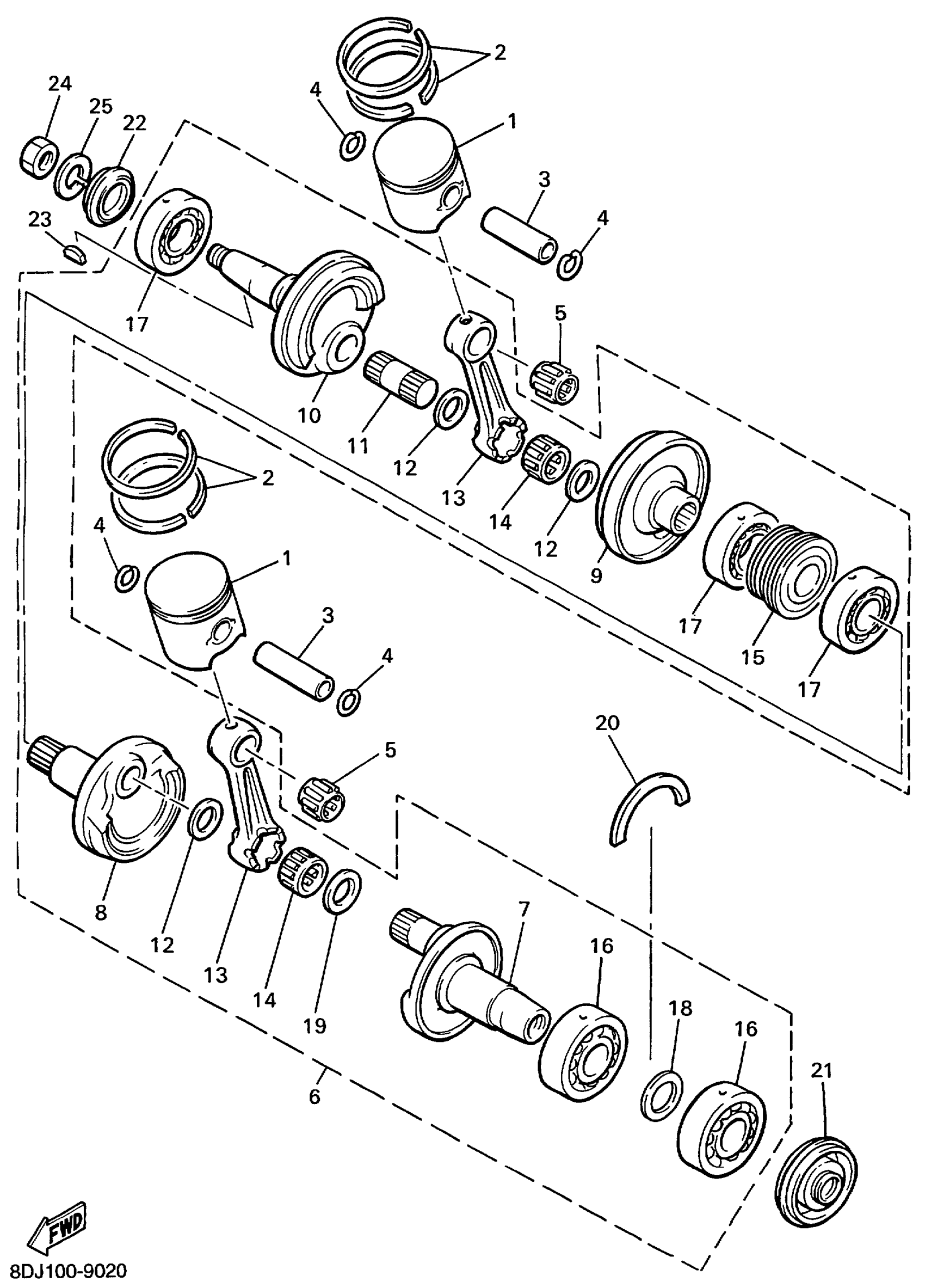

Yamaha PZ500C (PHAZER 500) 8DJ1 1999 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

PISTON (STD)

8DJ-11631-00-A0

$104.97

1

PISTON (0.25MM O/S)

8DJ-11635-00-00

$60.83

1

PISTON (0.50MM O/S)

8DJ-11636-00-00

Unavailable

2

PISTON RING SET (STD)

8DJ-11603-00-00

$66.09

2

PISTON RING SET (0.25MM O/S)

8DJ-11603-10-00

Unavailable

2

PISTON RING SET (0.50MM O/S)

8DJ-11603-20-00

Unavailable

3

PIN, PISTON

818-11633-00-00

$28.05

4

CIRCLIP (2F1)

93450-19052-00

$3.96

5

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

$32.87

6

CRANKSHAFT ASSY

8DJ-11400-00-00

Unavailable

7

CRANK 1

89F-11412-01-00

Unavailable

8

CRANK 2

8DJ-11422-00-00

$196.43

9

CRANK 3

8DJ-11432-00-00

$194.15

10

. CRANK 4

8V0-11442-00-00

Unavailable

11

. PIN, CRANK 1

857-11681-00-00

Unavailable

12

WASHER (152-11685-00)

90209-24073-00

$10.08

13

. ROD, CONNECTING

8V0-11651-00-00

Unavailable

14

BEARING, CYLINDRICAL(8BT)

93310-524P8-00

Unavailable

15

SEAL, LABYRINTH 1

8DJ-11515-00-00

$221.02

16

BEARING

93306-38201-00

$116.94

17

BEARING

93306-28203-00

$75.85

18

. WASHER, PLATE

90201-327F7-00

Unavailable

19

WASHER, CRANK PIN

8A7-11685-00-00

$10.68

20

CIRCLIP

93450-78091-00

Unavailable

21

OIL SEAL (8V0)

93103-32151-00

$32.02

22

OIL SEAL(83V)

93103-32155-00

$27.92

23

KEY, WOOD RUFF (324)

90280-05014-00

$7.82

24

NUT

90170-16425-00

$6.60

25

WASHER(6TD)

92907-16600-00

$5.86
