Partiron

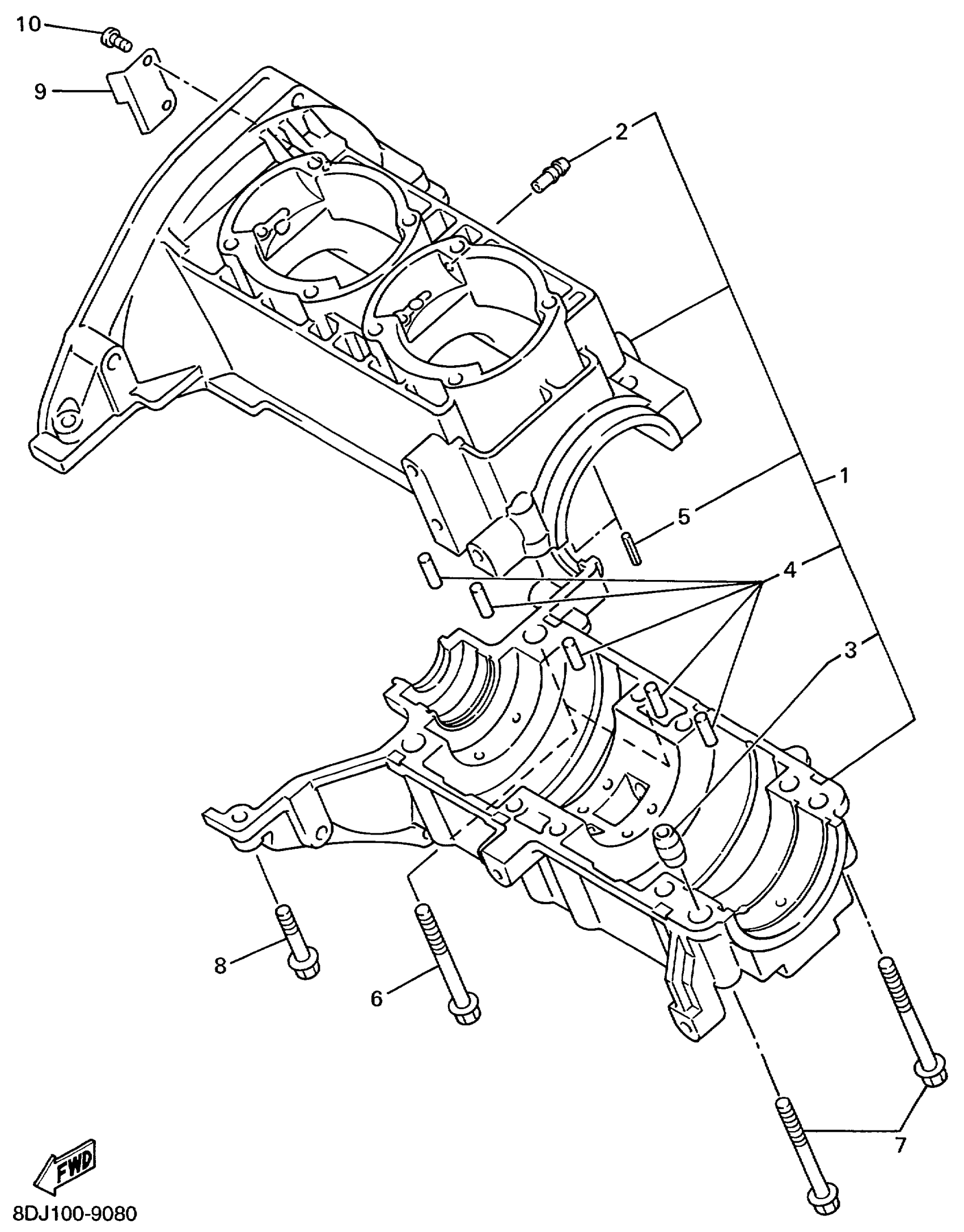

Yamaha PZ500C (PHAZER 500) 8DJ1 1999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8DJ-15100-00-00

Unavailable

2

JOINT, BREATHER

J38-11116-00-00

$2.77

3

PIN, DOWEL

99530-12016-00

$4.12

4

PIN, DOWEL (8H1)

93604-07141-00

$1.35

5

PIN, SPRING(80K)

91609-30006-00

$0.17

6

BOLT, WASHER BASED

90105-08466-00

Unavailable

7

BOLT, WASHER BASED

90105-084A1-00

$9.38

8

BOLT, FLANGE

95817-08040-00

$5.43

9

CLAMP

90461-12145-00

Unavailable

10

SCREW, PAN

98517-06012-00

$3.14
