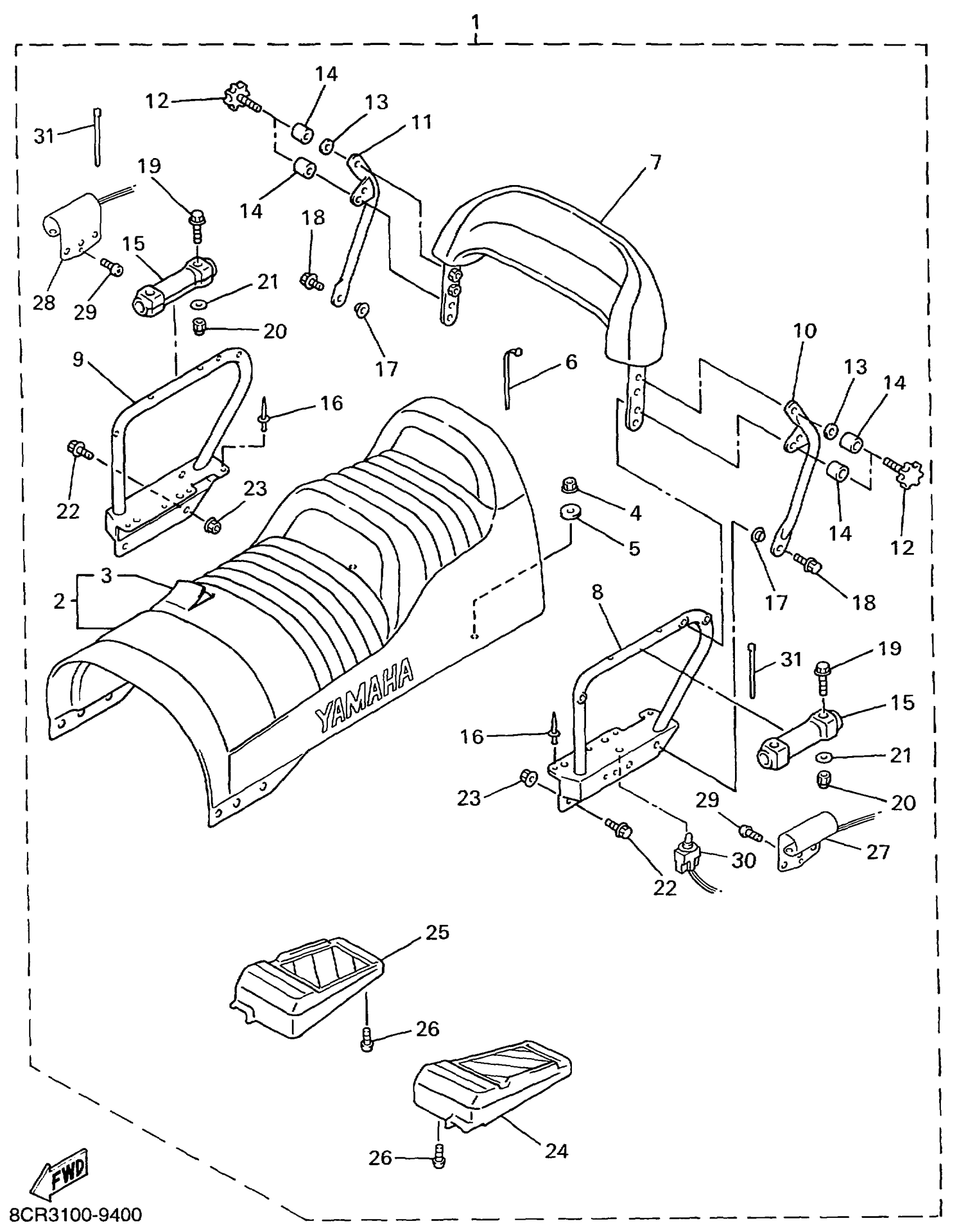

Yamaha PZ500C (PHAZER 500) 8DJ1 1999 ALTERNATE BODY - RIG1 Diagram

#

Description
Price

1

DELUXE 2-UP SEAT ASSY

8CR-W247R-10-00

Unavailable

2

. DOUBLE SEAT ASSY

8CW-24730-20-00

Unavailable

3

.. COVER, SEAT

8CW-2470F-20-00

Unavailable

4

NUT, NYLON

95717-08300-00

$2.57

5

WASHER, PLATE (4W3)

90201-086A3-00

$6.29

6

CLAMP(4FM)

90464-15195-00

$2.77

7

SEAT BACK ASSY

8CW-24790-10-00

$197.97

8

BRACKET, ASSIST GRIP 1

8CW-2474H-01-00

$134.91

9

BRACKET, ASSIST GRIP 2

8CW-2474J-01-00

$134.91

10

BRACKET, SEAT BACK

8CW-24797-00-00

$40.85

11

BRACKET, SEAT

8CW-2479L-00-00

$40.15

12

BODY, SEAT LOCK

8CW-2479H-00-00

$25.69

13

WASHER, PLATE (8M2)

90201-083A8-00

$2.57

14

DAMPER, SEAT

8CW-24737-00-00

$9.88

15

. ASSIST, GRIP

8CW-2474A-00-00

Unavailable

16

RIVET, BLIND(8CH)

90267-47187-00

$1.84

17

COLLAR

90387-08079-00

$7.49

18

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

19

BOLT, FLANGE

95817-06040-00

$4.54

20

NUT(4MY)

95307-06800-00

$2.86

21

WASHER(6TA)

92907-06200-00

$6.18

22

BOLT, FLANGE

95817-08014-00

$1.94

23

NUT, FLANGE(JN5)

95707-08500-00

$1.49

24

FOOTREST, REAR 1

8DM-27431-03-00

$30.91

25

FOOTREST, REAR 2

8DM-27441-03-00

$34.34

26

SCREW, TAPPING(4TV)

90167-05078-00

$5.12

27

ASSIST GRIP WARMER ASSY 1

8CW-2474B-00-00

$155.09

28

. ASSIST GRIP WARMER ASSY 2

8CW-2474C-00-00

Unavailable

29

SCREW, TAPPING(4MV)

97707-50016-00

$1.16

30

. SWITCH

8CY-82917-00-00

Unavailable

31

CLAMP(4FM)

90464-15195-00

$2.77
