- PZ480W (PHAZER II) 8BF3 1996
SECONDARY SHEAVE

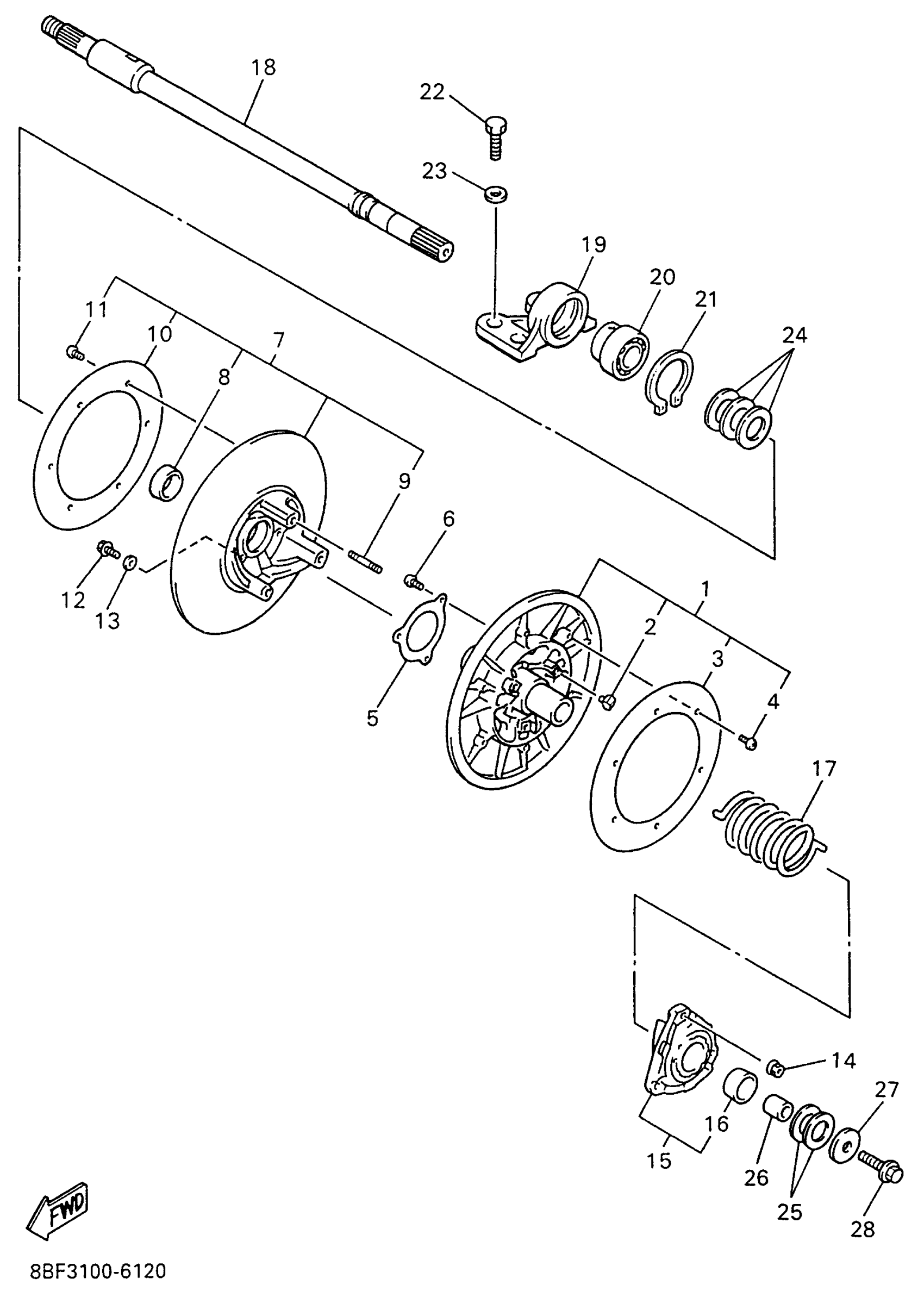

Yamaha PZ480W (PHAZER II) 8BF3 1996 SECONDARY SHEAVE Diagram
#
1
SECONDARY FIXED SHEAVE COMP.
8CM-17660-10-00
Unavailable
2
SHOE, RAMP
8AV-17688-10-00
$32.99
3
PLATE 1
8CM-17665-00-00
Unavailable
4
GASKET, EXHAUST
98507-05008-00
$3.55
5
STOPPER, HOLDER
8BV-17656-00-00
$22.99
6
SCREW, BINDING
98907-06016-00
$9.49
7
SECONDARY SLIDING SHEAVE
8CM-17670-10-00
Unavailable
8
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
9
BOLT, STUD 3
95617-08630-00
$4.99
10
PLATE 2
8CM-17675-00-00
Unavailable
11
GASKET, EXHAUST
98507-05008-00
$3.55
12
BOLT, WASHER BASED(8BN)
90105-06734-00
$3.50
13
WASHER, PLATE (22K)
90201-061H1-00
$4.72
13
WASHER, PLATE (371)
90201-06431-00
$5.60
14
NUT(8BN)
90179-08655-00
$10.49
15
SEAT SPRING SET
8BV-17604-11-00
Unavailable
15
SEAT SPRING SET
8BV-17604-31-00
Unavailable
15
SEAT SPRING SET
8BV-17604-91-00
Unavailable
16
BUSH, BIMETAL FORMED(8BN)
90384-38243-00
$63.99
17
SPRING, TORSION(8BF)
90508-500B1-00
Unavailable
17
SPRING, TORSION(8BN)
90508-556A2-00
Unavailable
17
SPRING, TORSION(8BT)
90508-556A7-00
Unavailable
18
SHAFT, SECONDARY
88F-17681-00-00
Unavailable
19
HOUSING, BEARING
85L-47631-00-00
Unavailable
20
BEARING
888-17678-00-00
Unavailable
21
CIRCLIP(26H)
99009-52500-00
Unavailable
22
BOLT, HEXAGON
97017-08020-00
Unavailable
23
WASHER(6TA)
92907-08600-00
Unavailable
24
WASHER, PLATE (8R6)
90201-252F1-00
Unavailable
24
WASHER, PLATE (888)
90201-25526-00
Unavailable
24
WASHER, PLATE (888)
90201-25527-00
Unavailable
25
WASHER, PLATE (T=0.5)
90201-222F0-00
Unavailable
25
WASHER, PLATE (8L8)
90201-225A4-00
Unavailable
26
COLLAR
90387-1407E-00
Unavailable
27
WASHER, PLATE
90201-14022-00
Unavailable
28
BOLT, WASHER BASED
90105-14754-00
Unavailable
