1995 Yamaha Phazer Ii (PZ480V) Starter Diagram

← All diagrams

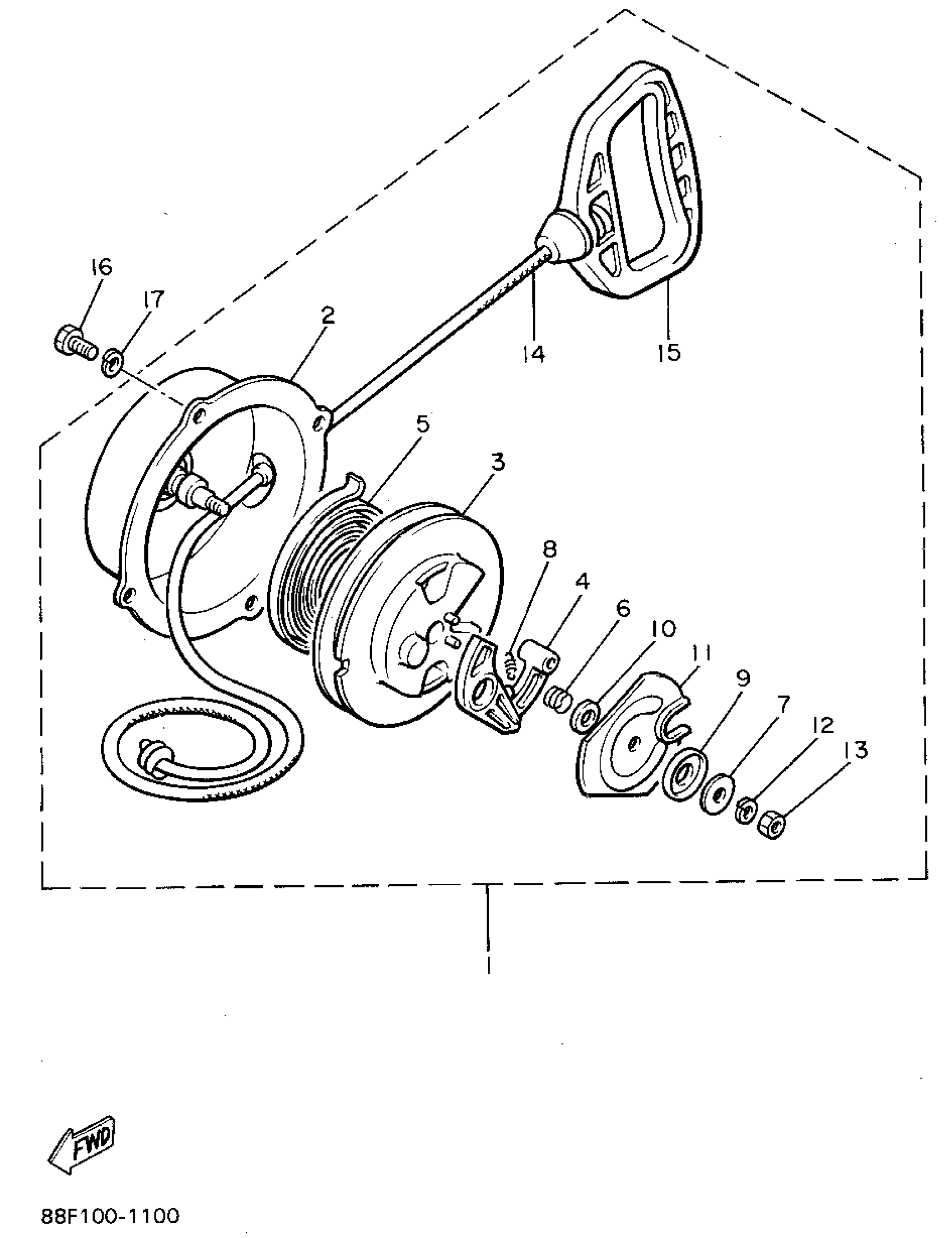

Find the part on the Starter diagram for your 1995 Yamaha Phazer Ii (PZ480V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Phazer Ii (PZ480V) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSY

8V0-15710-00-00

1
Out of stock

2

. CASE, STARTER

8V0-15711-00-00

1
Out of stock

3

DRUM, SEAVE

8F3-15714-01-00

1
Out of stock

4

PAWL, DRIVE

8F3-15741-01-00

1
Out of stock

5

SPRING, STARTER

8F3-15713-01-00

1
Out of stock

6

SPRING, DRIVE PLATE

8F3-15715-00-00

1
Out of stock

7

WASHER, THRUST

8F3-15739-01-00

1
Out of stock

8

SPRING, RETURN

8F3-15734-00-00

1
Out of stock

9

WASHER, THRUST

8G5-15739-00-00

1
Out of stock

10

. PLATE, DRIVE

82M-15716-00-00

1
Out of stock

11

PLATE, DRIVE

8F3-15716-03-00

1
Out of stock

12

WASHER, SPRING

92995-06100-00

1
Out of stock

13

NUT(650)

95380-06700-00

1
Out of stock

14

WIRE, STARTER (BRAIDED)

89A-15751-00-00

1
Out of stock

15

HANDLE, STARTER

8F3-15755-00-00

1
Out of stock

16

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

1
Out of stock

17

WASHER, SPRING

92995-06100-00

1
Out of stock
