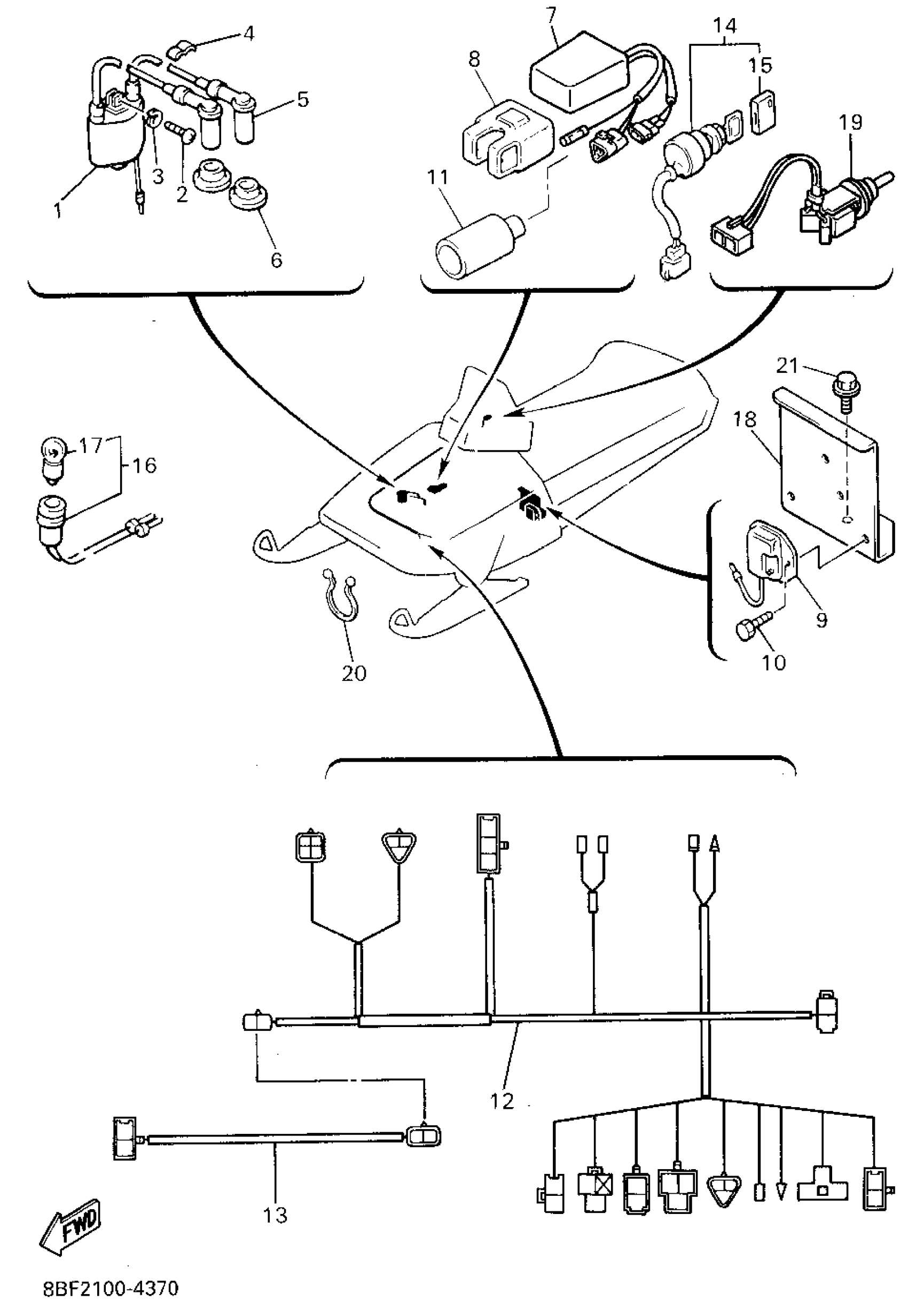

Yamaha PZ480V (PHAZER II) 8BF2 1995 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

8AB-82310-07-00

$85.99

SCREW PAN HEAD

98580-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

CLAMP, CORD

861-82361-00-00

Unavailable

PLUG CAP ASSY

85G-82370-20-00

$34.99

SEAL, PLUG CAP

8V0-82372-00-00

$4.82

C.D.I. UNIT ASSEMBLY

8BL-85540-00-00

Unavailable

BAND

2A7-85546-00-00

Unavailable

VOLTAGE REGULATOR ASSY

82M-81910-A0-00

Unavailable

BOLT(8CP)

97017-06014-00

$8.49

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

WIRE HARNESS ASSEMBLY

8BF-82590-00-00

Unavailable

WIRE, SUB LEAD

8BF-82509-00-00

Unavailable

MAIN SWITCH ASSY

8K4-82510-20-00

Unavailable

CAP, KEY

526-82579-00-00

$7.99

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

. BULB (12V5W)

8V0-85353-00-00

Unavailable

COVER, RESISTOR

89F-85379-00-00

Unavailable

SWITCH

8BF-82917-00-00

Unavailable

CLAMP (3Y2)

90464-16039-00

Unavailable

BOLT, FLANGE

95817-06010-00

Unavailable
