- PZ480T (PHAZER II) 8AK1 1993
PRIMARY SHEAVE

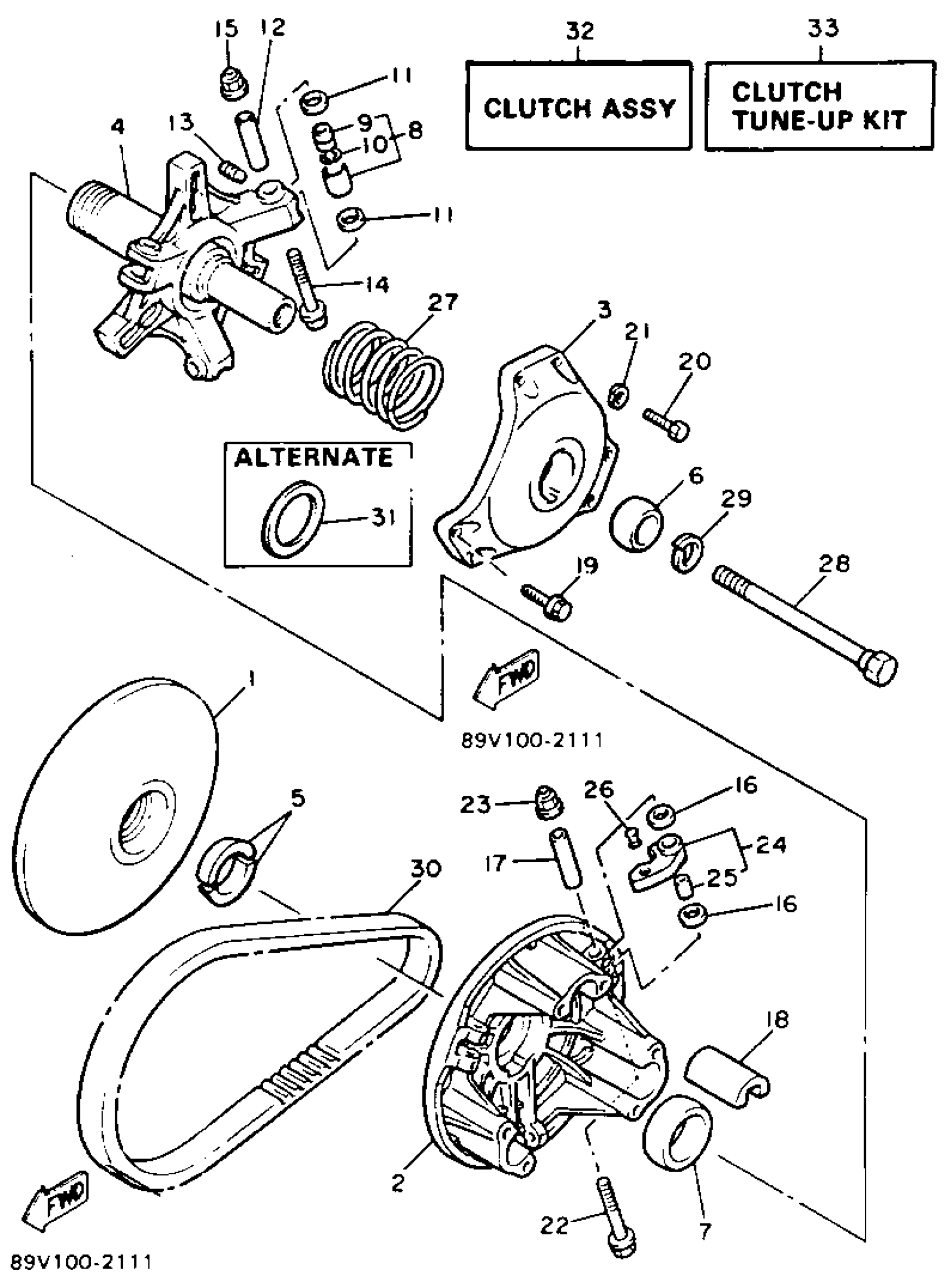

Yamaha PZ480T (PHAZER II) 8AK1 1993 PRIMARY SHEAVE Diagram
#
1
SHEAVE, PRIMARY FIXED
89F-17611-00-00
Unavailable
2
SHEAVE, PRIMARY SLIDING
89F-17621-00-00
Unavailable
3
CAP
88R-17631-01-00
Unavailable
4
SPIDER COMPLETE
8BW-17640-11-00
Unavailable
5
STOPPER
8V0-17639-00-00
$14.99
6
BUSH(83R)
90389-28032-00
$61.99
7
BUSH(88R)
90389-41031-00
$78.99
8
ROLLER, COMP
88R-17624-01-00
$47.99
9
BUSH(88K)
90386-08183-00
Unavailable
10
CIRCLIP(88K)
93450-13133-00
Unavailable
11
WASHER, PLATE(88R)
90202-08204-00
$9.49
12
COLLAR
90387-0514T-00
$16.99
13
BOLT, SET
90113-05041-00
$8.49
14
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
15
NUT, S/L FLANGE
95607-05200-00
$9.49
16
WASHER, PLATE(88R)
90202-08204-00
$9.49
17
COLLAR
90387-0514T-00
$16.99
18
SLIDER
88R-17653-01-00
Unavailable
19
BOLT(89J)
90109-066F4-00
Unavailable
20
BOLT, HEXAGON
97017-06030-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
23
NUT, S/L FLANGE
95607-05200-00
$9.49
24
WEIGHT COMP
89F-17605-00-00
Unavailable
25
. BUSH, SOLID
90380-08244-00
Unavailable
26
RIVET, COUNTER SUNK (8G8)
90261-06017-00
Unavailable
26
RIVET, COUNTERSUNK HEAD (8K8)
90261-06019-00
Unavailable
26
RIVET, COUNTERSUNK HEAD(88R)
90261-06028-00
Unavailable
27
SPRING, COMPRESSION(89F)
90501-507G2-00
Unavailable
27
SPRING, COMPRESSION(89F)
90501-527G1-00
Unavailable
27
SPRING, COMPRESSION(89F)
90501-556G5-00
Unavailable
27
SPRING, COMPRESSION(89F)
90501-556G6-00
Unavailable
27
SPRING, COMPRESSION(89F)
90501-556G7-00
Unavailable
27
SPRING, COMPRESSION(89F)
90501-606G9-00
Unavailable
27
SPRING, COMPRESSION(89F)
90501-607G0-00
Unavailable
28
. BOLT (L=1653MM)
88R-17647-00-00
Unavailable
29
WASHER(JN5)
92907-16100-00
Unavailable
30
V-BELT
89L-17641-02-00
Unavailable
31
WASHER, PLATE(88S)
90201-483P9-00
Unavailable
32
CLUTCH ASSEMBLY
89F-17601-09-00
Unavailable
33
CLUCH TUNE-UP KIT (R)
88R-00000-51-00
Unavailable
