PRIMARY SHEAVE

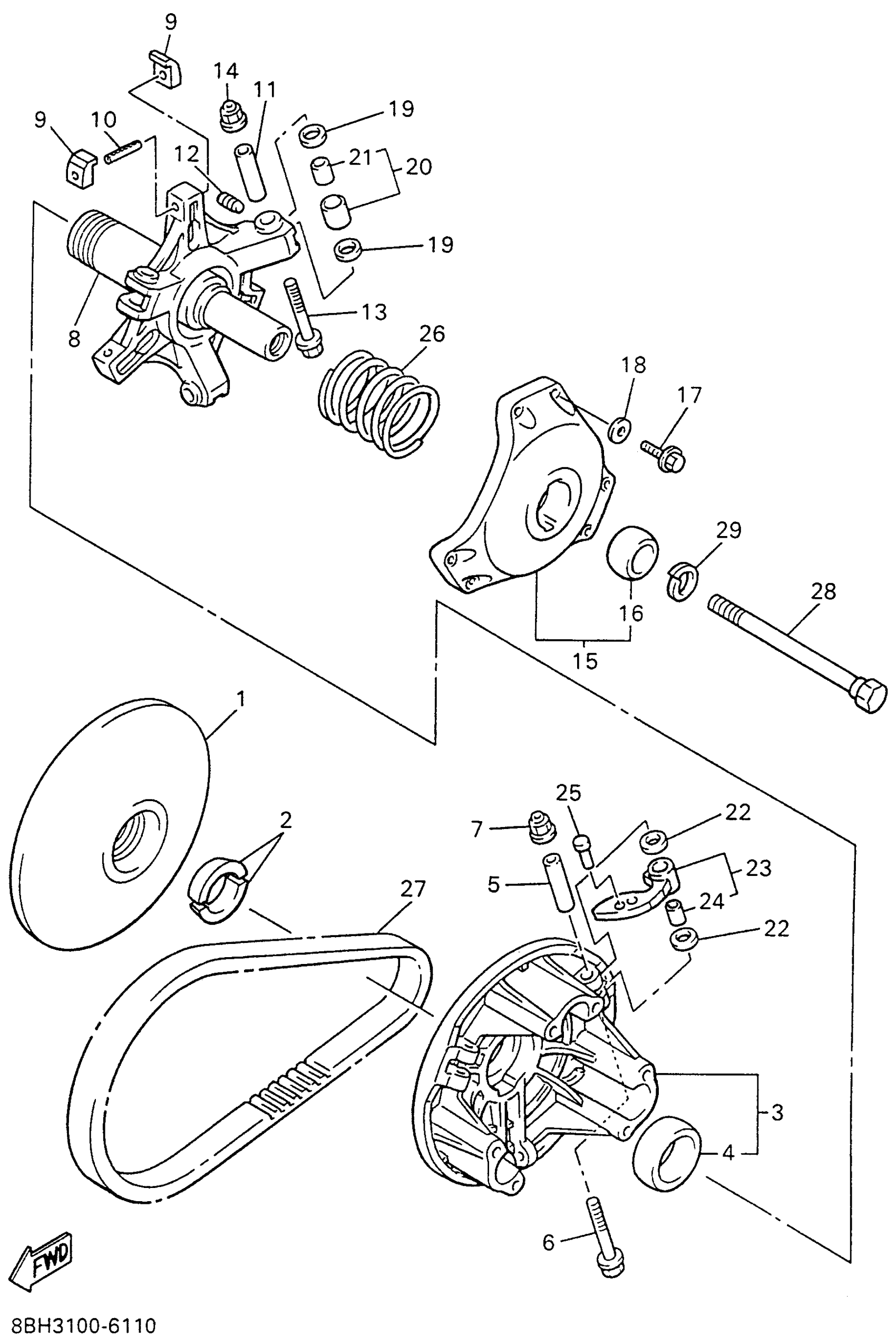

Yamaha PZ480STW (PHAZER II MOUNTAIN LITE) 8BH3 1996 PRIMARY SHEAVE Diagram
#
1
SHEAVE, PRI FIXED
8BF-17611-09-00
Unavailable
2
STOPPER
8V0-17639-00-00
$14.99
3
PRIMARY SLIDING SHEAVE COMP.
8BV-17620-11-00
$437.99
4
BUSH, BIMETAL FORMED(8AS)
90384-41242-00
$60.99
5
COLLAR
90387-0514T-00
$16.99
6
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
7
NUT, S/L FLANGE
95607-05200-00
$9.49
8
SPIDER COMPLETE
8BW-17640-11-00
Unavailable
9
SLIDER
8BW-17653-00-00
$16.49
10
PIN, SPRING (7F7)
91609-50032-00
$4.14
11
COLLAR
90387-0514T-00
$16.99
12
BOLT, SET
90113-05041-00
$8.49
13
BOLT, WASHER BASED(88R)
90105-05644-00
$2.39
14
NUT, S/L FLANGE
95607-05200-00
$9.49
15
PRIMARY SHEAVE CAP COMP.
8BV-17630-12-00
Unavailable
16
. BUSH, BIMETAL FORMED
90384-28244-00
Unavailable
17
BOLT, HEXAGON
97017-06030-00
Unavailable
18
WASHER(6TA)
92907-06600-00
Unavailable
19
WASHER, PLATE(88R)
90202-08204-00
Unavailable
20
ROLLER, COMP
8BH-17624-10-00
Unavailable
20
ROLLER, COMP
8BH-17624-00-00
Unavailable
21
. BUSH, SOLID
90380-08244-00
Unavailable
22
WASHER, PLATE(88R)
90202-08204-00
Unavailable
23
WEIGHT COMP
8BF-17605-10-00
Unavailable
24
. BUSH, SOLID
90380-08244-00
Unavailable
25
RIVET. COUNTERSUNK HEAD(8AK)
90261-06015-00
Unavailable
25
RIVET, COUNTER SUNK (8G8)
90261-06017-00
Unavailable
25
RIVET, COUNTERSUNK HEAD (8K8)
90261-06019-00
Unavailable
25
RIVET, COUNTERSUNK HEAD(88R)
90261-06028-00
Unavailable
25
RIVET, COUNTERSUNK (8AB1)
90261-06033-00
Unavailable
25
RIVET, COUNTERSUNK HEAD(8AB)
90261-06034-00
Unavailable
26
SPRING, COMPRESSION(8AT)
90501-481J1-00
Unavailable
26
SPRING, COMPRESSION(89F)
90501-507G2-00
Unavailable
26
SPRING, COMPRESSION(8BH)
90501-526J9-00
Unavailable
26
SPRING, COMPRESSION(89F)
90501-527G1-00
Unavailable
26
SPRING, COMPRESSION(89F)
90501-556G5-00
Unavailable
26
SPRING, COMPRESSION(89F)
90501-556G6-00
Unavailable
26
SPRING, COMPRESSION(89F)
90501-556G7-00
Unavailable
26
SPRING, COMPRESSION(89F)
90501-606G9-00
Unavailable
26
SPRING, COMPRESSION(89F)
90501-607G0-00
Unavailable
27
V-BELT
89L-17641-02-00
Unavailable
28
BOLT (L=156.5MM)
8V0-17647-10-00
Unavailable
29
WASHER(JN5)
92907-16100-00
Unavailable
