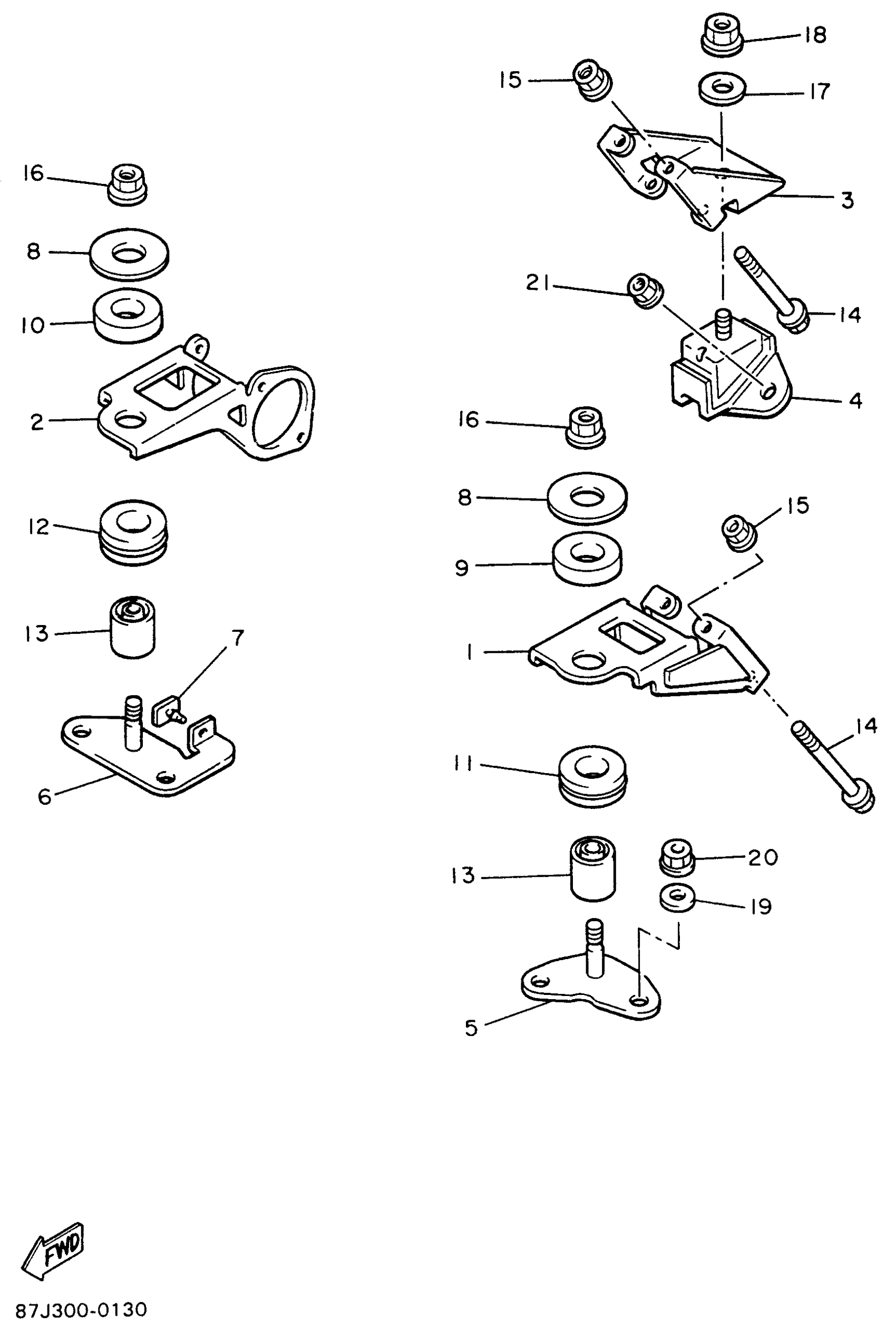

Yamaha PZ480STW (PHAZER II MOUNTAIN LITE) 8BH3 1996 ENGINE BRACKET Diagram

#

Description

Price

1

BRACKET, ENGINE 1

8V0-21411-00-00

Unavailable

2

BRACKET, ENGINE 2

8V0-21419-00-00

Unavailable

3

BRACKET, ENGINE 3

8V0-21429-01-00

Unavailable

4

DAMPER 2

87F-21486-00-00

Unavailable

5

BRACKET, FRONT LOWER 1

87F-21417-00-00

Unavailable

6

BRACKET, FRONT LOWER 2

87F-21418-00-00

Unavailable

7

DAMPER, STOPPER

87F-2140A-00-00

Unavailable

8

WASHER (888)

90201-10151-00

Unavailable

9

DAMPER, RUBBER 1

8V0-21485-00-00

Unavailable

10

DAMPER, RUBBER 1

8V0-21485-00-00

Unavailable

11

DAMPER,RUBBER 1

87F-21485-00-00

Unavailable

12

DAMPER,RUBBER 1

87F-21485-00-00

Unavailable

13

DAMPER, ENGINE MOUNT 1

87F-15316-00-00

Unavailable

14

BOLT, WASHER BASED

90105-08466-00

Unavailable

15

NUT, FLANGE(JN5)

95707-08500-00

$3.13

16

NUT, FLANGE(8AB)

95707-10500-00

Unavailable

17

WASHER, PLATE (856)

90201-10321-00

Unavailable

18

NUT, FLANGE(8AB)

95707-10500-00

Unavailable

19

WASHER, PLATE (856)

90201-10321-00

Unavailable

20

NUT, FLANGE(8AB)

95707-10500-00

Unavailable

21

NUT, FLANGE(JN5)

95707-08500-00

$3.13
