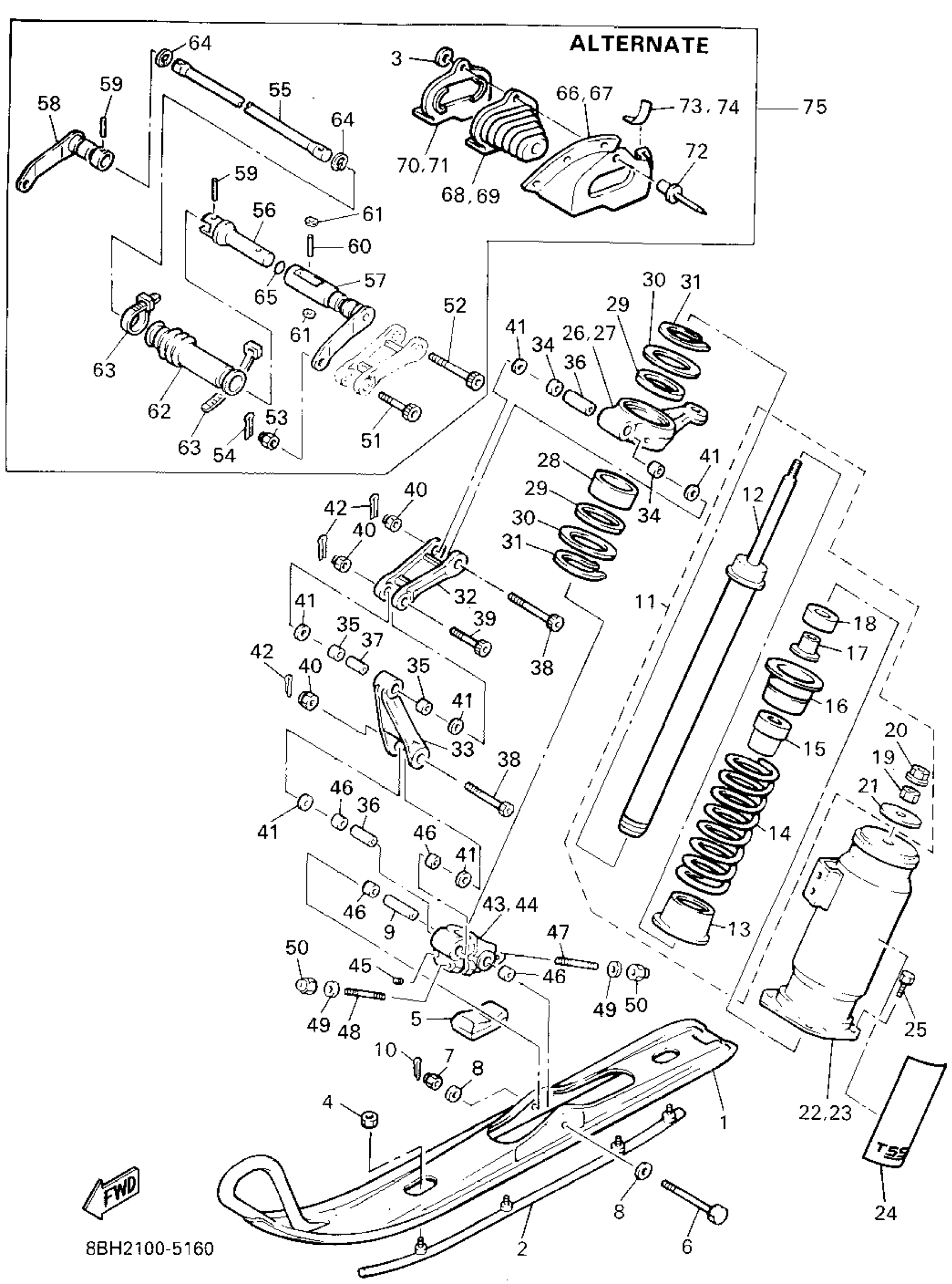

Yamaha PZ480STV (PHAZER II ST (LONG TRACK)) 8BH2 1995 SKI Diagram
#
1
SKI 1 (88F-23710-00-00)
88F-23710-01-00
Unavailable
2
SKI RUNNER,1
VMX-23731-01-XX
Unavailable
3
WASHER, PLATE
90201-04027-00
$3.02
4
NUT, U
95617-08100-00
$9.49
5
STOPPER 1
88T-23743-00-00
$23.99
6
BOLT, WITH HAUL (31A)
90102-10050-00
$18.99
7
NUT, NYLON
95707-10300-00
$8.49
8
WASHER (7A9)
90201-100F7-00
$9.49
9
COLLAR (8V0)
90387-106J3-00
$17.99
10
PIN, COTTER
91490-20025-00
$1.99
11
ABSORBER ASSEMBLY 1
88X-2376A-00-00
Unavailable
12
. DAMPER SUB ASSEMBLY
88X-22401-00-00
Unavailable
13
SEAT, SPRING 2
82M-23777-00-00
Unavailable
14
. SPRING, COMPRESSION
90501-752G6-00
Unavailable
15
. BUMP, STOP
87F-22493-00-00
Unavailable
16
PLATE, BACK UP
8AB-23788-00-00
Unavailable
17
COLLAR(82M)
90387-084R1-00
Unavailable
18
WASHER
82M-23779-00-00
Unavailable
19
. NUT
90170-08220-00
Unavailable
20
NUT(6L2)
95333-08600-00
Unavailable
21
WASHER, PLATE(82M)
90201-080L1-00
Unavailable
22
HOLDER, ABSORBER
8BF-2376J-00-00
Unavailable
23
HOLDER, ABSORBER 2
8BF-2377J-00-00
Unavailable
24
EMBLEM 15
8BF-77371-00-00
Unavailable
25
BOLT, HEXAGON
97017-06020-00
Unavailable
26
ARM, OUTSIDE 1
87F-23851-01-00
Unavailable
27
ARM, OUTSIDE 2
87F-23852-01-00
Unavailable
28
BUSH, BIMETAL FORMED (8U7)
90384-53175-00
Unavailable
29
OIL SEAL (8U7)
93109-53036-00
Unavailable
30
WASHER, PLATE(8W1)
90201-535H6-00
Unavailable
30
WASHER, PLATE (8L9)
90201-536A1-00
Unavailable
31
CIRCLIP (8L9)
93410-52061-00
Unavailable
32
ARM, FRONT 1
8L0-2382E-01-00
Unavailable
33
ARM, FRONT 2
8L0-2382F-00-00
Unavailable
34
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
35
BUSH, BIMETAL FORMED (8L0)
90384-14096-00
Unavailable
36
COLLAR(89A)
90387-101Y9-00
Unavailable
37
COLLAR (8L0)
90387-100A4-00
Unavailable
38
BOLT, WITH HOLE (8L0)
90102-10039-00
Unavailable
39
BOLT, HEXAGON SOCKET HEAD(85L)
90110-10173-00
Unavailable
40
NUT, NYLON
95707-10300-00
$8.49
41
WASHER PLATE 626441260000
90202-14037-00
Unavailable
42
PIN, COTTER
91490-20025-00
$1.99
43
BRACKET 1
84M-2376E-00-00
Unavailable
44
BRACKET 2
84M-2377E-00-00
Unavailable
45
BOLT, SET (8K2)
90113-06039-00
Unavailable
46
BUSH, BIMETAL FORMED (8L0)
90384-14091-00
Unavailable
47
BOLT, STUD 3
95617-08655-00
Unavailable
48
BOLT, STUD 3
95617-08640-00
Unavailable
49
.. WASHER, PLATE
92990-08600-00
Unavailable
50
NUT, NYLON
95717-08300-00
Unavailable
51
BOLT, HEXAGON SOCKET HEAD
90110-10172-00
Unavailable
52
BOLT,HEX SKT HEAD
90110-10174-00
Unavailable
53
NUT, NYLON
95707-10300-00
$8.49
54
PIN, COTTER
91490-20025-00
$1.99
55
BAR, STABILIZER FRONT
87F-2386E-00-00
Unavailable
56
LINK, STABILIZER FRONT
82M-2386F-00-00
Unavailable
57
JOINT, STABILIZER 1
86M-2385L-00-00
Unavailable
58
JOINT, STABILIZER 2
86M-2385M-00-00
Unavailable
59
PIN, DOWEL
93605-20225-00
Unavailable
60
PIN, DOWEL
93605-25223-00
Unavailable
61
SLIDER
82M-2386R-00-00
Unavailable
62
COVER, STABILIZER FRONT
82M-2386H-00-00
Unavailable
63
BAND
1UA-82591-00-00
Unavailable
64
CIRCLIP (4H7)
93410-23056-00
Unavailable
65
O-RING
93210-15751-00
Unavailable
66
PLATE, STRG BRACKET 1
87F-2195E-00-00
Unavailable
67
PLATE, STRG BRACKET 2
87F-2195F-00-00
Unavailable
68
. COVER 1 (LH)
82M-2198F-00-00
Unavailable
69
. COVER 2 (RH)
82M-2198G-00-00
Unavailable
70
. PLATE, STRING BRACKET 1 (L, H)
82M-2195E-00-00
Unavailable
71
. PLATE, STRING BRACKET 2 (R, H)
82M-2195F-00-00
Unavailable
72
RIVET, BLIND (8K1)
90267-40076-00
Unavailable
73
TAPE 1
87F-7717E-00-00
Unavailable
74
TAPE 2
87F-7717F-00-00
Unavailable
75
STABILIZER KIT (REF. #51~74)
87F-W0051-00-KT
Unavailable
