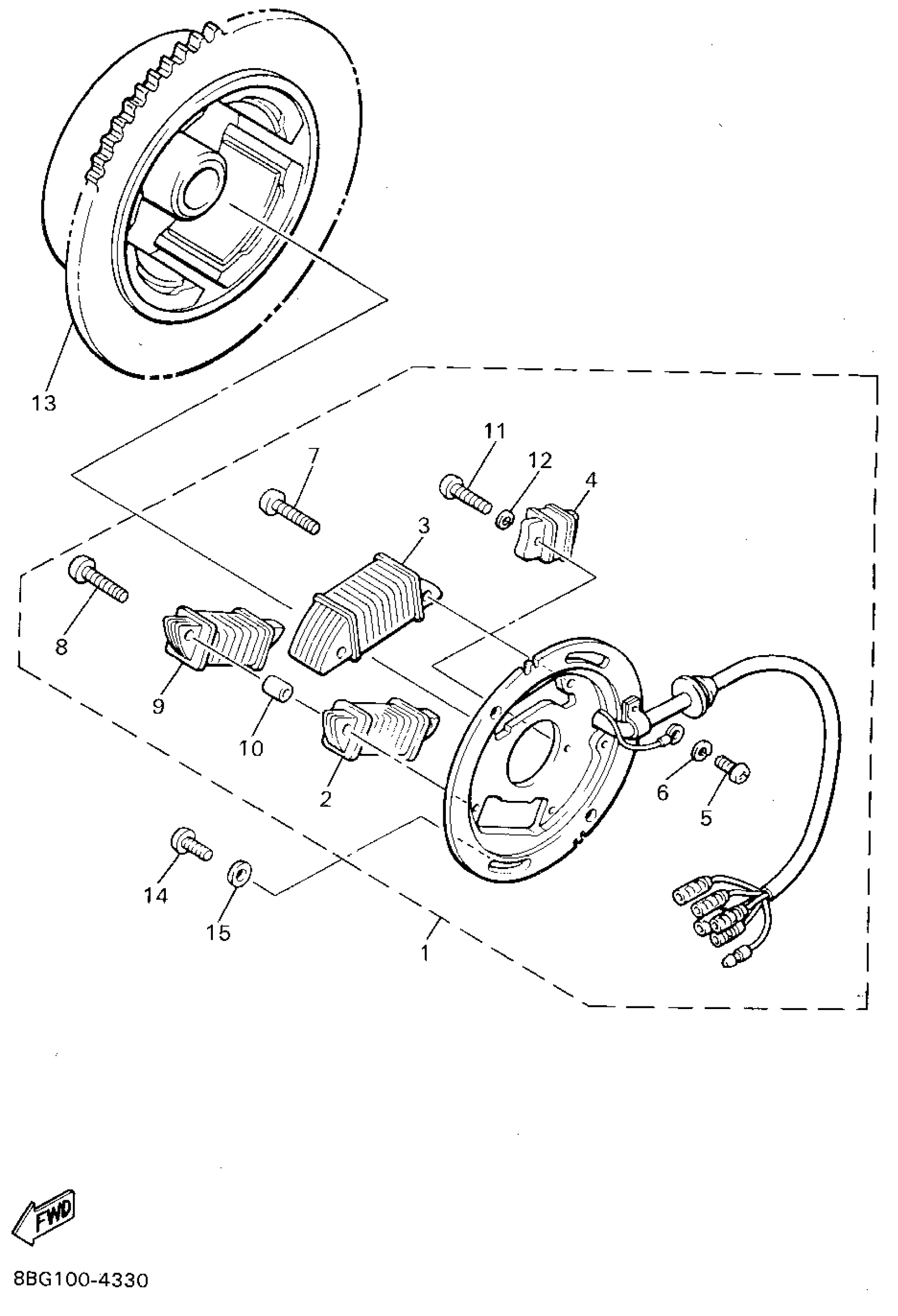

Yamaha PZ480STV (PHAZER II ST (LONG TRACK)) 8BH2 1995 GENERATOR Diagram

#

Description
Price

1

STATOR ASSEMBLY

8BL-85510-00-00

Unavailable

2

. COIL, SOURCE (8T0-85511-20)

86M-85511-00-00

Unavailable

3

. COIL, LIGHTING 1

8H8-85513-20-00

Unavailable

4

. COIL, PULSER (8N5-85580-20)

82M-85580-20-00

Unavailable

5

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

6

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

7

SCREW, PAN

98507-05035-00

$8.49

8

SCREW, PAN

98507-05040-00

$8.49

9

. COIL, LIGHTING 2 (8V0-85514-20)

82M-85514-20-00

Unavailable

10

. SPACER

8T0-85519-20-00

Unavailable

11

SCREW, PAN HEAD

98507-04018-00

$2.19

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

ROTOR ASSEMBLY

88H-85550-00-00

Unavailable

14

SCREW, BIND (705)

98980-06016-00

$8.49

15

WASHER, PLATE 6261117600

90201-06043-00

$7.49
