Description

Price

1

C.D.I. UNIT ASSEMBLY

8BL-85540-00-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

4

NUT, NYLON

95707-06300-00

$3.50

5

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

6

WIRE HARNESS ASSEMBLY

8BG-82590-00-00

Unavailable

7

WIRE HARNESS ASSEMBLY 2

8BG-82580-00-00

Unavailable

8

MAIN SWITCH ASSY

8K1-82510-21-00

Unavailable

9

CAP, KEY

526-82579-00-00

$7.99

10

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

11

. BULB (12V5W)

8V0-85353-00-00

Unavailable

12

IGNITION COIL ASSY

8AB-82310-07-00

$85.99

13

SCREW PAN HEAD

98580-06020-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

CLAMP, CORD

861-82361-00-00

Unavailable

16

PLUG CAP ASSY

85G-82370-20-00

Unavailable

17

SEAL, PLUG CAP

8V0-82372-00-00

Unavailable

18

SWITCH

8BF-82917-00-00

Unavailable

19

CLAMP (3Y2)

90464-16039-00

Unavailable

20

BRACKET, BATTERY

89X-2199G-01-00

Unavailable

21

COVER 3

89X-2198J-00-00

Unavailable

22

NUT, U FLANGE

95604-06200-00

Unavailable

23

BOLT, FLANGE

95812-06010-00

Unavailable

24

RESISTOR ASY

89M-85370-00-00

Unavailable

25

NUT, NYLON

95707-06300-00

$3.50

26

BAND

341-26397-01-00

Unavailable

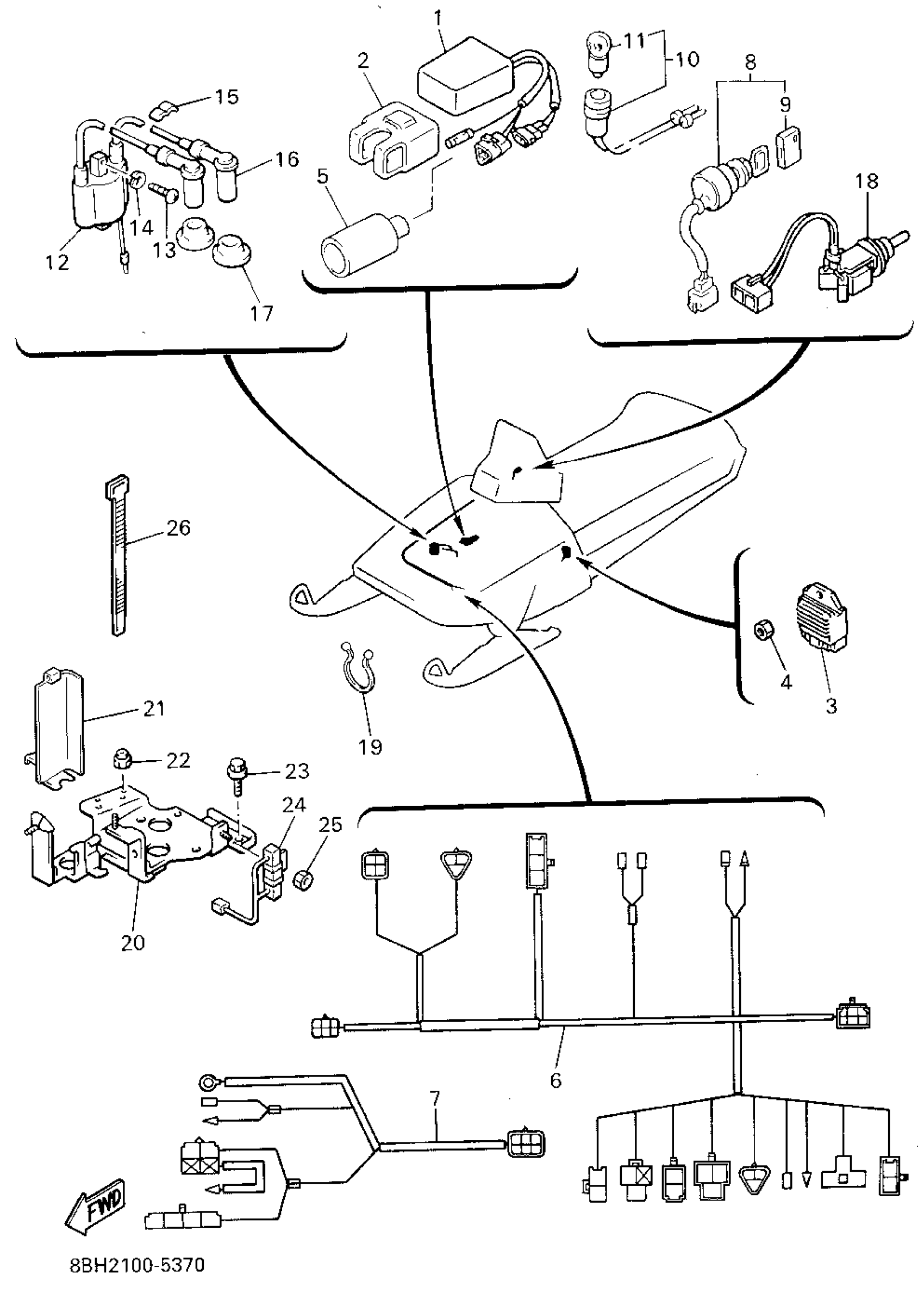

Yamaha PZ480STV (PHAZER II ST (LONG TRACK)) 8BH2 1995 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSEMBLY

BAND

RECTIFIER & REGULATOR ASSY

NUT, NYLON

COVER, CONNECTER

WIRE HARNESS ASSEMBLY

WIRE HARNESS ASSEMBLY 2

MAIN SWITCH ASSY

CAP, KEY

PILOT LIGHT ASSEMBLY 1

. BULB (12V5W)

IGNITION COIL ASSY

SCREW PAN HEAD

WASHER, SPRING

CLAMP, CORD

PLUG CAP ASSY

SEAL, PLUG CAP

SWITCH

CLAMP (3Y2)

BRACKET, BATTERY

COVER 3

NUT, U FLANGE

BOLT, FLANGE

RESISTOR ASY

NUT, NYLON

BAND
