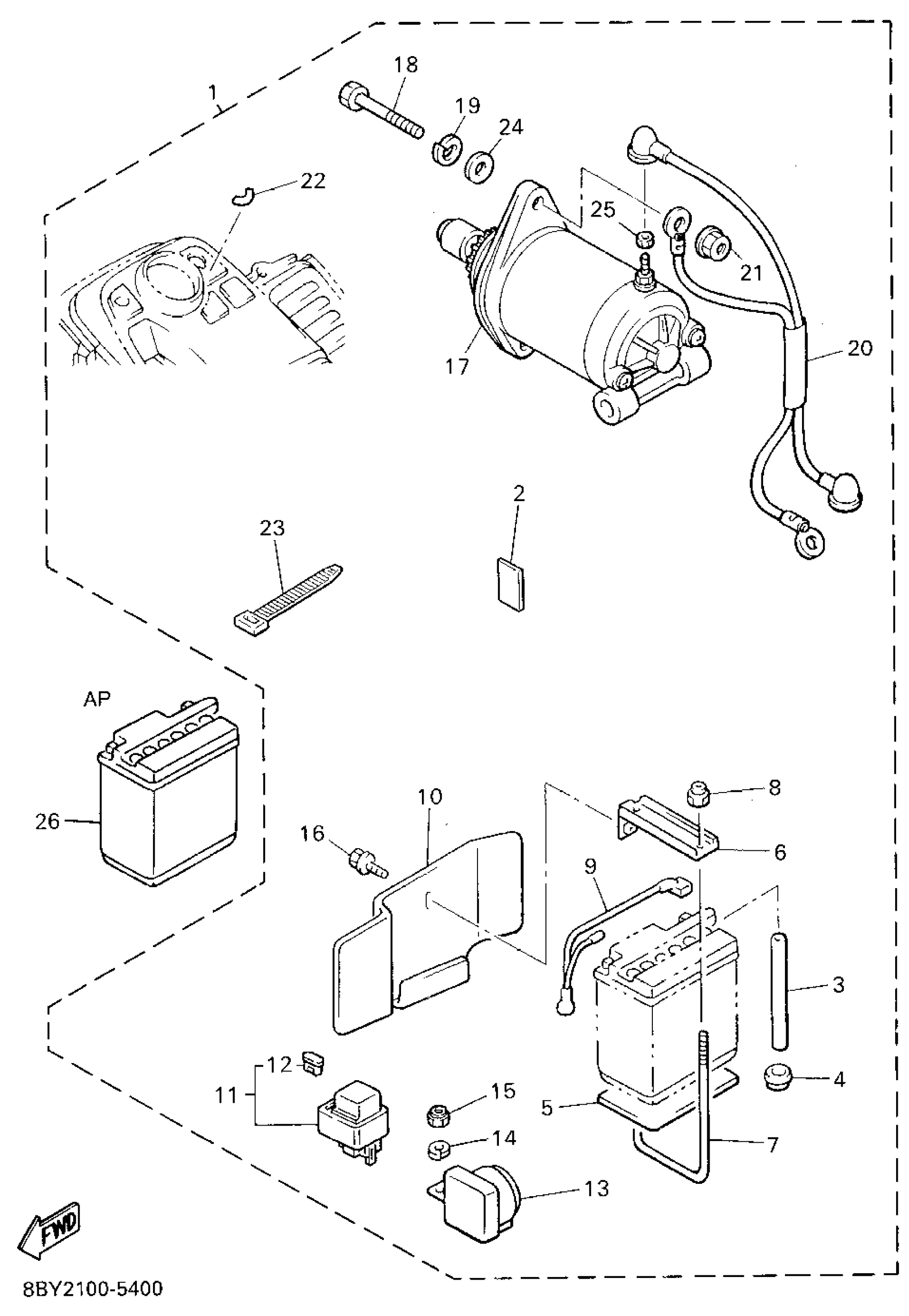

Yamaha PZ480STV (PHAZER II ST (LONG TRACK)) 8BH2 1995 ALTERNATE ELECTRIC STARTER Diagram

#

Description
Price

1

ELECTRIC STARTER KIT

8BH-W8180-01-KT

Unavailable

2

DAMPER

22F-2139X-00-00

$7.99

3

HOSE (L340)

90445-08684-00

$4.29

4

GROMMET(3AA)

90480-12497-00

Unavailable

5

. SEAT, BATTERY

82L-82122-00-00

Unavailable

6

. PLATE, BATTERY FITTING

89X-82136-01-00

Unavailable

7

. SCREW, FITTING

8J4-82133-00-00

Unavailable

8

NUT, NYLON

95707-06300-00

$3.50

9

. WIRE, PLUS LEAD

89X-82115-00-00

Unavailable

10

. SHIELD, HEAT

85N-2199H-00-00

Unavailable

11

FUSE HOLDER ASSY

8BE-82150-00-00

$32.99

12

FUSE (10A)

42X-82151-00-00

$4.32

13

. STARTER RELAY ASSY

8J9-81940-10-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

NUT, U FLANGE

95604-06200-00

$8.49

16

BOLT, FLANGE

95817-06008-00

Unavailable

17

STARTING MOTOR ASSY

8BB-81800-02-00

Unavailable

18

BOLT(6TC)

97027-08050-00

Unavailable

19

WASHER(JN5)

92907-08100-00

Unavailable

20

. WIRE HARNESS

89X-82105-00-00

Unavailable

21

NUT, NYLON

95717-08300-00

Unavailable

22

INDICAT0R 1

8V0-77741-20-00

Unavailable

23

BAND

1UA-82591-00-00

Unavailable

24

.. WASHER, PLATE

92990-08600-00

Unavailable

25

NUT(6TA)

95317-06600-00

Unavailable

26

YB14A2 YUASA BATTERY

YB1-4A200-00-00

Unavailable
