- PZ480STU (PHAZER II ST (LONG TRACK)) 8BH1 1994
TRACK SUSPENSION 2

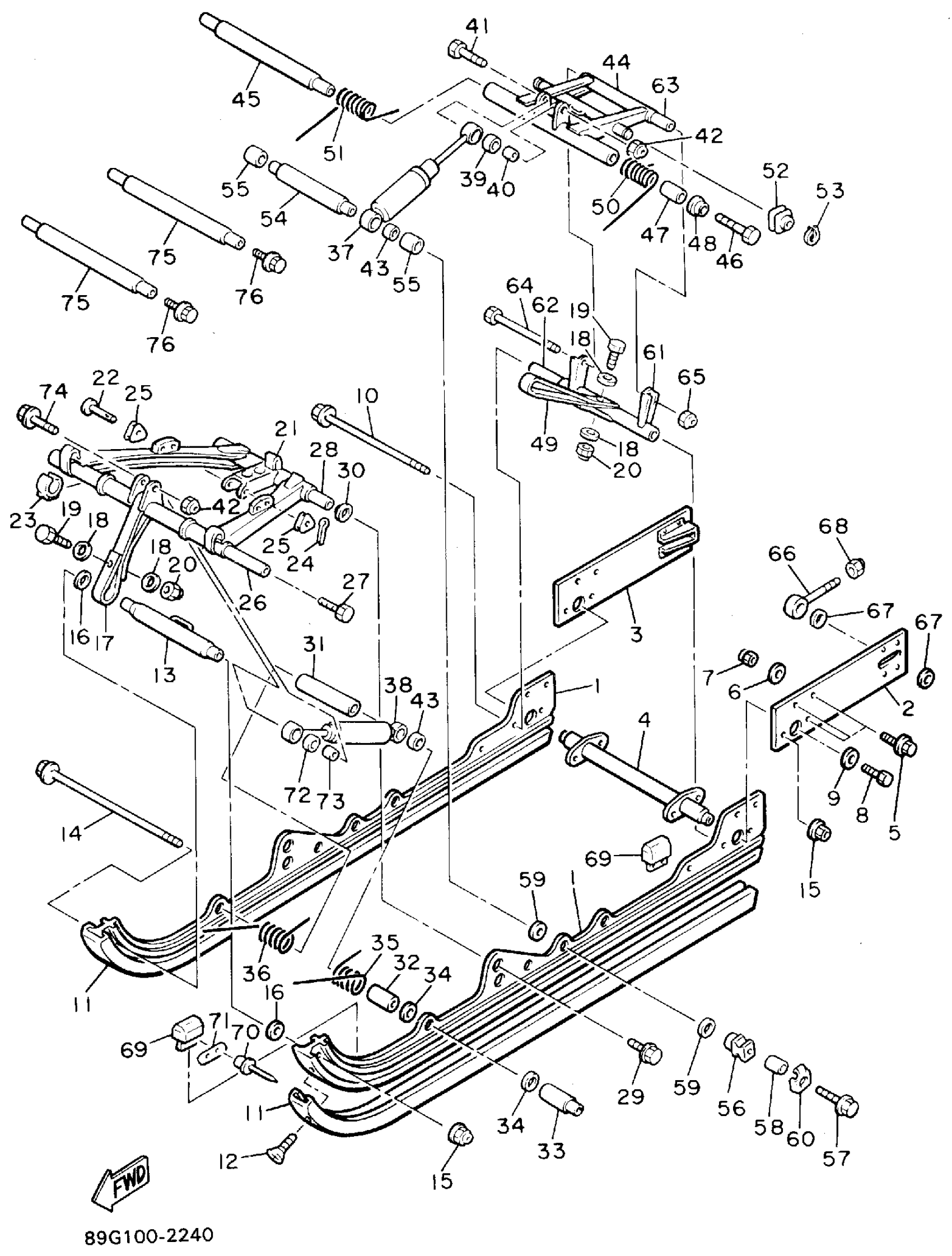

Yamaha PZ480STU (PHAZER II ST (LONG TRACK)) 8BH1 1994 TRACK SUSPENSION 2 Diagram
#
1
FRAME, SLIDING 1
88X-47411-01-00
Unavailable
2
FRAME, SLIDING
88X-W4741-01-00
Unavailable
3
FRAME, SLIDING
88X-W4741-01-00
Unavailable
4
BAR, SUSPENSION
88X-47451-00-00
Unavailable
5
BOLT, FLANGE(6TA)
95817-08030-00
$8.49
6
.. WASHER, PLATE
92990-08600-00
Unavailable
7
NUT, NYLON
95717-08300-00
$2.70
8
BOLT (8K2)
90109-08559-00
$8.49
9
WASHER (8G1)
90201-08681-00
$7.49
10
BOLT, WASHER BASED
90105-08325-00
Unavailable
11
RUNNER, SLIDING 1
88T-47421-00-XX
Unavailable
12
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
13
BRACKET 1
8V0-47415-00-00
Unavailable
14
BOLT, WASHER BASED(51X)
90105-08346-00
$11.49
15
NUT, SELF-LOCKING
90185-08169-00
$8.49
16
.. WASHER, PLATE
92990-08600-00
Unavailable
17
STOPPER 1
87F-47495-00-00
Unavailable
18
WASHER, PLATE
90201-06747-00
Unavailable
19
BOLT, HEXAGON
97017-06025-00
Unavailable
20
NUT, NYLON
95707-06300-00
Unavailable
21
ARM,PIVOT 1
88K-47331-00-00
Unavailable
22
PIN, CLEVIS (90240-12107-00)
90240-12136-00
Unavailable
23
HOOK 2
8V0-47447-01-00
Unavailable
24
PIN, COTTER
91490-30030-00
Unavailable
25
HOOK 3
8V0-47448-00-00
Unavailable
26
SHAFT 1
8A5-47465-02-00
Unavailable
27
BOLT (8V0)
90109-10771-00
Unavailable
28
SHAFT 3
82M-47485-02-00
Unavailable
29
BOLT, FLANGE
95817-10030-00
Unavailable
30
COLLAR (8U7)
90387-105G6-00
Unavailable
31
COLLAR
90387-160M7-00
Unavailable
32
COLLAR
8V0-47319-00-00
Unavailable
33
COLLAR
90387-166M8-00
Unavailable
34
WASHER, PLATE
90201-161E5-00
Unavailable
35
SPRING, FRONT 1
87F-47471-00-00
Unavailable
36
SPRING, FRONT 2
87F-47472-00-00
Unavailable
37
SHOCK ABSORBER
88X-47480-10-00
Unavailable
38
SHOCK ABSORBER 2
88X-47481-00-00
Unavailable
39
COLLAR(82M)
90387-084R5-00
Unavailable
40
BUSH, SOLID
90380-12161-00
Unavailable
41
BOLT, FLANGE
95817-08040-00
Unavailable
42
NUT, NYLON
95717-08300-00
$2.70
43
BUSH, PIVOT
8V0-47371-00-00
Unavailable
44
ARM, PIVOT 2
87H-47332-00-00
Unavailable
45
SHAFT 2
8K2-47475-00-00
Unavailable
46
BOLT (8V0)
90109-10771-00
Unavailable
47
COLLAR 1
8V0-47365-00-00
Unavailable
48
WASHER
8V0-47384-00-00
Unavailable
49
STOPPER 2 (83R-47496-00)
89F-47496-00-00
Unavailable
50
SPRING, REAR 1
88X-47473-00-00
Unavailable
50
SPRING, REAR, 1
8Y7-47473-00-00
Unavailable
51
SPRING, REAR 2
88X-47474-00-00
Unavailable
51
SPRING,REAR.2
8Y7-47474-00-00
Unavailable
52
HOOK 1
86S-47446-01-00
Unavailable
53
CIRCLIP(13H)
99009-14400-00
Unavailable
54
SHAFT 4
84J-47486-00-00
Unavailable
55
COLLAR
8V0-47338-00-00
Unavailable
56
HOOK 2
85K-47447-01-00
Unavailable
57
BOLT, FLANGE
95817-10060-00
Unavailable
58
COLLAR
90387-103U7-00
Unavailable
59
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
60
PLATE, GUIDE
84J-47467-00-00
Unavailable
61
BRACKET 3
8V0-47417-00-00
Unavailable
62
COLLAR
90387-08632-00
Unavailable
63
COLLAR
90387-084J9-00
Unavailable
64
BOLT,HEXAGON
97027-08165-00
Unavailable
65
NUT, NYLON
95717-08300-00
$2.70
66
COLLAR 3
8K2-47479-01-00
Unavailable
67
WASHER, PLATE (888)
90201-20279-00
Unavailable
68
NUT, NYLON
95707-10300-00
Unavailable
69
DAMPER 1
8V0-47456-00-00
Unavailable
70
RIVET, BLIND (8K4)
90267-48062-00
Unavailable
71
PLATE, DAMPER
8K2-47458-01-00
Unavailable
72
COLLAR
90387-081U4-00
Unavailable
73
BUSH, SOLID
90380-12169-00
Unavailable
74
BOLT, FLANGE
95814-08045-00
Unavailable
75
IDLER
8L1-47461-00-00
Unavailable
76
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
