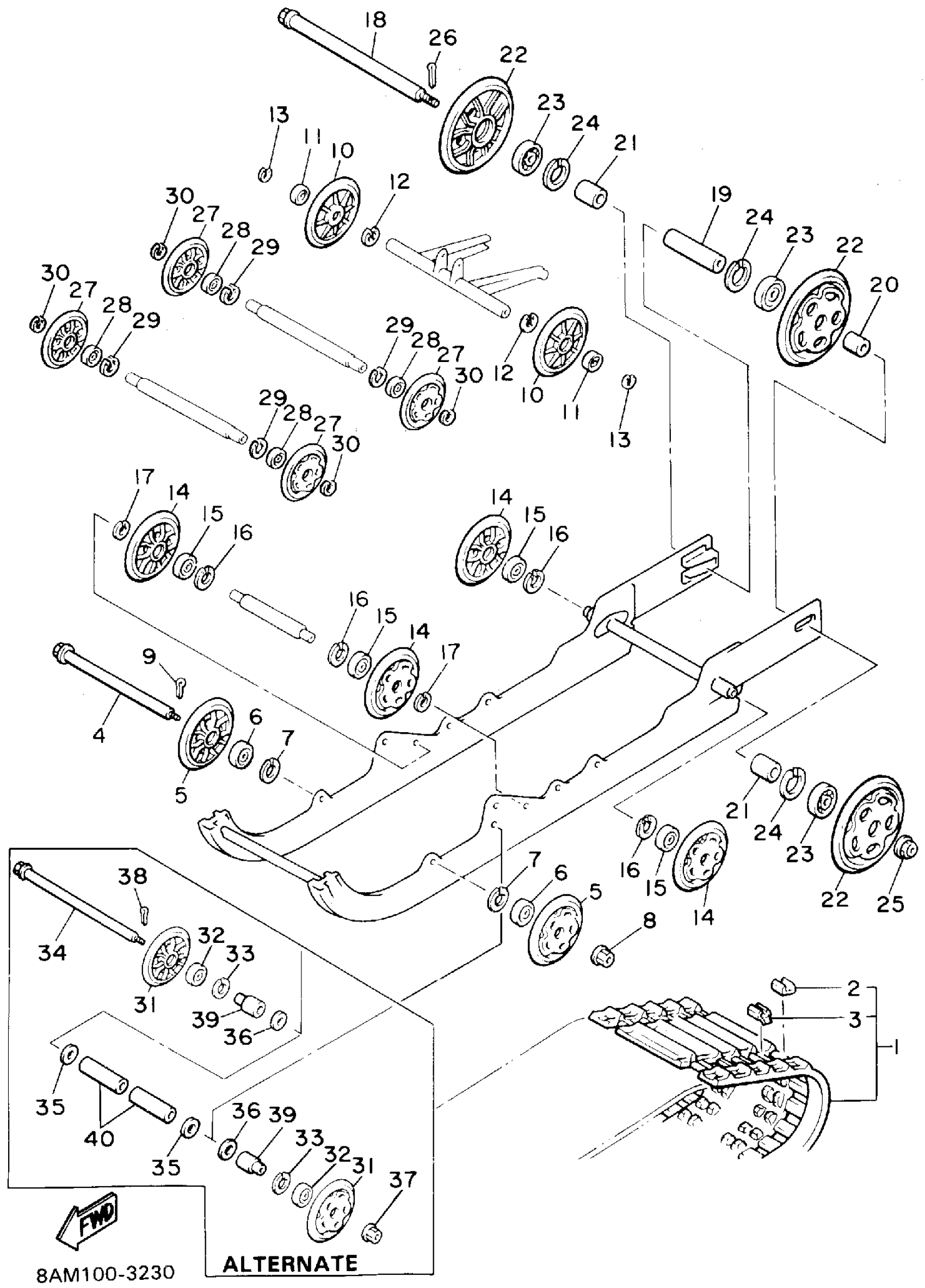

Yamaha PZ480STU (PHAZER II ST (LONG TRACK)) 8BH1 1994 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASY

8BH-47110-00-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$4.11

3

METAL, SLIDE

89A-47115-01-00

Unavailable

4

SHAFT 5

82M-47487-00-00

Unavailable

5

SUSPENSION WHEEL COMP.

89M-47320-00-00

Unavailable

6

BEARING(8AB)

93306-00444-00

$34.26

7

CIRCLIP(5U8)

99009-42500-00

$6.32

8

NUT, SELF-LOCKING (8BF)

95607-14200-00

$9.49

9

PIN, COTTER

91490-30030-00

$6.88

10

SUSPENSION WHEEL COMP

885-47320-01-00

$66.62

11

BEARING(8AB)

93306-00444-00

$34.26

12

CIRCLIP(5U8)

99009-42500-00

$6.32

13

CIRCLIP(1AR)

99009-20400-00

$5.75

14

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

15

BEARING(8AB)

93306-00444-00

$34.26

16

CIRCLIP(5U8)

99009-42500-00

$6.32

17

CIRCLIP(1AR)

99009-20400-00

$5.75

18

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

19

COLLAR

90387-202X4-00

Unavailable

20

COLLAR

90387-202X5-00

Unavailable

21

COLLAR(88Y)

90387-204X2-00

Unavailable

22

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

23

BEARING(8AE)

93306-20469-00

Unavailable

24

CIRCLIP(48Y)

99009-47500-00

Unavailable

25

NUT, SELF-LOCKING (8BF)

95607-14200-00

$9.49

26

PIN, COTTER

91490-30030-00

$6.88

27

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

28

BEARING(8AB)

93306-00444-00

$34.26

29

CIRCLIP(5U8)

99009-42500-00

$6.32

30

CIRCLIP(1AR)

99009-20400-00

$5.75

31

SUSPENTION WHEEL COMP

87M-47320-00-00

$74.01

32

BEARING(8AB)

93306-00444-00

$34.26

33

CIRCLIP(5U8)

99009-42500-00

$6.32

34

SHAFT 5

82M-47487-00-00

Unavailable

35

WASHER, PLATE

90201-164P0-00

Unavailable

36

WASHER, PLATE(33Y)

90201-164H4-00

Unavailable

37

NUT, SELF-LOCKING (8BF)

95607-14200-00

$9.49

38

PIN, COTTER

91490-30030-00

$6.88

39

COLLAR

90387-166M8-00

Unavailable

40

COLLAR

90387-160M7-00

Unavailable
