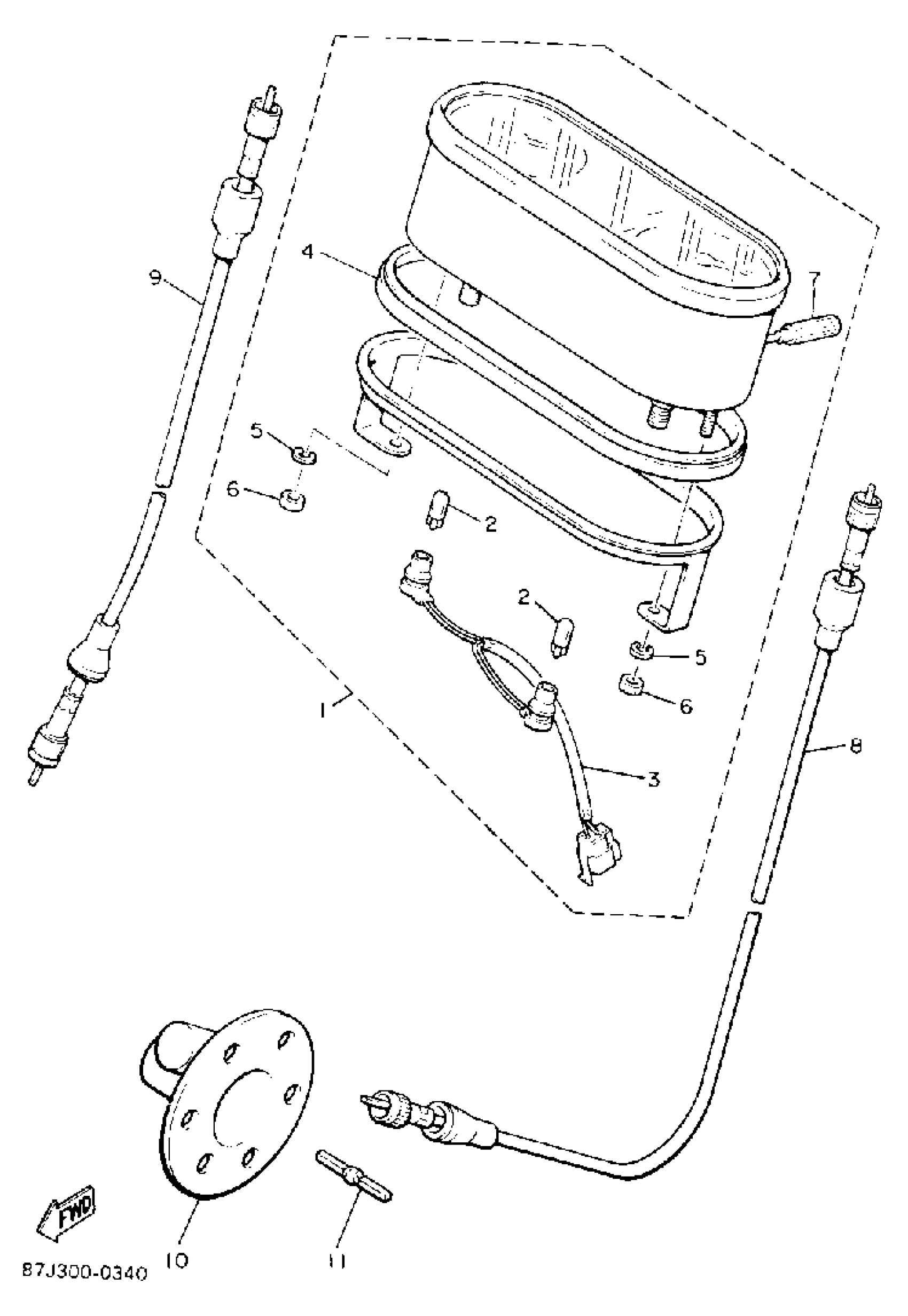

Yamaha PZ480STT (PHAZER II ST) 8AM1 1993 METER Diagram

SPEEDOMETER ASSEMBLY (MILE/H)

87F-83500-40-00

Unavailable

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

. SOCKET, METER

8U9-83536-00-00

Unavailable

. DAMPER

8K4-83513-00-00

Unavailable

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

NUT, HEXAGON (663)

95380-05600-00

$8.49

. KNOB, TRIP METER

8L8-83578-00-00

Unavailable

SPEEDOMETER CABLE ASSEMBLY

8K4-83550-00-00

Unavailable

TACHOMETER CABLE ASSEMBLY

8A1-83550-02-00

Unavailable

METER GEAR HOUSING COMP.

8L8-47700-00-00

Unavailable

JOINT

8K4-47715-00-00

$5.60
