Description

Price

1

C.D.I. UNIT ASSEMBLY

8V0-85540-21-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

RECTIFIER & REGULATOR ASSY

89A-81960-00-00

$95.99

4

NUT, NYLON

95707-06300-00

$3.50

5

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

6

WIRE HARNESS ASSEMBLY

89G-82590-00-00

Unavailable

7

MAIN SWITCH ASSY

8K1-82510-21-00

Unavailable

8

PILOT LIGHT ASSEMBLY 1

8V0-84301-00-00

Unavailable

9

. BULB (12V5W)

8V0-85353-00-00

Unavailable

10

IGNITION COIL ASSY

8AB-82310-07-00

$85.99

11

SCREW PAN HEAD

98580-06020-00

$8.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

CLAMP, CORD

861-82361-00-00

Unavailable

14

PLUG CAP ASSY

85G-82370-20-00

$34.99

15

SEAL, PLUG CAP

8V0-82372-00-00

$4.82

16

SWITCH

88H-82917-00-00

Unavailable

17

CLAMP (3Y2)

90464-16039-00

Unavailable

18

BRACKET, BATTERY

89X-2199G-00-00

Unavailable

19

COVER 3

89X-2198J-00-00

Unavailable

20

NUT, U FLANGE

95604-06200-00

Unavailable

21

BOLT, FLANGE

95812-06010-00

Unavailable

22

RESISTOR ASY

89M-85370-00-00

Unavailable

23

NUT, NYLON

95707-06300-00

$3.50

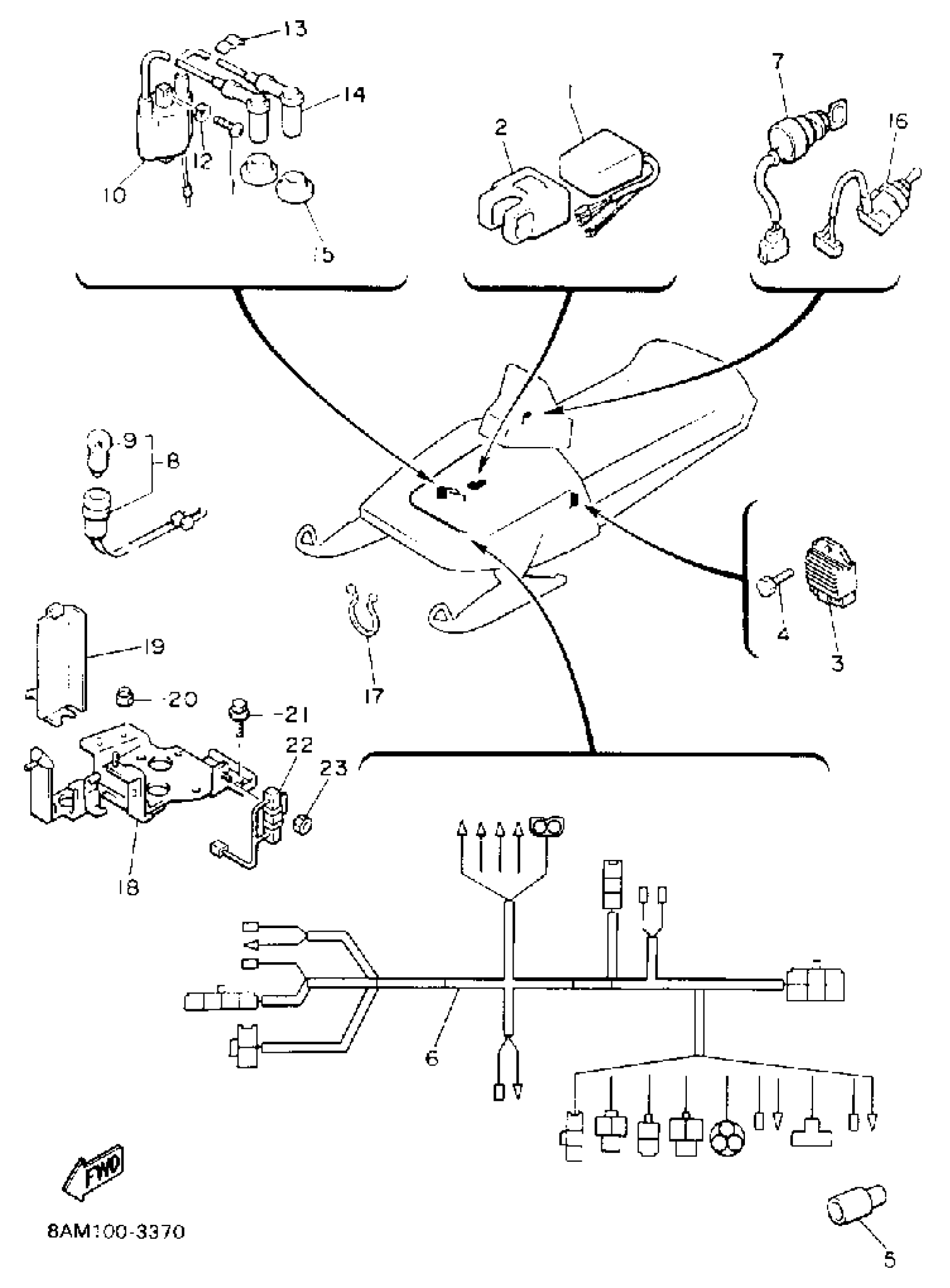

Yamaha PZ480STT (PHAZER II ST) 8AM1 1993 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSEMBLY

BAND

RECTIFIER & REGULATOR ASSY

NUT, NYLON

COVER, CONNECTER

WIRE HARNESS ASSEMBLY

MAIN SWITCH ASSY

PILOT LIGHT ASSEMBLY 1

. BULB (12V5W)

IGNITION COIL ASSY

SCREW PAN HEAD

WASHER, SPRING

CLAMP, CORD

PLUG CAP ASSY

SEAL, PLUG CAP

SWITCH

CLAMP (3Y2)

BRACKET, BATTERY

COVER 3

NUT, U FLANGE

BOLT, FLANGE

RESISTOR ASY

NUT, NYLON
