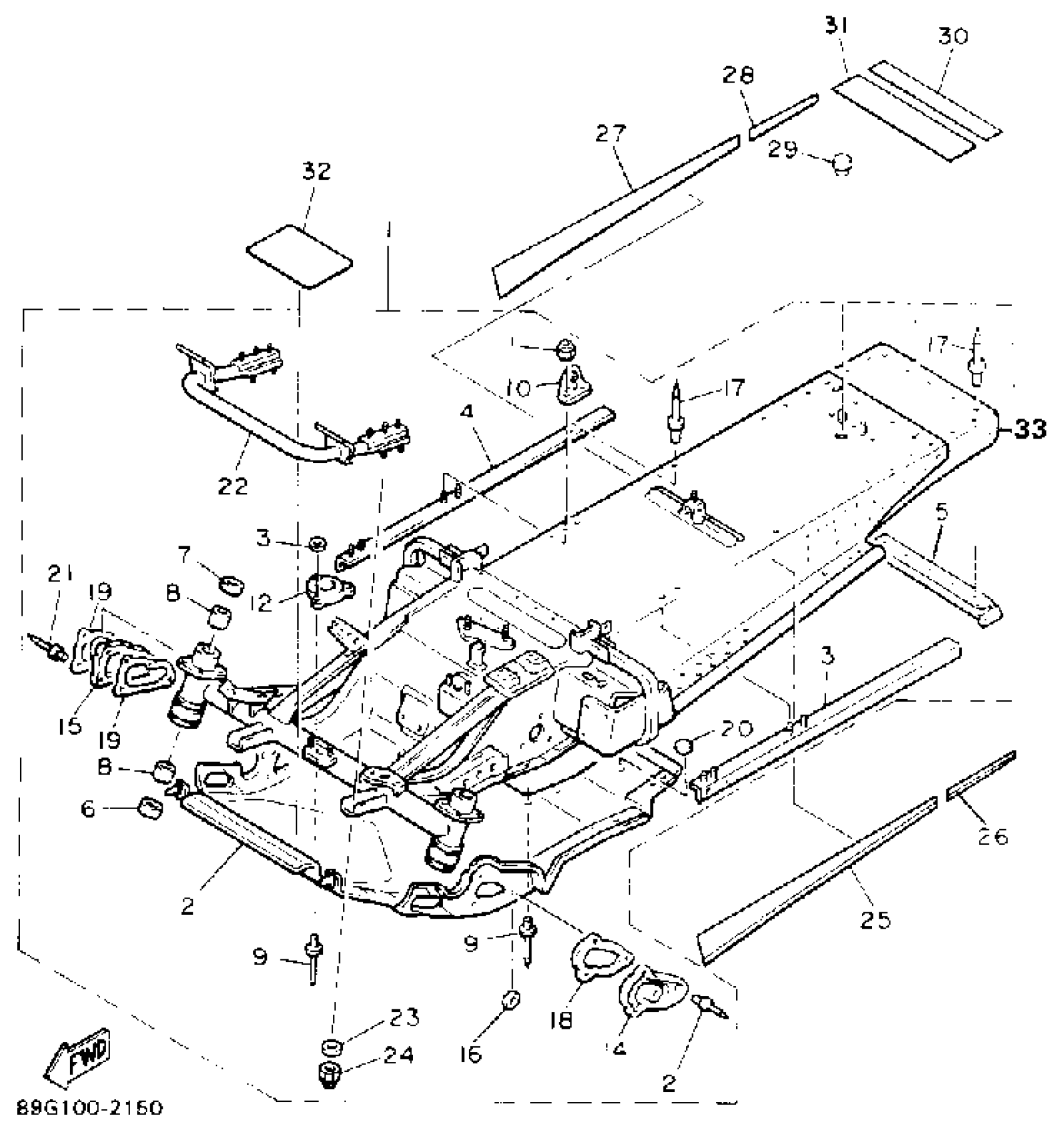

Yamaha PZ480STS (PHAZER II ST) 89G1 1992 FRAME Diagram
#
1
FRAME COMP.
89G-21910-00-00
Unavailable
2
BELLY PAN
87F-21912-00-00
Unavailable
3
. PATCH 4
88Y-21964-00-00
Unavailable
4
. PATCH 5
88Y-21965-00-00
Unavailable
5
. REINEFORCEMENT, FRAME REAR 1
88X-21923-00-00
Unavailable
6
OIL SEAL (8M6)
93103-36117-00
$21.99
7
OIL SEAL (8M6)
93102-36232-00
$11.49
8
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
$11.49
9
RIVET, BLIND
90267-48018-00
$9.49
10
. BRACKET, SEAT FITTING
8V0-21946-00-00
Unavailable
11
NUT, NYLON
95707-06300-00
$3.50
12
. SPACER
80L-21998-00-00
Unavailable
13
WASHER, PLATE
90201-04027-00
$3.02
14
COVER 1
8M6-2198F-00-00
$31.99
15
. COVER 2
80L-2198G-00-00
Unavailable
16
WASHER, PLATE
90201-04027-00
$3.02
17
. RIVET
90266-04019-00
Unavailable
18
SPACER
8M6-21998-00-00
Unavailable
19
. WASHER 2
80L-77526-00-00
Unavailable
20
SPACER
80F-21998-00-00
Unavailable
21
RIVET, BLIND
90267-40029-00
Unavailable
22
. BUMPER, FRONT 2
87F-77512-00-00
Unavailable
23
WASHER, PLATE (3Y6)
90201-083A6-00
Unavailable
24
NUT, NYLON
95717-08300-00
Unavailable
25
EMBLEM 1
89F-77351-00-00
Unavailable
26
EMBLEM 3
89H-77353-00-00
Unavailable
27
EMBLEM 2
89H-77352-00-00
Unavailable
28
EMBLEM 4
89H-77354-00-00
Unavailable
29
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
30
LABEL, WARNING 2
88X-77762-10-00
Unavailable
31
EMBLEM 1
88X-77351-00-00
Unavailable
32
SHIELD, HEAT
87F-2199H-00-00
Unavailable
33
. PANEL, SUB FRAME 5
88X-21916-00-00
Unavailable
