- PZ480STR (PHAZER II ST) 88X1 1991
TRACK DRIVE 2

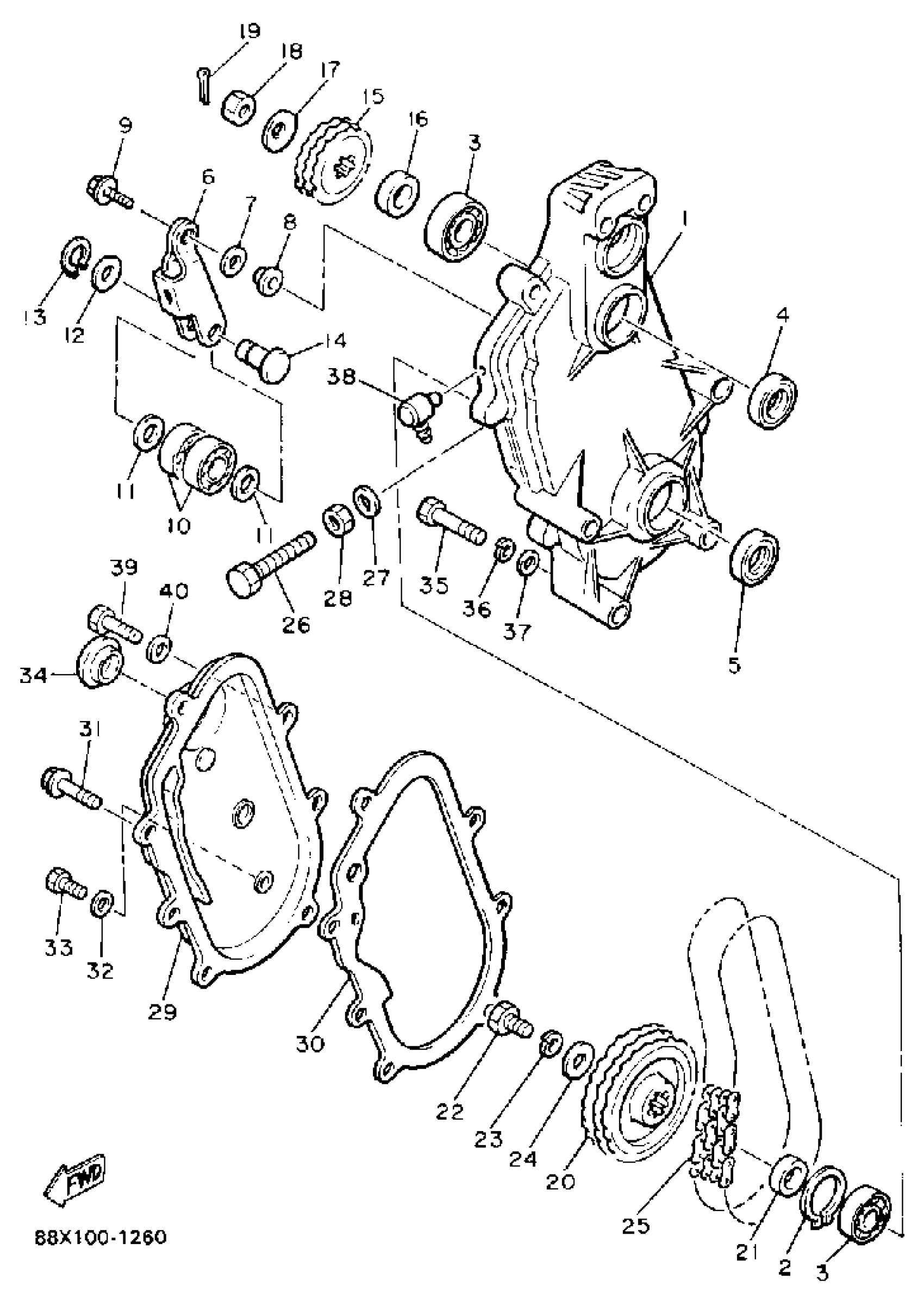

Yamaha PZ480STR (PHAZER II ST) 88X1 1991 TRACK DRIVE 2 Diagram
#
1
HOUSING, CHAIN
8V0-47541-01-00
Unavailable
2
CIRCLIP(26H)
99009-52500-00
$12.49
3
BEARING (80N)
93306-20570-00
Unavailable
4
OIL SEAL (8K4)
93102-27204-00
$16.99
5
OIL SEAL (25X44X6-810)
93102-25081-00
$5.60
6
HOLDER
(8K4-47613-02-00)
Unavailable
7
.. WASHER, PLATE
92990-08600-00
Unavailable
8
COLLAR (8K4)
90387-08301-00
Unavailable
9
BOLT, FLANGE
(95821-08022-00)
Unavailable
10
BRG.
93306-30101-00
$36.99
11
WASHER, PLATE (10X)
90201-124F8-00
$9.49
12
WASHER, PLATE (583)
90201-12631-00
$9.49
13
CIRCLIP(10Y)
99009-12400-00
$3.59
14
PIN(86P)
90249-12216-00
Unavailable
15
SPROCKET, CHAIN DRIVE (16T)
88F-17682-60-00
Unavailable
15
SPROCKET, CHAIN DRIVE (17T)
88F-17682-70-00
Unavailable
16
COLLAR
90387-250K3-00
Unavailable
17
WASHER (853)
90208-20008-00
Unavailable
18
NUT, HEXAGON (8F3)
90170-20211-00
Unavailable
19
PIN, COTTER
91490-30030-00
Unavailable
20
SPROCKET, CHAIN DRIVEN (33T)
88F-47587-00-00
Unavailable
20
SPROCKET, CHAIN DRIVEN (35T)
88F-47587-20-00
Unavailable
21
COLLAR
90387-256V3-00
Unavailable
22
BOLT
98022-10025-00
Unavailable
23
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
24
WASHER PLATE (3L6)
90201-10742-00
Unavailable
25
CHAIN (66L)
94860-01066-00
Unavailable
26
BOLT, HEXAGON (8F3)
90101-10357-00
Unavailable
27
WASHER SEAL 256111730200
90210-10004-00
Unavailable
28
NUT (682)
95380-10700-00
Unavailable
29
CAP, HOUSING
8V0-47543-00-00
Unavailable
30
GASKET
86F-47592-01-00
Unavailable
31
BOLT, FLANGE
95822-06025-00
Unavailable
32
WASHER, SEAL (7G5)
90210-06006-00
Unavailable
33
BOLT(3JP)
97017-06010-00
Unavailable
34
PLUG(83R)
90338-30219-00
Unavailable
35
BOLT
97021-08065-00
Unavailable
36
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
37
.. WASHER, PLATE
92990-08600-00
Unavailable
38
BREATHER
583-15371-00-00
Unavailable
39
BOLT, HEXAGON
97017-06025-00
Unavailable
40
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
