- PZ480STR (PHAZER II ST) 88X1 1991
PRIMARY SHEAVE

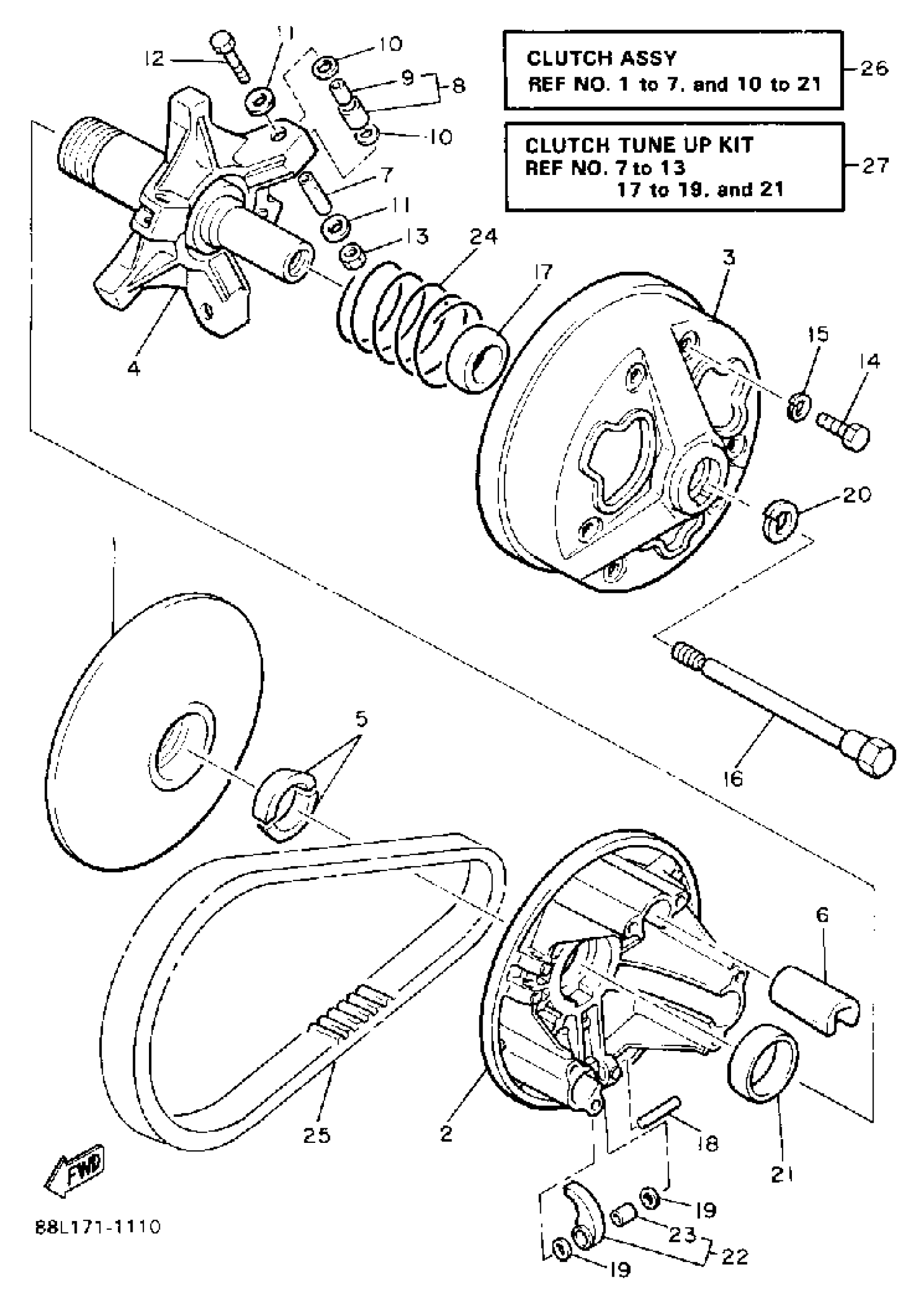

Yamaha PZ480STR (PHAZER II ST) 88X1 1991 PRIMARY SHEAVE Diagram
#
1
SHEAVE, PRIMARY FIXED
84J-17611-00-00
Unavailable
2
. SHEAVE, PRIMARY SLIDING
8V0-17621-01-00
Unavailable
3
CAP
8V0-17631-00-00
Unavailable
4
SPIDER COMPLETE
82M-17640-02-00
Unavailable
5
STOPPER
8V0-17639-00-00
$14.99
6
SLIDER
88X-17653-00-00
$14.49
7
COLLAR(83R)
90387-057W5-00
$14.99
8
ROLLER, WITH BUSH
87M-W176B-10-00
$46.99
9
BUSH(83R)
90386-08166-00
$23.99
10
WASHER, PLATE(87G)
90202-08205-00
$8.49
11
WASHER, PLATE(83R)
90201-050P9-00
$10.49
12
BOLT, HEXAGON
97027-05035-00
Unavailable
13
NUT, U
95617-05100-00
$9.49
14
BOLT, HEXAGON
97017-06030-00
$3.61
15
WASHER, SPRING
92995-06100-00
Unavailable
16
BOLT (L=156.5MM)
8V0-17647-10-00
Unavailable
17
BUSH(83R)
90389-28032-00
Unavailable
18
PIN, DOWEL (8V8)
93607-44190-00
Unavailable
19
WASHER, PLATE (8V8)
90201-077F5-00
Unavailable
20
WASHER(JN5)
92907-16100-00
Unavailable
21
BUSH (81H)
90389-40029-00
Unavailable
22
WEIGHT, WITH BUSH
87M-W176A-00-00
Unavailable
22
WEIGHT, WITH BUSH
8V0-W176A-00-00
Unavailable
23
BUSH(83V)
90386-07152-00
Unavailable
23
. WEIGHT BUSH VESPEL
90386-07174-00
Unavailable
24
SPRING, COMPRESSION
90501-45534-00
Unavailable
24
SPRING, COMPRESSION
90501-55485-00
Unavailable
25
V-BELT
89X-17641-01-00
Unavailable
26
CLUTCH REPAIR KIT
89X-17601-09-00
Unavailable
27
CLUTCH TUNE-UP KIT (K)
89X-00000-50-00
Unavailable
