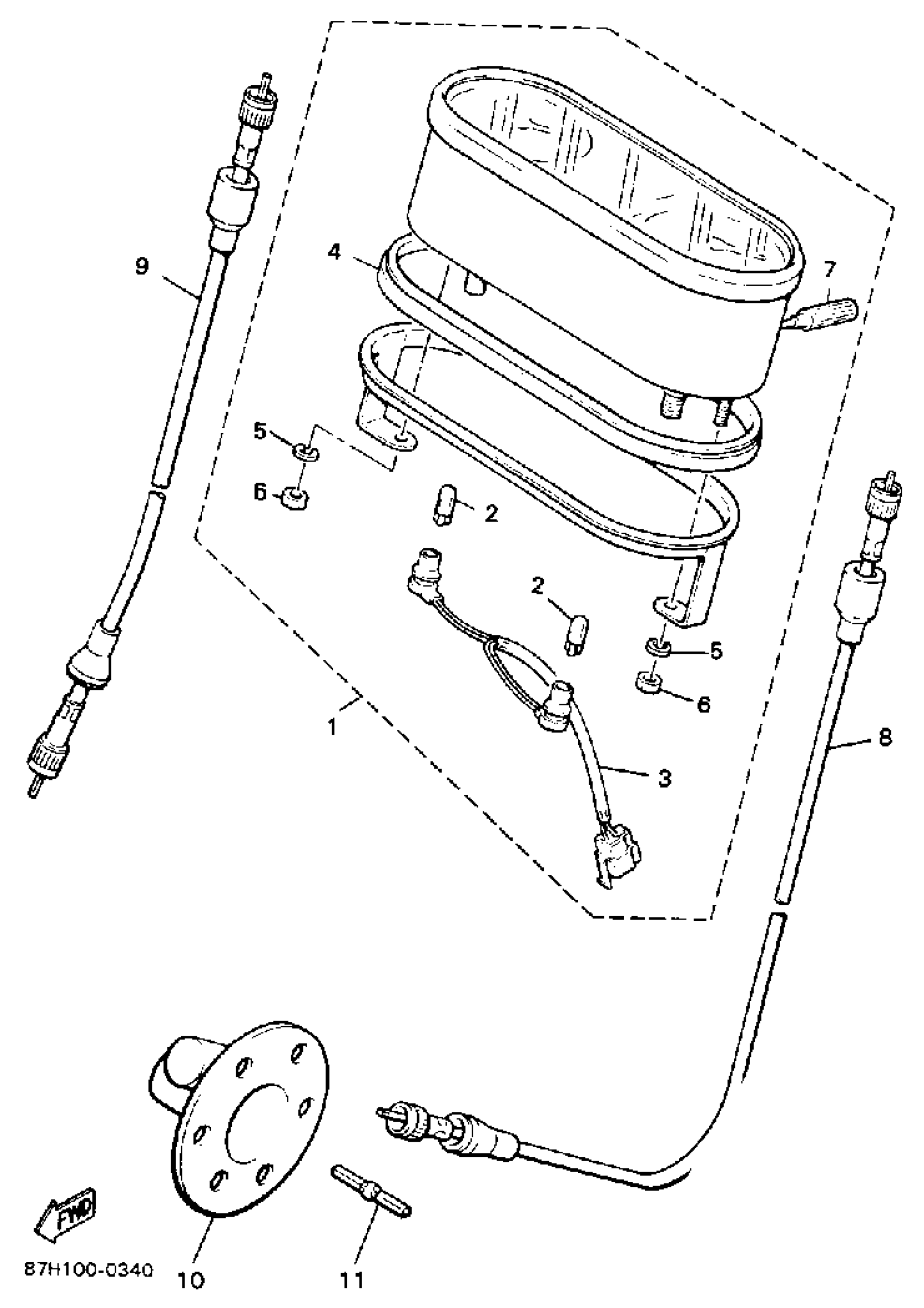

Yamaha PZ480STR (PHAZER II ST) 88X1 1991 METER Diagram

#

Description

Price

1

SPEEDOMETER ASSEMBLY (MILE/H)

87F-83500-40-00

Unavailable

2

BULB, MTR.12V3.4W

4G1-84744-00-XX

$2.64

3

. SOCKET, METER

8U9-83536-00-00

Unavailable

4

. DAMPER

8K4-83513-00-00

Unavailable

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

NUT, HEXAGON (663)

95380-05600-00

$6.08

7

. KNOB, TRIP METER

8L8-83578-00-00

Unavailable

8

SPEEDOMETER CABLE ASSEMBLY

8K4-83550-00-00

Unavailable

9

TACHOMETER CABLE ASSEMBLY

8A1-83550-02-00

Unavailable

10

METER GEAR HOUSING COMP.

8L8-47700-00-00

Unavailable

11

JOINT

8K4-47715-00-00

$4.29
