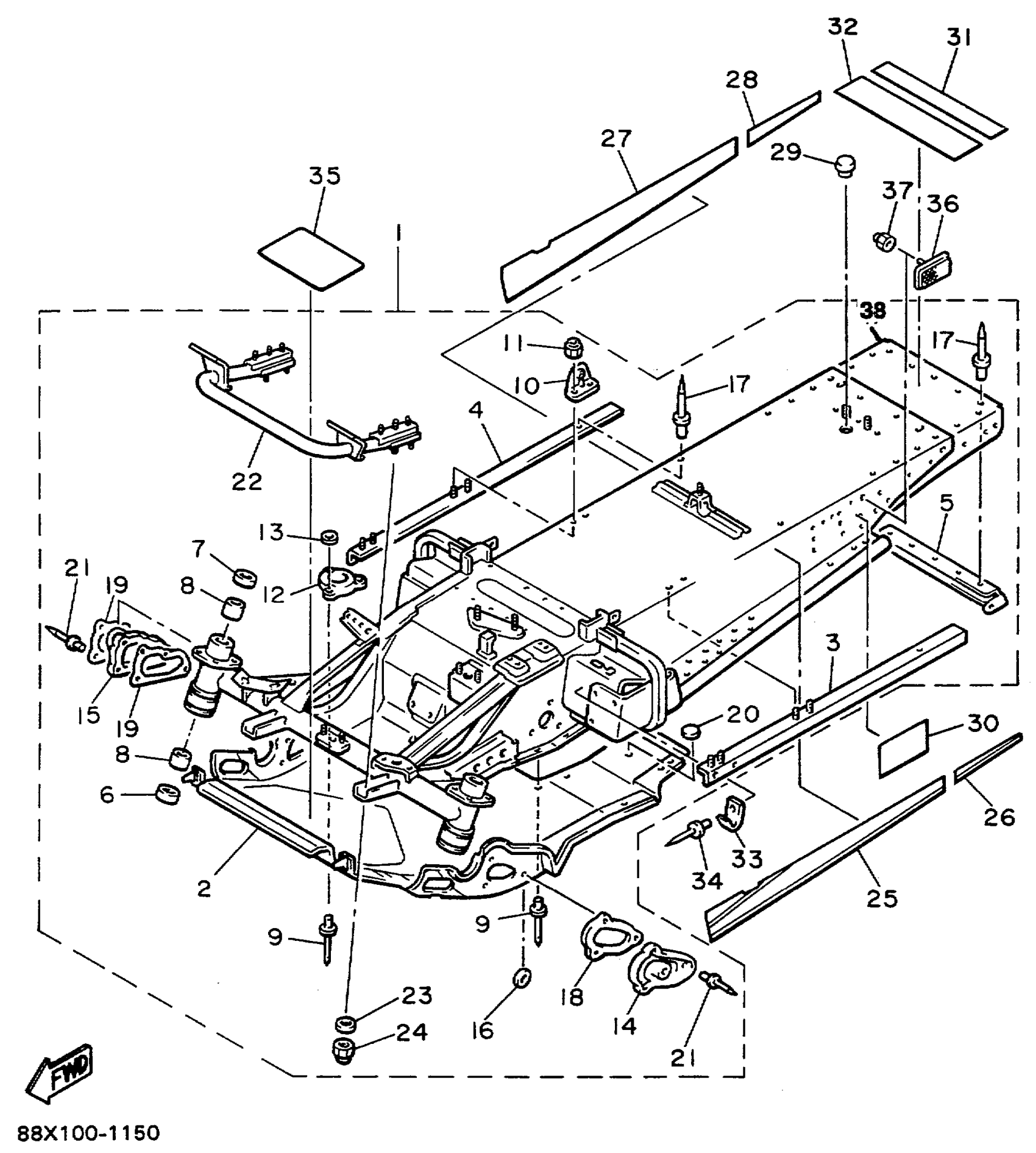

Yamaha PZ480STR (PHAZER II ST) 88X1 1991 FRAME Diagram
#
1
FRAME
88X-21910-00-00
Unavailable
2
BELLY PAN
87F-21912-00-00
Unavailable
3
. PATCH 4
88Y-21964-00-00
Unavailable
4
. PATCH 5
88Y-21965-00-00
Unavailable
5
. REINEFORCEMENT, FRAME REAR 1
88X-21923-00-00
Unavailable
6
OIL SEAL (8M6)
93103-36117-00
$21.99
7
OIL SEAL (8M6)
93102-36232-00
$11.49
8
BUSH, BIMETAL FORMED (8M6)
90384-36134-00
$11.49
9
RIVET, BLIND
90267-48018-00
$9.49
10
. BRACKET, SEAT FITTING
8V0-21946-00-00
Unavailable
11
NUT, NYLON
95707-06300-00
$3.50
12
. SPACER
80L-21998-00-00
Unavailable
13
WASHER, PLATE
90201-04027-00
$3.02
14
COVER 1
8M6-2198F-00-00
$31.99
15
. COVER 2
80L-2198G-00-00
Unavailable
16
WASHER, PLATE
90201-04027-00
$3.02
17
. RIVET
90266-04019-00
Unavailable
18
SPACER
8M6-21998-00-00
Unavailable
19
. WASHER 2
80L-77526-00-00
Unavailable
20
SPACER
80F-21998-00-00
Unavailable
21
RIVET, BLIND
90267-40029-00
Unavailable
22
. BUMPER, FRONT 2
87F-77512-00-00
Unavailable
23
WASHER, PLATE (3Y6)
90201-083A6-00
Unavailable
24
NUT, NYLON
95717-08300-00
Unavailable
25
EMBLEM 1 (FOR WHITE)
88F-77351-00-00
Unavailable
26
EMBLEM 3 (FOR WHITE)
88F-77353-00-00
Unavailable
27
EMBLEM 2 (FOR WHITE)
88F-77352-00-00
Unavailable
28
EMBLEM 4 (FOR WHITE)
88F-77354-00-00
Unavailable
29
ORNAMENT, INSTRUMENT PANEL 2
810-77716-00-00
Unavailable
30
INDICATOR 2
8K2-77742-00-00
Unavailable
31
LABEL, WARNING 2
88X-77762-10-00
Unavailable
32
EMBLEM 1
88X-77351-00-00
Unavailable
33
CLAMP(83R)
90461-08113-00
Unavailable
34
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
35
SHIELD, HEAT
87F-2199H-00-00
Unavailable
36
REAR REFLECTOR ASSY
3Y6-85130-02-00
Unavailable
37
NUT, NYLON
95707-05300-00
Unavailable
38
. PANEL, SUB FRAME 5
88X-21916-00-00
Unavailable
